Specifications come from Franke's Manor House 2.0 spec sheet, its 2025–2026 Canadian catalog and its fireclay installation manual (linked at the end). Where a detail is not in a Franke document, we say so.
A fireclay farmhouse sink is a beautiful thing and an unforgiving one. It is heavy, it is not perfectly uniform from one sink to the next, and it wants a cabinet built for it. Most of the frustration buyers report comes from finding that out after the sink is ordered. This guide is the pre-purchase checklist for the Franke Manor House 2.0 MH2K7201414-GWH : what size cabinet it needs, what the ±2% tolerance means, what is not in the box, and how to plan for the weight.
Quick answer

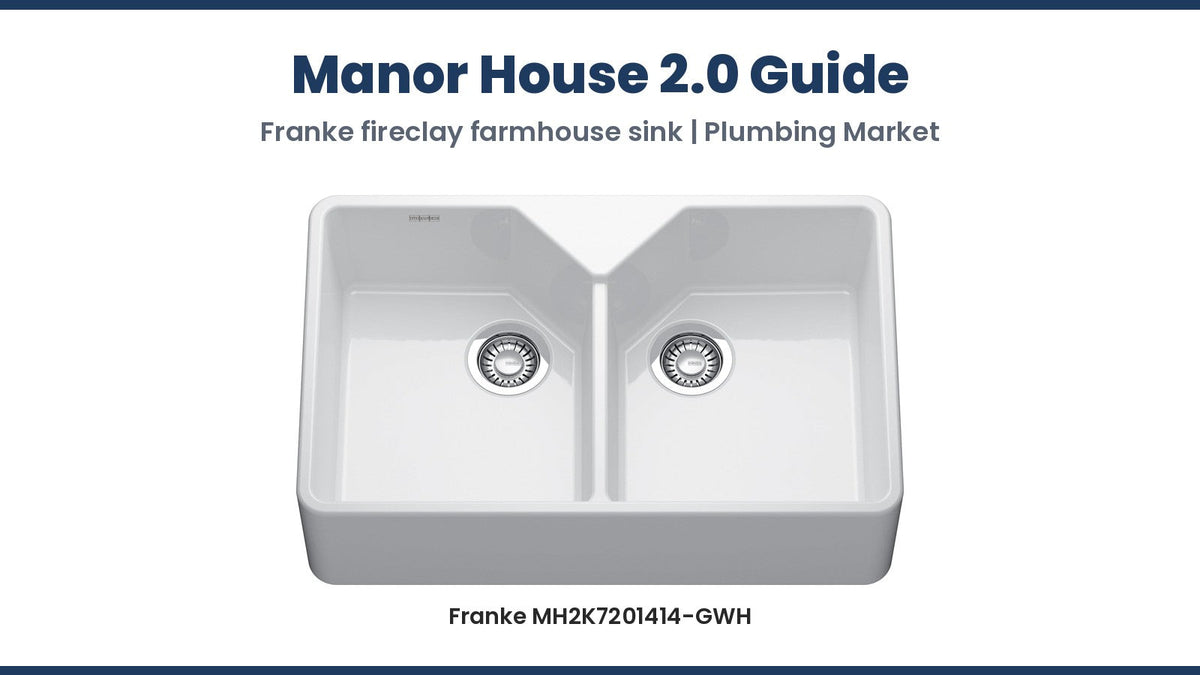

- The sink: Franke Manor House 2.0 MH2K7201414-GWH. White glossy fireclay (ceramic), double bowl, apron front. 31-1/4" x 19-1/4" x 8-5/8" overall, two equal bowls 14-3/8" x 17-1/2" x 7-5/8" deep.
- Cabinet: Franke lists a 33" minimum. Franke also says installation requires custom cabinetry and recommends an experienced cabinet maker.
- Weight: 82 lbs. Franke advises using assistance to lift it.
- Tolerance: dimensions may vary by ±2% because of material and firing. No cut-out template is supplied. Give your cabinet maker the actual sink.
- Not included: the 1145 strainer basket, sold separately. A pop-up strainer is not compatible.
- Support: Franke recommends a wood support frame designed for at least 300 lbs for undermount installs.
Jump to: Is fireclay for you? · Cabinet size · The ±2% tolerance · Weight and support frame · What is and isn't included · Freight and delivery · Installation planning · Care · Who should buy which · FAQ
Is a fireclay farmhouse sink right for your kitchen?
Franke describes the Manor House 2.0 as a traditional apron bowl with clean square lines for a modern twist. The bowls are large, the surface is described as hygienic, easy to clean and having high chipping resistance, and the apron front means you stand directly at the basin with no cabinet rail in between. That is the appeal.
The trade-offs are real:
- It weighs 82 lbs, and it does not sit in a standard cabinet without work.
- It varies in size from one sink to the next.
- The cabinet, the countertop cut and the support frame all have to be planned around the sink in your hands, not the drawing.
- Installation is more work than for a stainless steel undermount, and Franke recommends a cabinet maker.
If you are replacing a sink with no other renovation and want to keep your cabinets, a stainless or Fragranite sink is usually easier. Our comparison, Franke Maris Fragranite vs stainless vs fireclay, shows the differences. If you are already building or re-doing the cabinets, read on.
Cabinet size: what "33-inch minimum" actually means
Franke lists a minimum cabinet size of 33" for the Manor House 2.0. The sink is 31-1/4" wide overall, so you need at least a 33" base cabinet, which is the standard nominal size, and a bigger cabinet is fine. Here is the rest of the fit information from Franke:
| Franke spec | Manor House 2.0 MH2K7201414-GWH |
|---|---|
| Overall size | 31-1/4" x 19-1/4" x 8-5/8" (spec sheet); 31-1/4" x 19-1/4" x 8-5/8" (catalog) |
| Bowl size (each, equal) | 14-3/8" x 17-1/2" (spec sheet); bowl depth 7-5/8" |
| Minimum cabinet size | 33" |
| Installation type | Undermount apron front (Franke’s product page also lists flushmount) |
| Weight | 82 lbs |
| Faucet | One pre-scored faucet hole, and a faucet ledge (Franke Canada product page) |
| Overflow | None |
| Warranty | Limited lifetime |
| Certification | IAPMO (Franke product page) |
What is not in the spec: Franke's spec sheet does not give the apron face height or the exact reveal. If your drawer fronts or countertop edge depend on them, ask us to check with Franke before you order.
Cabinet checklist
- Measure the interior width of the sink base cabinet, not the outside. It must be at least 33".
- Plan to remove or cut the cabinet's front rail and build a support inside. Franke's manual shows a wood frame of 2x4 lumber with 1/2" plywood, with about 7" of gap beneath for drain fittings.
- Do not order the countertop cut-out from a drawing. Franke says no templates are supplied because each sink varies. Have the sink on site before any cut is made to the countertop.
- Check your faucet: decide whether the faucet mounts on the sink's ledge or on the countertop behind it. Franke's manual describes drilling faucet holes in the ledge, and says the sink's underside is prepared with an undercut for faucet and fitting holes.
- Check plumbing: the strainer is 3-1/2" (Franke lists a 3-1/2" drain hole) and it isn't included. See What is and isn't included.
The ±2% firing tolerance
Franke's spec sheet for the Manor House 2.0 says: "Dimensions may vary by 2% (plus or minus), due to material attributes and firing process. Sink color may vary between each model." The Franke catalog repeats it for every Manor House and Farm House model.
What that means in practice:
| Dimension | Published size | 2% either way (arithmetic) |
|---|---|---|
| Overall width | 31-1/4" | about 5/8" (roughly 30-5/8" to 31-7/8") |
| Overall depth | 19-1/4" | about 3/8" |
| Bowl width | 14-3/8" | about 1/4" |
The sums are ours; Franke publishes only the ±2% figure.This is why Franke asks you to give the cabinet maker the actual sink, and why you should not cut the countertop until the sink is delivered and checked. Colour can also vary slightly between sinks, which matters if you are matching a second white fixture.
What to do about it:
- Have the sink delivered first. Inspect it before anything is cut.
- Give the cabinet maker and countertop fabricator the sink, or measure it on site.
- Leave room in the framing, and use shims and the silicone bead Franke describes to seat the sink level.
Weight and the support frame
Franke lists the MH2K7201414-GWH at 82 lbs. Franke's fireclay installation manual gives two rules worth quoting:
- Fireclay sinks vary from 20 to over 130 pounds depending on configuration, so use assistance to lift the sink.
- To avoid damage, Franke recommends a wood frame designed to support at least 300 pounds. It says this is the weight of an average fireclay sink filled to capacity, including provision for extra loading from a waste disposer. The frame is not required for drop-in installs where the sink rim sits on top of the countertop.
For comparison, on Franke's spec sheets the Maris Fragranite sink in the same size class weighs 40 lbs, and the Kindred stainless undermounts we compare weigh 9.3 to 15.6 lbs. Franke says to use assistance when lifting a fireclay sink.
What is and isn't included
| Item | Included with sink? | Franke part |
|---|---|---|
| Sink | Yes | MH2K7201414-GWH |
| Strainer basket | No. Franke says no waste kit is included | 1145 (chrome), 1145SN (satin nickel) |
| Pop-up strainer | Not compatible (Franke) | – |
| Bottom grid | Optional | MH12-36S-LH (left hand), MH12-36S-RH (right hand) |
| Cutting board | Optional, for countertop use | OA-40S |
| Faucet | Not included. Sink has one pre-scored faucet hole | Choose separately |
| Installation manuals | Franke publishes three manuals: apron front, flushmount, undermount | – |
The point about the strainer is easy to miss. Many stainless sinks include a basket, and the Maris -S model includes the 1145, but the Manor House 2.0 does not. Add the 1145 to the order so the sink is not stuck waiting on a part. Browse the kitchen sink accessories collection for sink accessories.
Freight and delivery
Our product page says this sink ships by freight rather than as a small parcel, with shipping calculated at checkout. We do not have a published packaged weight, crate size or delivery terms from Franke, so ask us before ordering if delivery access at your address matters (stairs, a condo elevator, a narrow entry). Franke's instructions say to unpack the sink and inspect it for shipping damage before starting installation, and not to install a damaged sink. So the sensible plan is:
- Have someone at the address to receive it, and check the packaging before signing.
- Open it and inspect it before your installer arrives. Note any damage straight away.
- Only then schedule the cabinet and countertop work.
Plan cabinet and countertop work to start after the sink has arrived, not before.
Installation planning
This is not a step-by-step installation guide: follow the manual supplied with the sink and your installer's judgement. Franke publishes separate manuals for apron front, flushmount and undermount installation on the Manor House 2.0 product page. The main points from Franke's fireclay manual:
- Custom cabinetry. The manual says installation requires it, and recommends an experienced cabinet maker.
- Support frame. Build a wood frame, sized for at least 300 lbs, in the sink base at the height needed so the sink rim sits correctly under the countertop.
- Measure the actual sink. Take dimensions from the sink itself.
- Faucet holes. If drilling the ledge, Franke describes marking with masking tape, centre punching, then a pilot hole with a masonry drill and a 1-3/8" diamond hole saw. Do this before installing the sink.
- Fit strainers and faucet first. Franke recommends installing the strainer and faucet while the sink is accessible from all sides and resting on the floor or a bench.
- Seat and seal. Place the sink on the frame, shim to level, apply a bead of translucent silicone, and connect the drain and supplies.
- Liability. Franke's manual says Franke and Franke Kindred Canada accept no liability for damage to the countertop or sink during installation.
A cabinet maker, or a kitchen installer who has done farmhouse sinks, is the right person to talk to before you order. Ask them to review the spec sheet and this article.
Care
Franke says the fireclay finish sets new standards for easy care. For everyday cleaning, use a soft, non-scratching sponge or cloth. Liquid soap or a vinegar-based cleaner is ideal, especially in hard-water areas. For stubborn stains, cover with a paper towel soaked in vinegar and leave overnight. Franke's manual lists cleaning agents that may scratch the ceramic surface, so check the manual before using anything abrasive.
Who should buy which
| If this describes you | Better fit | Why |
|---|---|---|
| Building or renovating a kitchen with a cabinet maker | Manor House 2.0 | Custom cabinetry and support frame are already part of the job. |
| Want a double-bowl farmhouse sink with square lines | Manor House 2.0 | Two equal 14-3/8" x 17-1/2" bowls, apron front. |
| Keeping existing cabinets and cutout | Stainless or Fragranite undermount | Farmhouse sinks need custom cabinetry. |
| Base cabinet narrower than 33" | A different sink | 33" is Franke’s minimum. |
| Cannot arrange help lifting or a support frame | Stainless or Fragranite | 82 lbs and a 300-lb frame recommendation. |
| Need a colour other than white | Fragranite Maris | Manor House 2.0 is white only. |
| Want the sink to be interchangeable with a template | Not a fireclay sink | No template; dimensions vary by 2%. |
Buying from Plumbing Market
We ship across Canada. Send us your cabinet's interior width, your countertop material and your faucet choice at sales@plumbingmarket.ca or call 289-236-2378, and we will check them against Franke's spec sheet before you order.
Browse the Franke collection, the Kindred collection or all kitchen sinks. Related guides: Franke Maris Fragranite vs stainless vs fireclay · Drop-in vs farmhouse sink · Shaws fireclay sinks: Lancaster vs Shaker · Kindred Steel Queen vs Reginox
Our honest recommendation
Buy the Manor House 2.0 if you have already decided on a farmhouse look and you are building the cabinet around it. It is a clean, square-cornered apron sink with two equal, deep bowls, and Franke documents its fit and installation requirements well. Don't buy it if you are hoping to drop it into existing cabinets without work, if you cannot arrange help lifting and a proper support frame, or if you want to cut the countertop from a drawing before the sink arrives.
Three things to do before you order: measure the interior width of your cabinet (33" minimum), talk to whoever is building the cabinet, and add the 1145 strainer to the order. Then wait for the sink to arrive before you cut anything.
Frequently asked questions
What size cabinet does a Franke Manor House 2.0 need?
Franke lists a 33-inch minimum cabinet size for the Manor House 2.0 MH2K7201414-GWH (31-1/4 inches wide overall). But Franke's fireclay manual says the installation requires custom cabinetry and that each sink varies dimensionally, so the cabinet is built or modified around the actual sink.
Can I put a farmhouse sink in my existing cabinets?
Sometimes, but not as a simple swap. Franke's fireclay installation manual says installation requires custom cabinetry and recommends an experienced cabinet maker build the new cabinet or modify the existing one. An apron-front sink replaces the cabinet's front rail, and the sink needs a support frame. Get a cabinet maker or installer to check your cabinet before you order.
How much does the Franke Manor House 2.0 weigh?
Franke lists the MH2K7201414-GWH at 82 lbs. Franke's manual says fireclay sinks vary from 20 to over 130 pounds depending on the configuration and asks you to use assistance when lifting.
What does ±2% tolerance mean for a fireclay sink?
Franke's spec sheet notes that dimensions may vary by 2% (plus or minus) due to material attributes and the firing process. On a 31-1/4 inch sink, 2% is about 5/8 of an inch, which is why Franke supplies no cut-out template and asks you to give the actual sink to your cabinet maker.
Does the Franke Manor House 2.0 come with a drain?
No. Franke's spec sheet lists strainer assembly 1145 as an optional accessory, and Franke's product data says no waste kit is included. Order the 1145 strainer basket separately. Franke also says a pop-up strainer is not compatible with these sinks.
What else do I need to order with a Manor House 2.0?
The 1145 strainer basket is the essential one. Franke also lists MH12-36S-LH and MH12-36S-RH bottom grids (left and right hand) and an OA-40S countertop cutting board. You also need a faucet and a plan for where it mounts: the sink has one pre-scored faucet hole on its ledge, and Franke says faucets can also mount to the countertop behind the sink.
Does a fireclay sink chip?
Franke describes the Manor House 2.0 surface as hygienic, easy to clean, with high chipping resistance.
Is fireclay the same as ceramic or porcelain?
Franke's catalog calls its product Fraceram ceramic, and its installation manual is titled 'Fireclay'. The Manor House 2.0 product page lists the material as ceramic. Franke describes the process as liquid ceramic of quartz, china clay and kaolin, injected into a mould, dried for 20 hours in a kiln at 2,200°F.
Can I use a Manor House 2.0 as an undermount or drop-in?
The Manor House 2.0 is an undermount apron-front sink; Franke's product page lists apron front, flushmount and undermount installation, with separate installation manuals for each. Franke's manual also covers farmhouse drop-in sinks, but check which applies to the sink you are ordering.
How is the Manor House 2.0 delivered, and what should I check on arrival?
Our product page says heavy items ship by freight, with shipping calculated at checkout. Franke says to unpack the sink and inspect it for shipping damage before starting installation, and not to install it if damage is evident. Check it on delivery, before your cabinet maker cuts anything.
Sources
- Franke Canada
- Franke Canada product page: Manor House 2.0 MH2K7201414-GWH
- Franke Canada catalog 2025–2026 (Fraceram, Manor House 2.0, Manor House and Farm House pages)
- Franke fireclay sink installation instructions
By Plumbing Market. Specifications are the manufacturer's. Confirm with Franke and your installer before ordering and before cutting a countertop.
