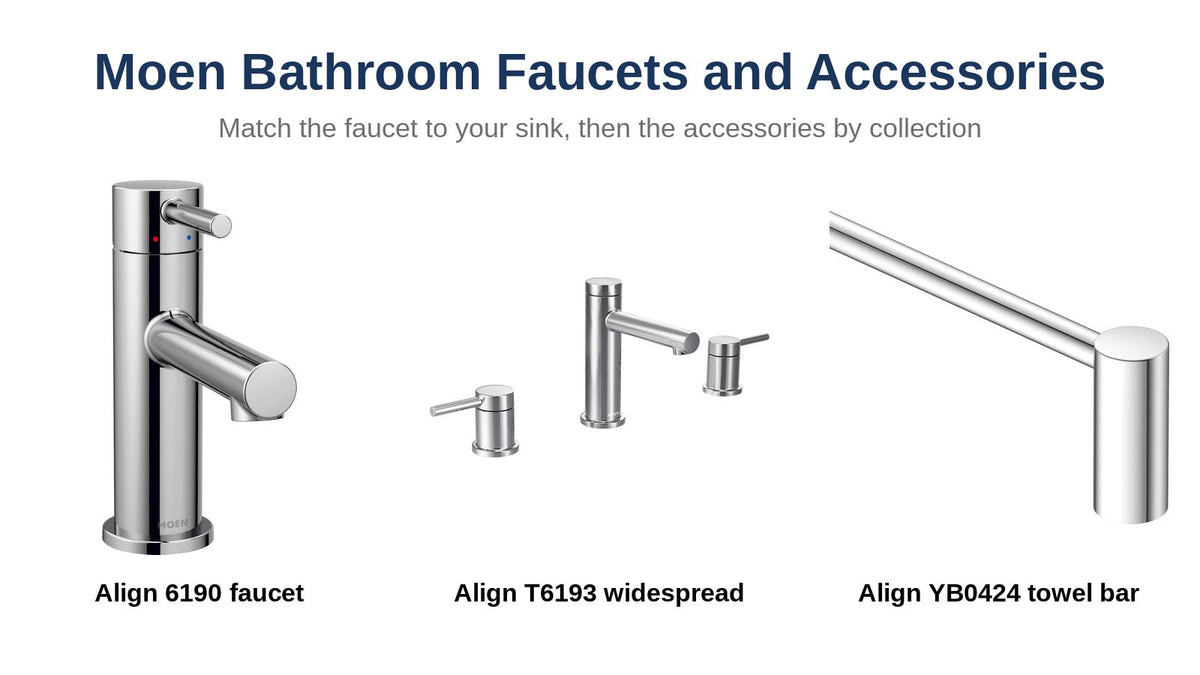

Short answer: choose the Moen bathroom faucet by the holes in your sink, then pick towel bars and hooks from the same collection. One hole, or three holes covered by a deck plate, takes a faucet such as the Moen Align 6190, whose page lists 1 or 3 holes and a metal lift rod drain. Three holes spread 8 to 16 inches apart take a widespread trim such as the Align T6193. The matching Align 24 inch towel bar, hooks and paper holder come in the same four finishes.
Plumbing Market lists the full Moen collection and 248 products in Moen bathroom accessories as of October 9, 2026. Specifications below come from our product pages and Moen's own guidance. If a page does not state a figure, we leave it out. For Moen's history, cartridges and finishes, see Make Your Kitchen and Bathroom Shine With Moen Faucets. For the warranty compared with other brands, see Are Delta Faucets Good?, which compares the two. For the kitchen sink, see our Moen kitchen faucet buying guide.
Step 1. Count the holes in the sink or counter
Moen's own lavatory guide puts it simply. A single hole takes a single-hole faucet. Three holes 4 inches apart (outside hole to outside hole, centre to centre) take a centerset. Three holes anywhere from 8 to 16 inches apart are a widespread. Moen adds that widespread models whose number starts with T are trim kits, with the valve under the counter sold separately.
| Your sink | Example on our site | What the product page states |
|---|---|---|
| 1 hole, or 3 holes with a deck plate | Align 6190 | 1 or 3 holes, deck mount, 3/8 inch compression, 5.06 inch (129 mm) reach, metal lift rod drain, 1255 Duralast cartridge |
| 1 hole, vessel bowl | Align 6192 vessel | 1 or 3 holes, 4.5 inch (114 mm) reach. Drain sold separately (Moen 140780). |
| 3 holes, 8 to 16 inch centres | Align T6193 | Two handles, 8 to 16 inch centres, 5.56 inch (141 mm) reach, metal lift rod drain, 1234 Duralast cartridge |
| No holes: supplies in the wall | Voss T6906 wall mount | Two handles, 8 inch centres, 7.37 inch (187 mm) reach, 1224 cartridge. Drain sold separately (Moen 140780). |
| Hands-free on a 1 or 3 hole sink | Cia 6221EW MotionSense Wave | Motion sensor with manual control, 1 or 3 holes, 5.5 inch (140 mm) reach, metal spring-loaded pop-up drain |
The widespread is the one that needs care. Our T6193 page lists 8 to 16 inch centres and a 1234 cartridge. Our M-Pact 9000 widespread valve page lists 8 to 16 inch centres, 1/2 inch IPS connections and the same 1234 cartridge. Neither page names the other model, so read Moen's specification sheet for the trim before you order the pair.
Step 2. Check reach, drain and connections
Spout reach decides whether the water lands in the middle of the bowl. Shallow vanities want a shorter reach; deep or vessel bowls may need more. The Align 6190 and the Eva 6400 both list 5.06 inches (129 mm). The Genta LX 6702 lists 4.56 inches (116 mm). The wall-mount Voss T6906 reaches 7.37 inches (187 mm) because it starts from the wall.
Drains are not uniform. The 6190, 6400 and 6702 pages include a metal lift rod drain. The 6192 vessel faucet and the T6906 say sold separately and name Moen 140780. Connections differ as well: the single-hole models above list 3/8 inch compression, and the 9000 widespread valve lists 1/2 inch IPS.
Only one of these pages prints a flow rate: the Eva 6400 lists 1.5 gpm (5.7 L/min) maximum at 60 psi. Others list WaterSense certification without the number, so we do not supply one. If you are on hard water, the cartridge and aerator questions are covered in Moen vs. Hard Water, and cartridge identification in How to Identify a Faucet Cartridge.
If you were searching for the Moen Korek single-handle faucet: its page lists a one-handle lever, a deck plate included, ADA compliance, WaterSense and a limited lifetime warranty.
Step 3. The tub: floor-mount, deck-mount or wall-mount
| Tub setup | Example | What the product page states |
|---|---|---|
| Freestanding tub, supplies through the floor | Align 395 floor-mount tub filler | Single handle, 9.75 inch (248 mm) reach, 1.75 gpm (6.6 L/min) maximum at 60 psi, one-function hand shower |
| Drop-in tub with 3 deck holes | Align T393 Roman tub trim | Trim only: install with the matching Moen rough-in valve (sold separately). Two handles, 3 holes, 7.9 inch (201 mm) reach. |
| Spout on the wall above the tub | Voss WT691 wall-mount tub filler trim | Single handle, 10 inch (254 mm) reach, 1/2 inch slip fit |
The T393 page says trim only and does not name the valve, so we do not name one either. Confirm it on Moen's sheet for that trim. For the shower side of the tub, the trim-and-valve pairing is covered in our companion guide on Moen shower trims and valves. General tub and shower faucet tips are in Bathtub and Shower Faucets 101.
Step 4. Accessories: match by collection, not by eye
Moen names its accessories after the faucet collections. Buy the faucet, then search the same name. Finishes inside a collection line up: the Align faucets and the Align accessories below list chrome, brushed gold, matte black and brushed nickel.
| Collection | Towel bar | Hook | Paper holder | Grab bar |
|---|---|---|---|---|
| Align | YB0424 24 inch | YB0403 single robe hook | YB0408 pivoting | YG0424 24 inch |
| Voss | YB5124 24 inch | Search Voss in the accessories collection | Search Voss | YG5124 24 inch |
| Genta LX | Search Genta LX | BH3803 single robe hook | Search Genta LX | Not shown |
| Zarina | Search Zarina | Not shown | Y6009 single-post | Not shown |
| Aspen | Search Aspen | Not shown | 5808 spring-loaded | Not shown |
The Align YB0424 page lists a 24 inch (610 mm) length, wall mount, installation template and hardware included, and a limited lifetime warranty for the original consumer. The Voss YB5124 page lists six finishes, adding polished nickel and oil rubbed bronze. More layout ideas are in The Top 7 Must-Have Bathroom Accessories.
Grab bars are safety hardware
The Align YG0424, Voss YG5124 and Home Care 8724 pages each say rated to support up to 500 lb (227 kg) when installed into studs or approved anchors, with a 1.25 inch bar diameter. The Align and Home Care pages add that they work with Moen SecureMount anchors where there is no stud. Do not hang weight on a towel bar; it carries no such rating on its page.
Who should buy which
| If you have… | Start with | Why, from the page |
|---|---|---|
| A single-hole vanity or a 3-hole top with a deck plate | Align 6190 | 1 or 3 holes, drain included |
| A vessel bowl | Align 6192 | Vessel faucet; buy drain 140780 separately |
| Three holes 8 to 16 inches apart | Align T6193 with the valve named on Moen's sheet | Trim kit; widespread centres |
| Supplies in the wall, no deck holes | Voss T6906 | Wall mount, 8 inch centres |
| Kids or guests who leave taps running | Cia 6221EW | Motion sensor with manual control |
| A freestanding tub | Align 395 | Floor mount with hand shower |
| A need for a secure handhold | Align YG0424 or Home Care 8724 | 500 lb rating into studs or approved anchors |
Frequently asked questions
Which Moen bathroom faucet fits my sink?
Count the holes and measure the outer two. One hole, or three holes with a deck plate, takes a faucet listed for 1 or 3 holes, such as the Align 6190. Three holes 8 to 16 inches apart take a widespread trim such as the Align T6193. Moen says T-prefix widespread models are trim kits sold separately from the valve underneath.
Does a Moen widespread faucet include the valve?
Moen says widespread models whose number starts with T are trim kits, with the valve sold separately. Our T6193 page lists 8 to 16 inch centres and a 1234 cartridge. Our 9000 widespread valve page lists 8 to 16 inch centres and the same 1234 cartridge. Neither page names the other, so confirm the pairing on Moen's specification sheet before ordering.
Do Moen bathroom faucets come with a drain?
It depends on the model. The Align 6190, Eva 6400 and Genta LX 6702 pages each list a metal lift rod drain. The Align 6192 vessel faucet and the Voss T6906 wall-mount pages say the drain is sold separately and name Moen 140780.
What flow rate is a Moen bathroom faucet?
Only quote what the page lists. The Eva 6400 page lists 1.5 gpm (5.7 L/min) maximum at 60 psi. Several other pages list WaterSense certification without printing the gpm figure.
How do I match Moen accessories to my faucet?
Match by collection name. Align has a 24 inch towel bar (YB0424), robe hooks, a pivoting paper holder and designer grab bars in the same four finishes as the Align faucets: chrome, brushed gold, matte black and brushed nickel.
How much weight do Moen grab bars hold?
The Align YG0424, Voss YG5124 and Home Care 8724 pages each say rated to 500 lb (227 kg) when installed into studs or approved anchors. A towel bar is not a grab bar.
What warranty do Moen bathroom faucets have?
The faucet pages linked here list a limited lifetime warranty for the original consumer. The MotionSense Wave model uses electronics; read the current Moen terms for the electronic parts before you buy.
Honest close
Moen's bathroom line is large, and a 3-hole sink can be a centerset or a widespread. Measure before you choose a finish. We did not pair the T6193 or the T393 trim with a valve, because neither page names one. We also did not quote flow rates that the pages do not print. If you want a leak sensor behind the vanity as well, Moen's Flo devices are covered in Smart Leak Detection With Flo by Moen. For a specific model, call 289-236-2378 or email sales@plumbingmarket.ca, and read the current product page before you order.
By Plumbing Market. Specifications from the Plumbing Market product pages linked above and Moen's published lavatory faucet guidance, checked October 9, 2026.
