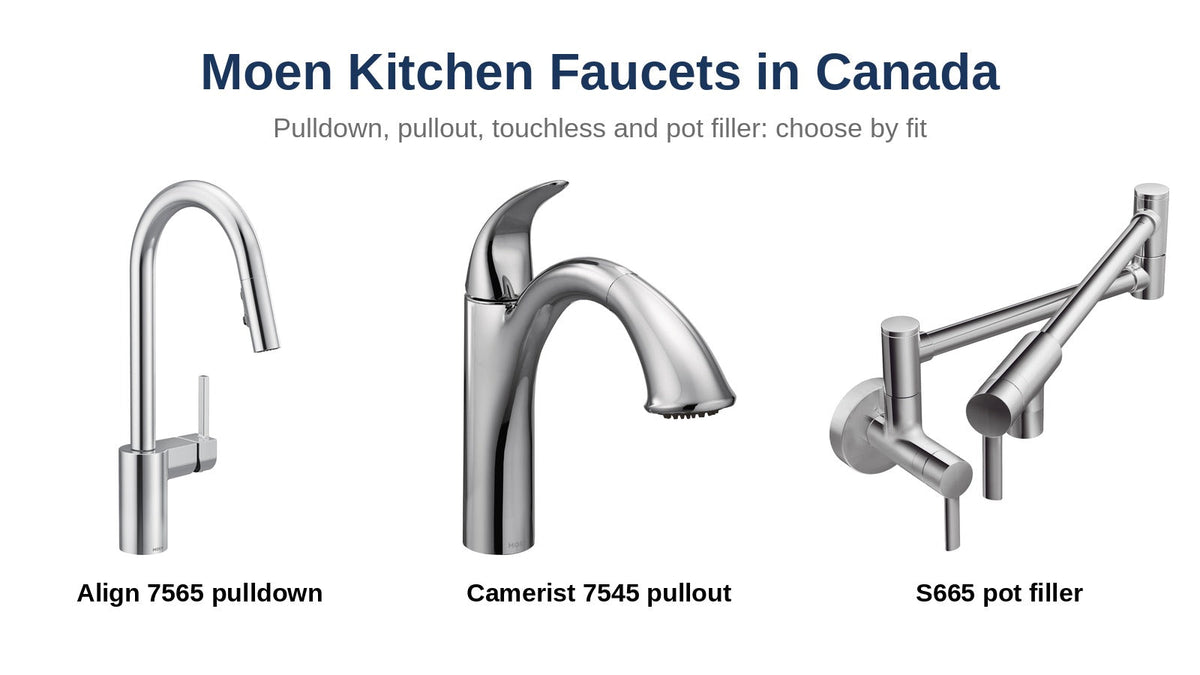

Short answer: pick a Moen kitchen faucet by the holes in your sink, the space above it, and how you clean. For most GTA kitchens with one hole and open space above the sink, a high-arc pulldown such as the Moen Align 7565 is the starting point. Its page lists a 15.7 inch (399 mm) spout height, a 68 inch hose, 1.5 gpm (5.7 L/min) and Moen Power Clean spray. Under a low cabinet or window, a pullout such as the Camerist 7545 (12 inch spout height) fits better.
Plumbing Market lists 160 products in Moen kitchen faucets inside the full Moen collection as of October 9, 2026. Specifications below are copied from our product pages. Where a page does not list a figure, we leave it blank. Moen's history and finish care are already covered in Make Your Kitchen and Bathroom Shine With Moen Faucets, so this guide sticks to choosing a model. Faucet-type basics for any brand are in How to Choose the Best Kitchen Faucet for Your Home.
Step 1. Count the holes in the sink or counter
| Holes | Example | What the product page states |
|---|---|---|
| 1 (3 with an escutcheon) | Align 7565 | 1 hole, 1-1/2 inch (38 mm) minimum; optional 3-hole escutcheon 141002 |
| 1 or 3 | Mikah 87069 | 1 or 3 holes, 1-1/2 inch (38 mm) minimum |
| 1, 2 or 3 | Brantford 7295 pullout | 1, 2 or 3 holes, 1-1/2 inch (38 mm) minimum |
| 3 | Weymouth S73204 two-handle pulldown or Chateau 7425 | 3 holes |
| 4 | Belfield 7255 two-handle | 4 holes, 1/2 inch IPS, 1234 cartridge |
| 1 to 4 | Sarai 87836 | 1, 2, 3 or 4 holes; 2-1/2 inch (63.5 mm) maximum deck thickness |
Many older kitchens in Toronto and the GTA still have a 3- or 4-hole sink left over from a two-handle faucet and side spray. You can keep a two-handle look, as with the Belfield 7255 on 4 holes. Or choose a single-hole model that lists an escutcheon or a multi-hole range and cover the extra holes. A spare hole can also take a soap dispenser such as the Moen S3948. Its page lists a 1-1/8 inch hole, refilling from above the counter and an 18 oz (532 mL) bottle.
Step 2. Measure the space above the sink
Spout height decides whether the faucet clears the cabinet, shelf or window. These are the heights the pages list:
| Model | Type | Spout height | Spout reach |
|---|---|---|---|
| Chateau 7425 | Low-arc, no wand | 8.5 in (216 mm) | 9.13 in (232 mm) |
| Belfield 7255 | Two-handle, no wand | 9.34 in (237 mm) | 9.75 in (248 mm) |
| Camerist 7545 | Pullout | 12 in (305 mm) | 9.77 in (248 mm) |
| Brantford 7295 | Pullout | 12.94 in (329 mm) | 9.97 in (253 mm) |
| Arbor 7594 | Pulldown | 15.5 in (394 mm) | 7.87 in (200 mm) |
| Align 7565 | Pulldown | 15.7 in (399 mm) | 7.53 in (191 mm) |
| Genta LX 7882 | Pulldown | 16 in (406 mm) | 7.69 in (195 mm) |
| Mikah 87069 | Pulldown | 16.6 in (422 mm) | 7.72 in (196 mm) |
| Weymouth S73204 | Two-handle pulldown | 16.75 in (425 mm) | 7.95 in (202 mm) |
| Sarai 87836 | Pulldown | 16.84 in (428 mm) | 8.69 in (221 mm) |
| Align F5923 | Filtration pulldown | 21.75 in (552 mm) | 10 in (254 mm) |
| Sleek 5925 | Pre-rinse spring pulldown | 23.25 in (591 mm) | 10 in (254 mm) |
Pre-rinse spring styles such as the Sleek 5925 are the tallest here, at 23.25 inches. They suit an open sink wall, not a sink under upper cabinets.
Step 3. Choose the spray and the controls
Every pulldown and pullout above lists a 68 inch hose and 1.5 gpm (5.7 L/min) maximum at 60 psi. They differ in spray features:
- Power Clean. The Align 7565, Camerist 7545 and Brantford 7295 pages list Power Clean spray, which they describe as roughly 50% more rinsing force.
- Power Boost. The Mikah 87069, Genta LX 7882, Arbor 7594 and Sarai 87836 pages list a Power Boost button that temporarily increases flow to fill pots faster.
- Reflex docking. The pulldowns and pullouts above, except the Sleek 5925 and the F5923, list Reflex docking, which pulls the wand back into the spout.
- Two handles. The Weymouth S73204 keeps separate hot and cold levers with a pulldown wand. The Belfield 7255 is two-handle without a wand.
Several single-lever pages say right only mounting, including the Align 7565, Genta LX 7882, Arbor 7594 and Sleek 5925. If the handle must be on the left for a corner sink, check the model page before you order.
Step 4. Touchless, filtration, bar and pot filler
Touchless: MotionSense Wave
The Align 7565EW is the touchless version of the 7565. Its page lists a MotionSense Wave sensor, the same 15.7 inch spout height, 1 or 3 holes, and a 2-1/2 inch (64 mm) maximum deck thickness. The warranty line adds 5 years on electronic components. Its spray modes are aerated stream and powerful cleaning rinse, two fewer than the standard 7565.
Filtered drinking water
The Align F5923 3-in-1 water filtration pulldown lists integrated filtration at the tap, 1 hole and right only mounting. If you would rather keep your current kitchen faucet, the Sip Modern F7660 is a separate beverage faucet with integrated filtration. It lists a 1-1/4 inch (32 mm) hole and a 3-year limited warranty, shorter than the lifetime terms on the kitchen faucets. Hard-water questions are covered in Moen vs. Hard Water.
Bar or prep sink
The Align 5965 pulldown bar faucet matches the Align kitchen faucet. It lists a 13.75 inch (349 mm) spout height, 6.75 inch (171 mm) reach and 1 hole with an optional 141002 escutcheon.
Pot filler at the range
The Moen S664 traditional two-handle and S665 modern pot fillers are wall mount with a 24 inch (610 mm) reach, 5.5 gpm (21 L/min) at 60 psi and 1/2 inch IPS connections. A pot filler needs its own supply line roughed into the wall behind the range. Plan it during a renovation, not after the backsplash is up.
Who should buy which
| If you have… | Start with | Why, from the page |
|---|---|---|
| One hole, open space above the sink | Align 7565 or Mikah 87069 | High-arc pulldown, 68 inch hose, 1.5 gpm |
| A low cabinet or window over the sink | Camerist 7545 | 12 inch spout height pullout |
| A 4-hole sink and a two-handle look | Belfield 7255 | 4 holes, two levers |
| Two handles plus a wand | Weymouth S73204 | 3 holes, two levers, pulldown |
| Messy hands, frequent cooking | Align 7565EW | MotionSense Wave, 5-year electronics coverage |
| A want for filtered water at the main tap | Align F5923 | Integrated filtration |
| An island prep sink | Align 5965 | Bar pulldown matching Align |
| A range wall in a renovation | S664 or S665 | Wall-mount pot filler, 24 inch reach |
Frequently asked questions
Pulldown or pullout: which Moen kitchen faucet should I buy?
A pulldown wand drops straight down from a high-arc spout, as on the Align 7565 (15.7 inch spout height). A pullout pulls toward you from a lower spout, as on the Camerist 7545 (12 inch spout height). Pick pullout if there is a cabinet or window close above the sink.
How many holes does a Moen kitchen faucet need?
Check the page. The Align 7565 lists 1 hole with an optional 3-hole escutcheon (141002). The Mikah 87069 and Genta LX 7882 list 1 or 3 holes. The Belfield 7255 lists 4 holes, and the Weymouth S73204 lists 3. The Sarai 87836 lists 1, 2, 3 or 4 holes.
What is the flow rate of a Moen kitchen faucet?
Every kitchen faucet quoted in this guide lists 1.5 gpm (5.7 L/min) maximum at 60 psi. The S664 and S665 pot fillers list 5.5 gpm (21 L/min) at 60 psi, because they fill pots at the range.
Does Moen make a touchless kitchen faucet?
Yes. MotionSense Wave models such as the Align 7565EW start and stop the water with a wave of the hand. The 7565EW page lists a limited lifetime warranty for the original homeowner with a 5-year warranty on electronic components.
Which Moen kitchen faucet has a built-in filter?
The Align F5923 3-in-1 water filtration pulldown lists integrated filtration for drinking water at the tap, a 21.75 inch spout height and 1 hole. The Sip Modern F7660 is a separate beverage faucet with integrated filtration and a 3-year limited warranty.
What warranty do Moen kitchen faucets have?
The kitchen faucet pages linked here list a limited lifetime warranty for the original homeowner, with 10 years for multifamily and 5 years for commercial use. MotionSense Wave models add 5 years on electronics. The Sip Modern F7660 lists a 3-year limited warranty.
Is Moen a good brand for kitchen faucets in Canada?
The pages linked here list ASME A112.18.1/CSA B125.1 certification, the CSA faucet standard used in Canada. For the brand and warranty compared with Delta, see our Delta brand guide, which compares the two.
Honest close
Most of Moen's kitchen line shares the same 1.5 gpm rate and 68 inch hose, so the real choice is fit: holes, height, handle side and spray. We did not quote a hole count for the Arbor 7594, because that field on its page is not a hole count. We also did not describe the Sarai as smart, because its page lists no connected features. Both pot fillers need planning before you finish the wall. For the rest of the home, see our Moen bathroom faucets and accessories guide, Moen shower trims and valves guide and Moen Commercial guide. More background on kitchen faucet types is in The Ultimate Guide to Kitchen Faucets, and the Moen and Delta warranties are compared in Are Delta Faucets Good?. Questions on a model: 289-236-2378 or sales@plumbingmarket.ca. Read the current product page before you order.
By Plumbing Market. Specifications from the Plumbing Market product pages linked above, checked October 9, 2026.
