A bathroom renovation usually gets judged by the tile, the vanity, or the shower trim. The performance of the room, however, is set much earlier. This rough in plumbing guide focuses on the stage behind the walls and under the floor, where pipe placement, drain sizing, venting, and valve location determine whether the finished space works properly for years.
For homeowners, this is the point where layout decisions become costly to change. For contractors and plumbers, it is where coordination matters most. A well-planned rough-in protects fixture selection, avoids rework, and makes final installation faster.
What rough-in plumbing actually includes

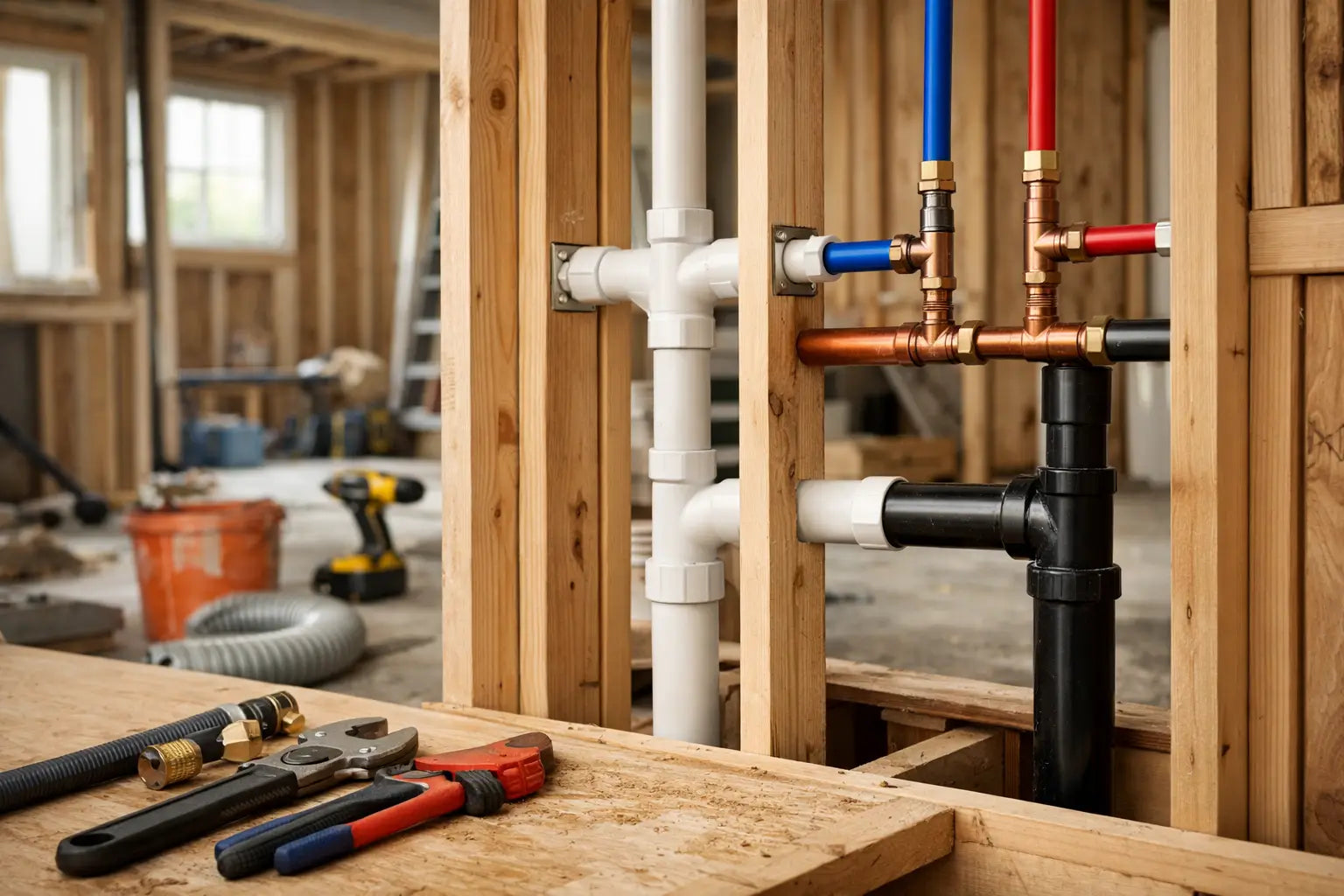

In simple terms, rough-in plumbing is the installation of the supply lines, drain lines, vents, and connection points before walls are closed and finishes go in. Toilets, tubs, shower systems, sinks, bidets, and faucets may already be selected, but most of the visible trim is not installed yet.
This phase also includes the framing-related clearances that support fixture placement. If the toilet flange lands in the wrong spot, or the shower valve sits too deep in the wall, the finished result can be difficult to correct without opening the space again. That is why rough-in work is not just about getting pipes into the room. It is about matching those pipes to the exact products and dimensions being installed.
Start with the fixture schedule, not the pipe
The best rough-in work starts with product specifications. That matters even more in renovations where dimensions are tight and not all products use the same connection points. A wall-hung toilet, for example, requires a very different setup than a standard floor-mounted model. A freestanding tub with a floor-mounted filler changes planning compared with an alcove tub and deck-mounted faucet.
Before rough-in begins, confirm the actual fixture types, model dimensions, and installation requirements. This includes toilet rough-in size, sink centre lines, tub drain location, shower valve depth, and whether the selected trim requires a matching rough-in valve body. Premium brands often have specific rough-in components, and substituting late can create delays or compatibility issues.
If products are not yet finalized, the rough-in should stay as flexible as possible. That may work for a basic vanity faucet, but it is risky for concealed shower systems, in-wall carriers, or custom tub fillers. The more specialized the fixture, the less room there is for guesswork.
The key measurements that shape the job
A practical rough in plumbing guide has to start with measurement discipline. In residential bathrooms, the toilet rough-in dimension is one of the most important. In many cases this is 12 inches from the finished wall to the centre of the drain, but 10-inch and 14-inch setups also exist. Measuring from framing instead of finished wall thickness is a common source of error.
Sink rough-ins vary depending on vanity design, sink type, and faucet configuration. A floating vanity may need cleaner wall placement because the supply lines and drain are more visible. A console sink or wall-hung basin leaves even less room to hide poor alignment.
Showers introduce another layer. Valve height, shower head position, body spray spacing, and niche placement all need to work together. The valve rough-in depth must match the finished wall assembly, including backer board, waterproofing, and tile thickness. Too shallow or too deep can prevent trim from seating correctly.
Tub drains also deserve extra attention. Centre drains, end drains, and offset waste locations differ by model. Ordering the tub first and roughing in second is usually the safer path.
Drain, waste, and vent planning in a rough in plumbing guide
Supply lines get a lot of attention, but the drain and vent system does the harder job. If drainage is slow, noisy, or prone to odour issues, the finished bathroom will feel like a bad renovation no matter how good it looks.
Every fixture needs the correct drain size and proper venting under applicable code requirements. Toilets, sinks, tubs, showers, and floor drains each have different demands. The routing also has to respect slope, joist direction, framing limitations, and the location of the existing stack.
This is where renovation trade-offs appear. Moving a toilet a short distance may seem simple on plan, but the structure below can make it expensive or impractical. Relocating a shower drain in a concrete slab is a very different job than adjusting one in a wood-framed floor. In some layouts, keeping fixtures close to the existing drain path is the smartest way to control labour and avoid structural complications.
Venting is another area where shortcuts create long-term problems. A fixture that drains without proper venting may gurgle or siphon trap seals. During planning, the vent route should be considered as seriously as the water lines.
Water supply lines and shutoff strategy
Hot and cold supply lines need more than a simple connection point. They should be routed cleanly, supported properly, and positioned for service access where required. In many renovations, adding or upgrading individual shutoffs is worth the extra effort because it simplifies maintenance later.
Shower systems may need dedicated planning if they include multiple outlets or pressure-balancing and thermostatic controls. A basic shower-tub combo has different water demands than a system with a rain head, hand shower, and body sprays. Flow requirements, valve compatibility, and the number of ports all need to be reviewed before walls are closed.
For commercial washrooms or larger residential projects, consistency matters. Repeating the same rough-in dimensions across multiple rooms saves time during trim-out and reduces ordering mistakes.
Rough-in valves: where many projects go wrong
One of the most common rough-in errors is treating the trim and the valve as separate decisions. They are not. Many shower and tub systems require a brand-specific rough-in valve body that works only with a compatible trim set.
This matters because the visible finish is often chosen early for design reasons, while the valve body gets overlooked until installation. If the wall is already closed and the wrong rough-in is in place, the correction can be expensive. It is far better to pair the rough-in valve with the selected trim package from the start.
Depth is equally important. Manufacturers provide acceptable installation ranges, and those ranges need to account for the final wall build-up. This is especially relevant with thicker tile assemblies or custom stone applications.
Common rough-in mistakes to avoid
Most rough-in problems are not dramatic. They are small misses that create bigger issues later. Measuring from unfinished surfaces, failing to confirm fixture specs, misplacing a shower valve, or forgetting access for servicing can all delay a project.
Another frequent issue is assuming all toilets, tubs, or faucets install the same way. They do not. Even within the same category, dimensions and connection requirements vary by brand and model. That is why product-specific planning matters more than rule-of-thumb installation.
Renovators should also watch sequencing. If cabinetry, tile layout, lighting, and plumbing are planned separately, conflicts show up fast. A centred mirror does not help if the sink drain is off-line, and a carefully chosen tub filler can become a problem if the framing below cannot support the intended supply route.
A room-by-room approach works best
In a standard bathroom, the toilet, vanity, tub or shower, and accessories should be reviewed as one system. The rough-in should support use, cleaning, and serviceability, not just code minimums. Tight powder rooms may prioritize clearance. Primary ensuites may prioritize shower performance and feature integration. Basement bathrooms often have more constraints tied to existing drains and slab conditions.
In kitchens, rough-in concerns shift toward sink base cabinet layout, dishwasher connections, filtration systems, garburators where applicable, and faucet hole configuration. In commercial settings, fixture spacing, flush valve requirements, sensor products, and maintenance access usually carry more weight.
Choosing products before rough-in saves time
This is one stage where product selection has a direct effect on labour. If the fixture package is defined early, the plumber can rough in with precision instead of leaving assumptions behind the wall. That includes toilets, bidets, sink faucets, shower systems, tub fillers, rough-in valves, drains, carriers, and replacement parts needed to complete the install.
For buyers managing a renovation or new build, it helps to source both finish fixtures and technical components from the same specialist supplier. Plumbing Market is structured around that kind of purchase path, so it is easier to match visible products with the correct rough-in parts before installation starts.
When to pause and verify
The best time to catch rough-in issues is before inspection and long before tile. Once lines are installed, verify centre lines, heights, valve depth, drain placement, and clearances against the actual product sheets. Dry-fitting where possible can reveal a problem that drawings alone miss.
Photos also help. Documenting the rough-in before walls are closed gives contractors and property owners a useful reference later when installing accessories, making repairs, or locating concealed lines.
A successful rough-in is rarely noticed after the renovation is complete, and that is the point. When the drains clear properly, the trims fit the first time, and every fixture lands exactly where it should, the finished room feels right from day one. That result starts well before the tile and paint, with careful decisions made where most people never look.
