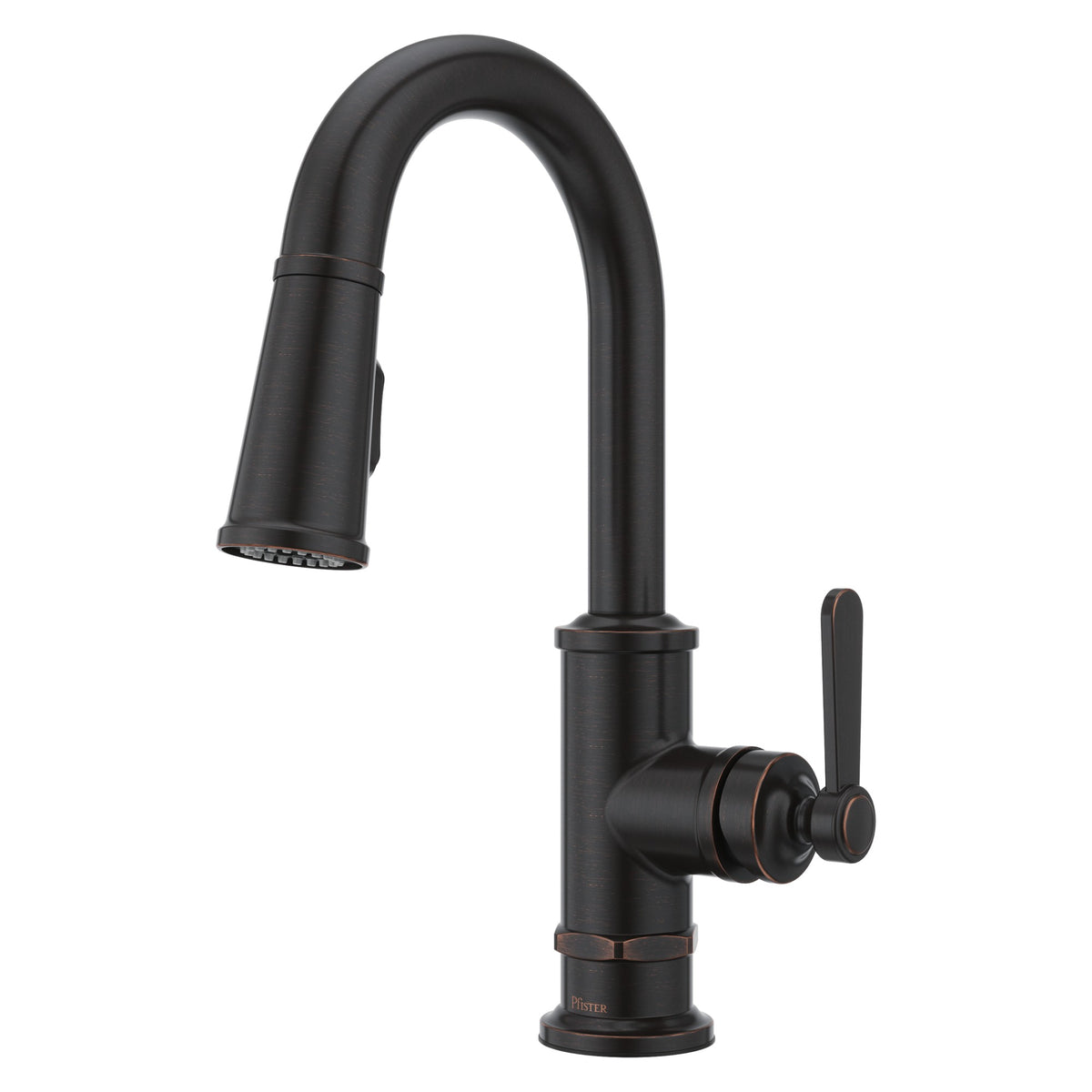

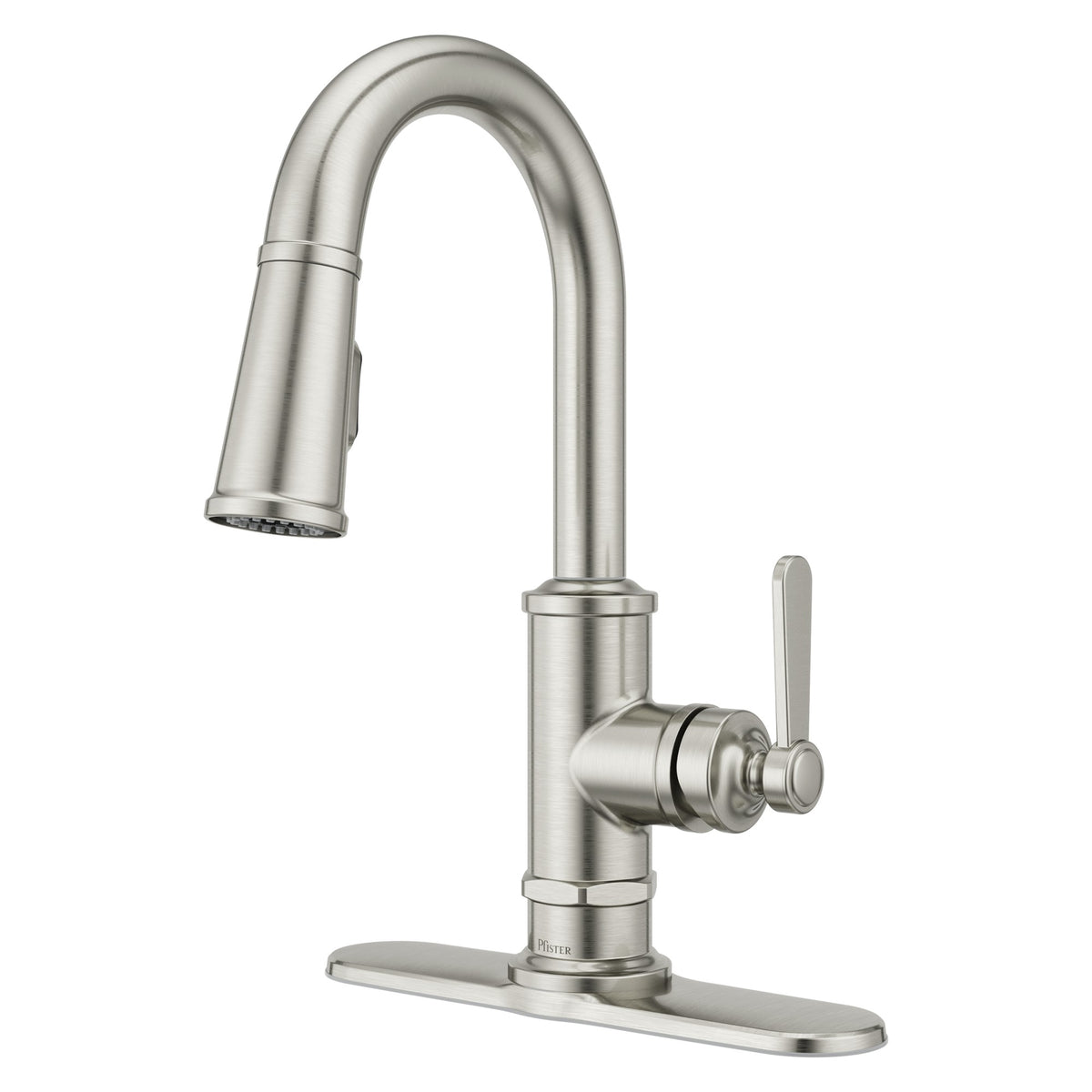

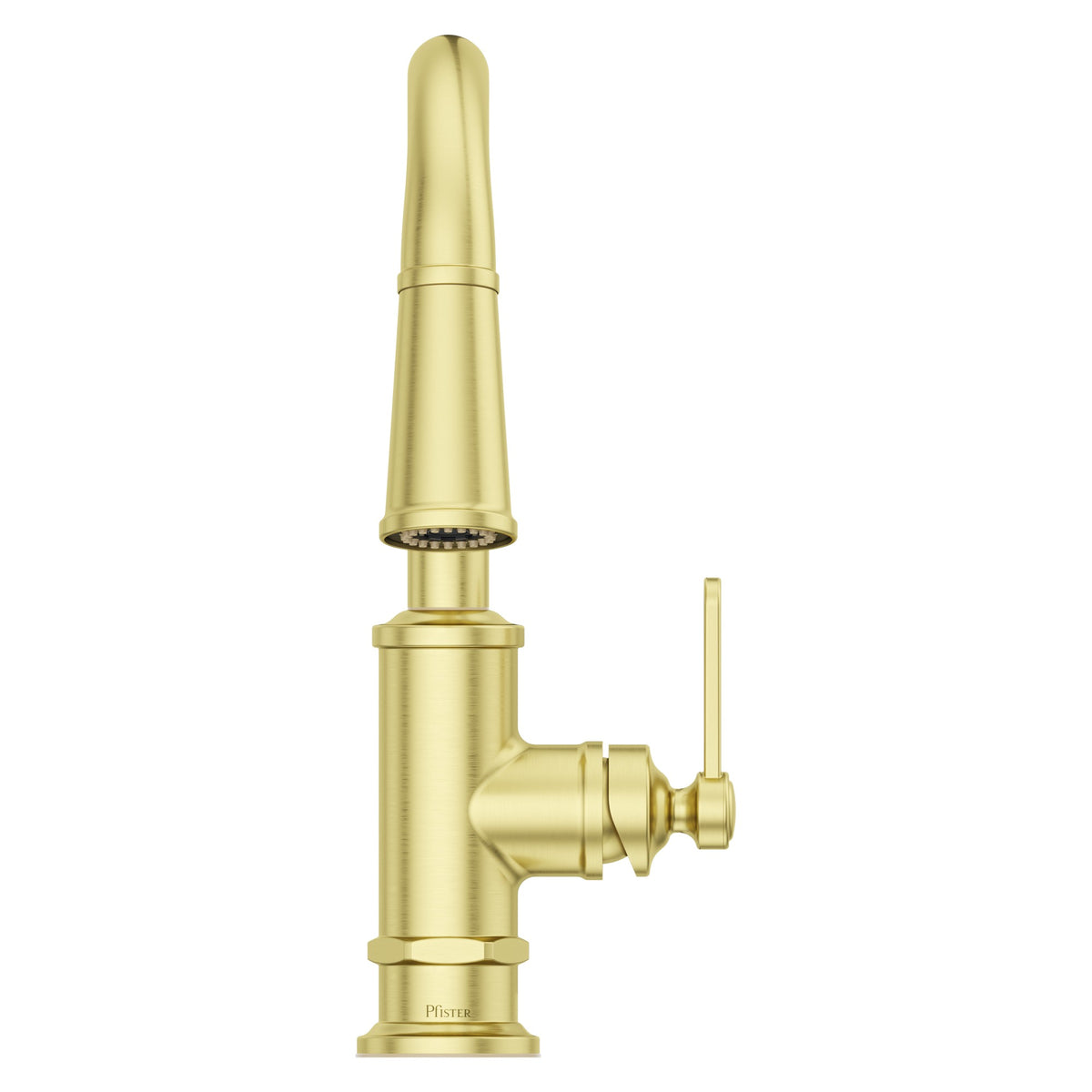

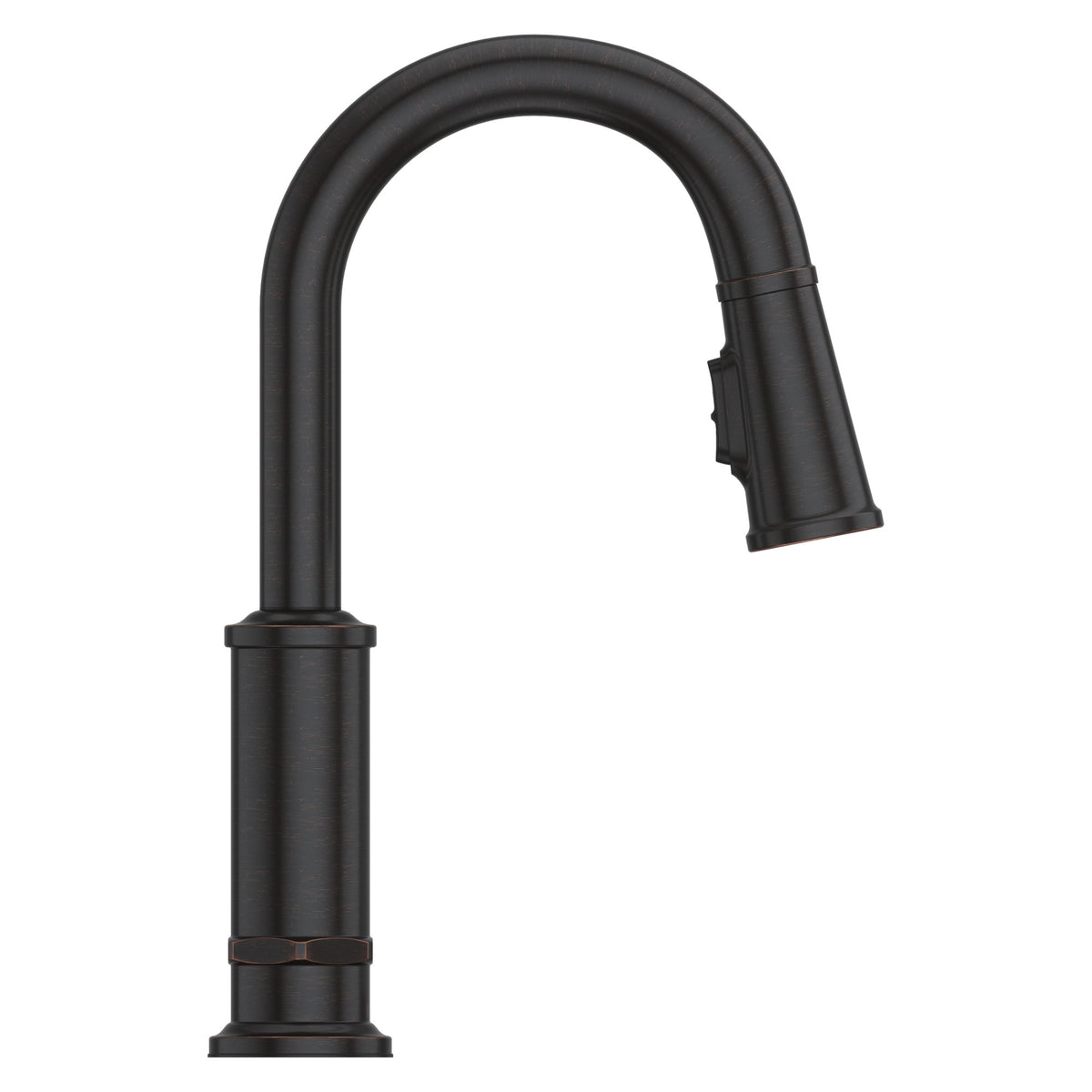

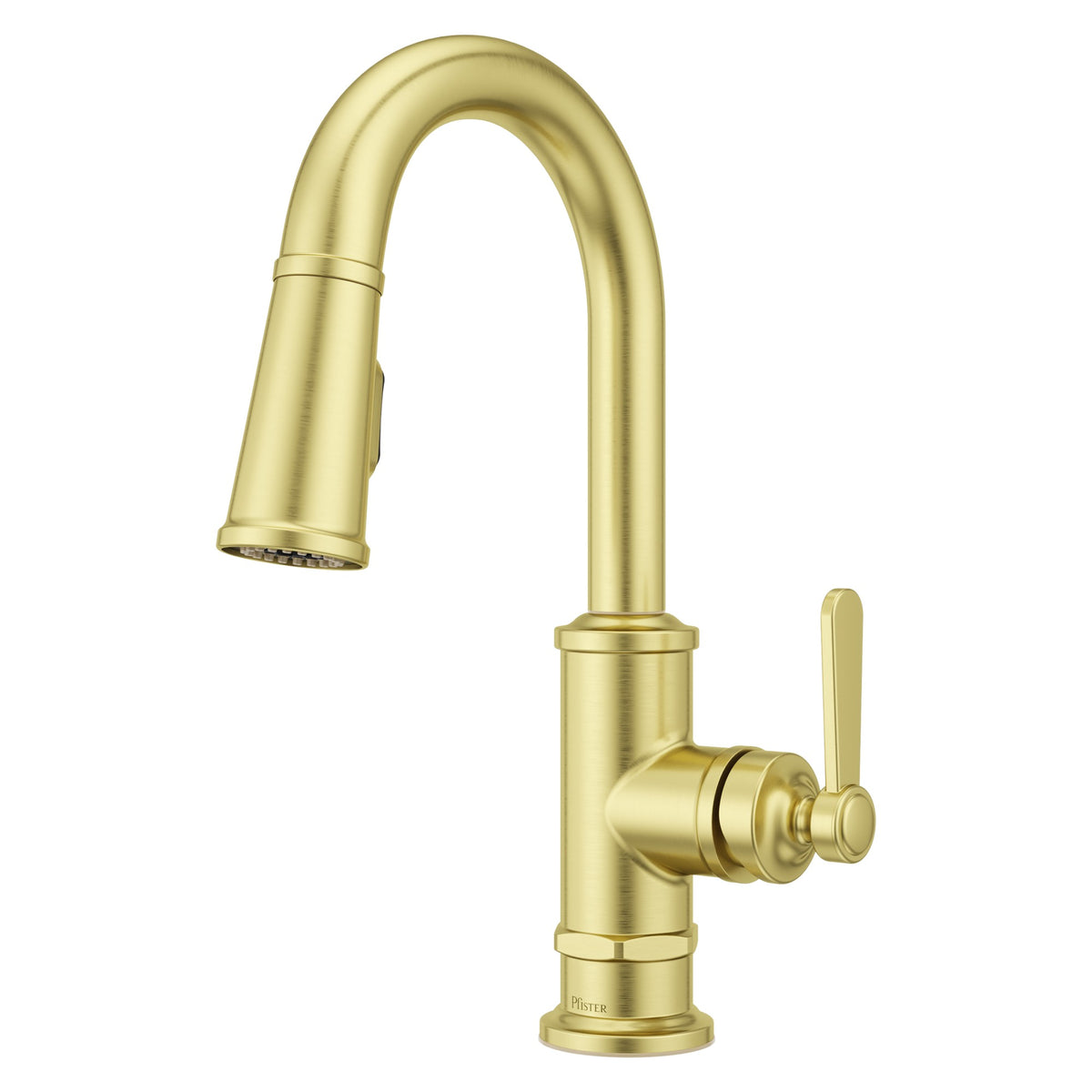

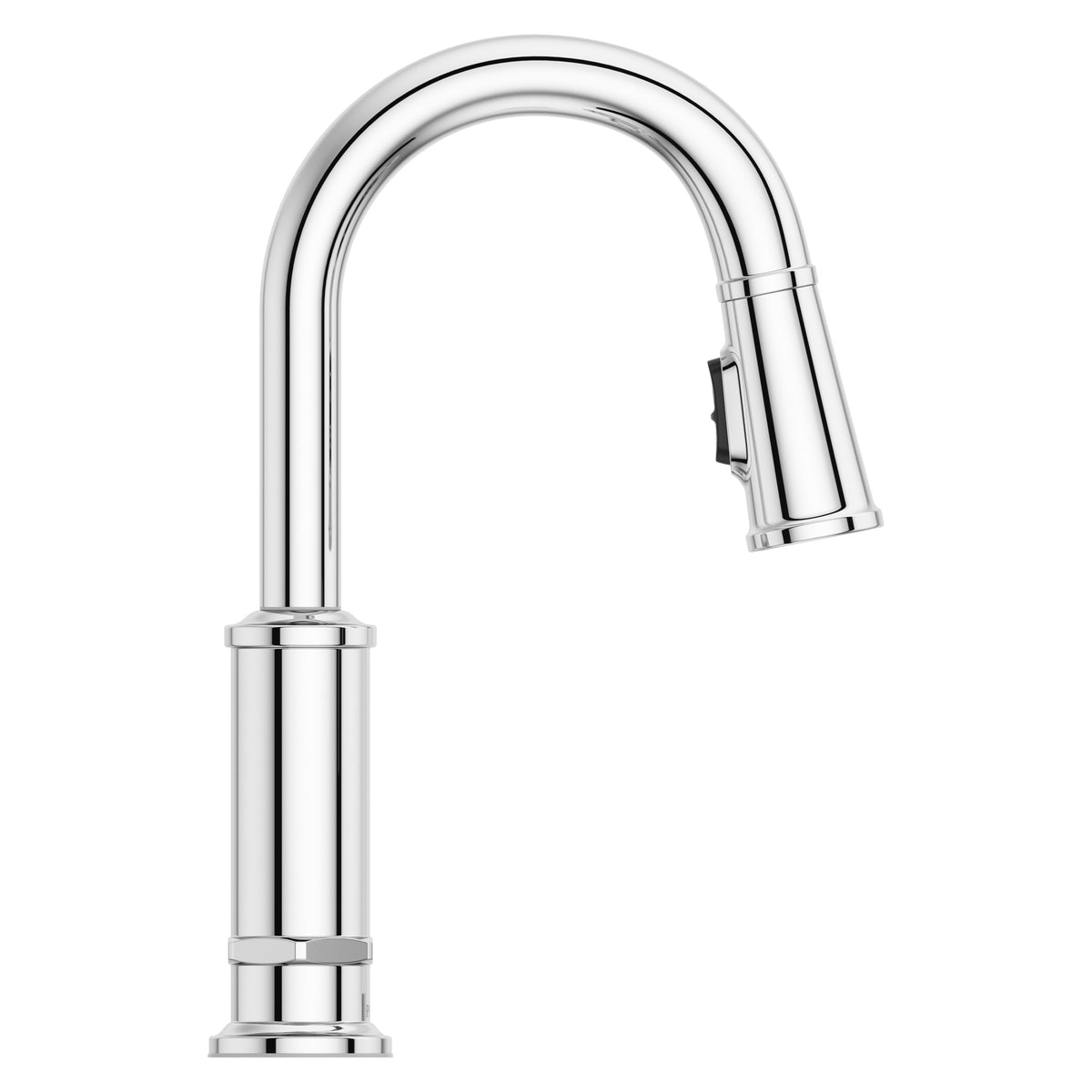

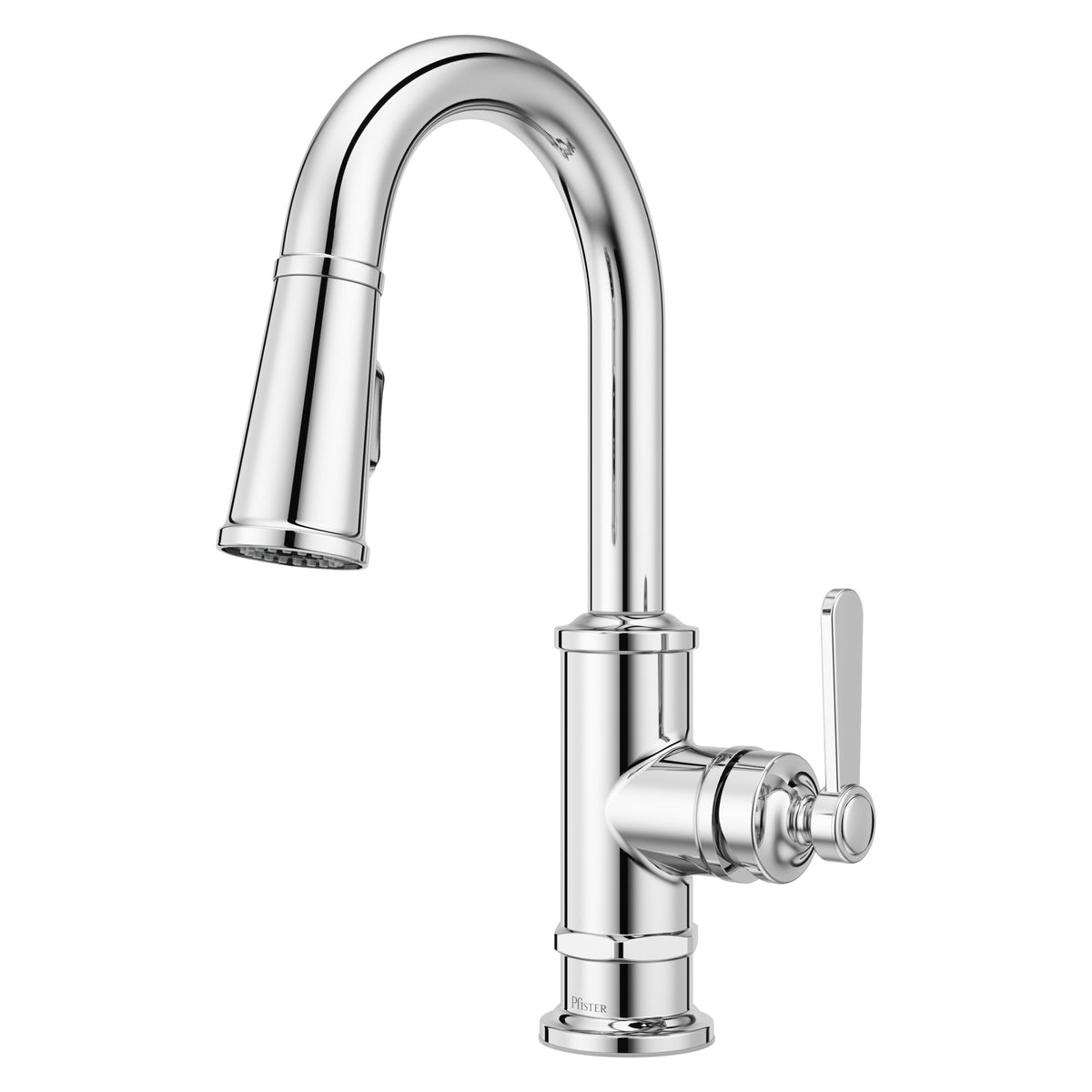

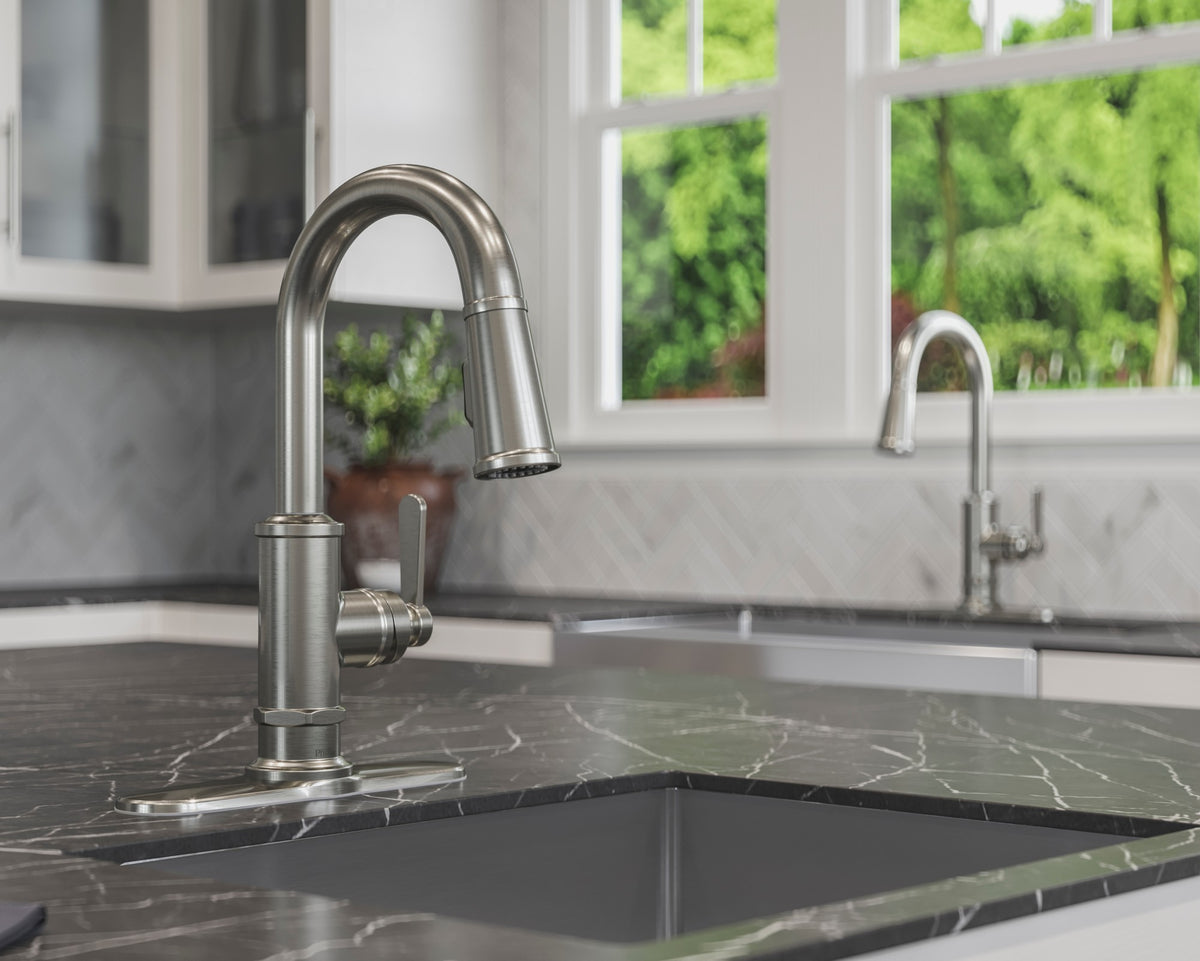

Pfister Port Haven 1-Handle Pull-Down Bar & Prep Faucet
Product Details
Product Details
Product Overview
Whether you’re feeding four or forty, do it with flair. Industrial design gives the Port Haven collection just enough edge to offset the oh-so-elegant, statuesque faucets that make a statement in your kitchen without ever uttering a word. These faucets are anything but ordinary. Keeping with the theme of popular trends, Port Haven thrives in modern rustic, modern industrial and eclectic traditional kitchen designs.
Offered in 5 finishes: Polished Chrome, Stainless Steel, Polished Nickel, Brushed Gold and Tuscan Bronze. Each finish has its own model number, listed in the specifications below.
Features & Benefits
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons

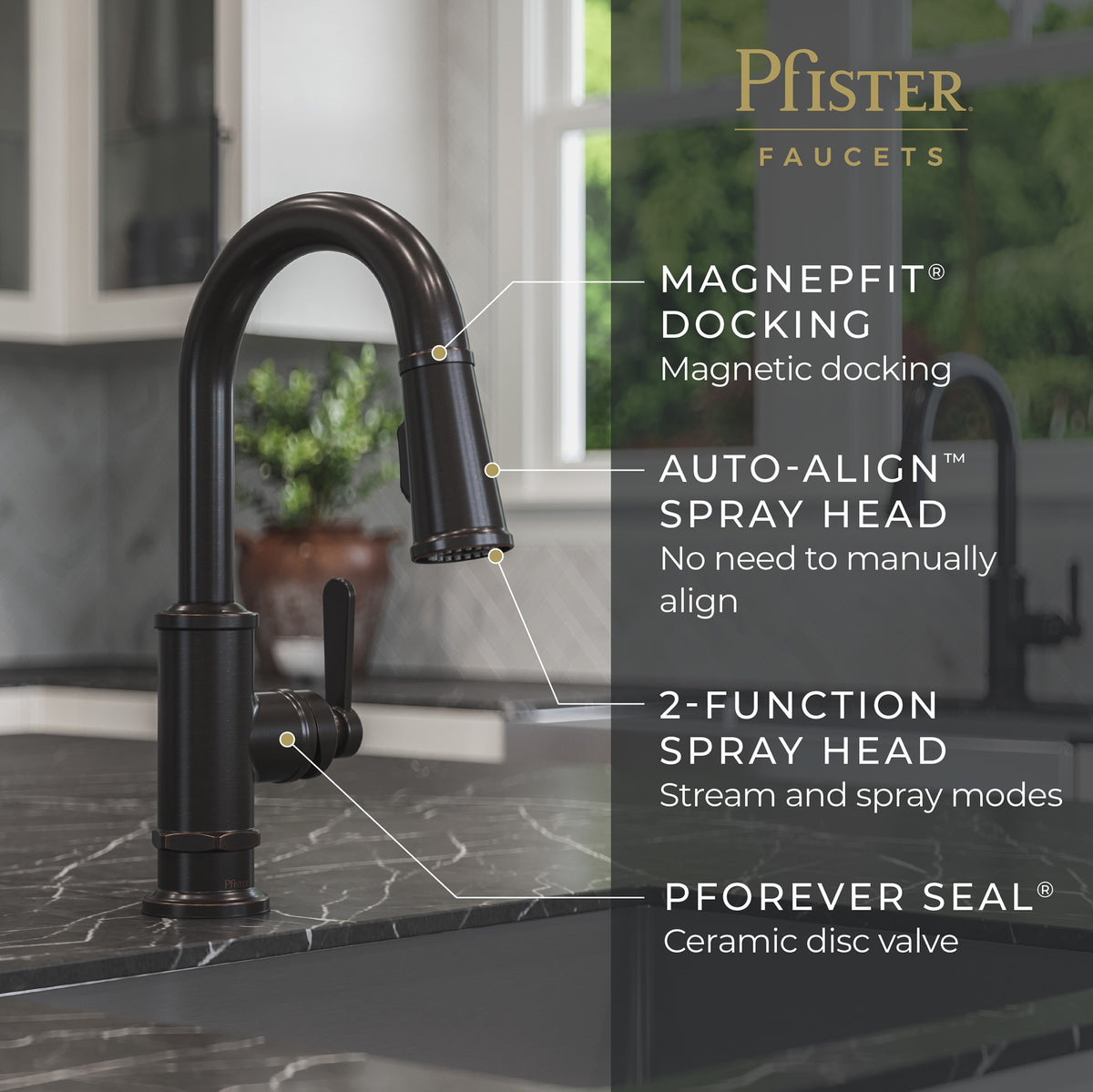

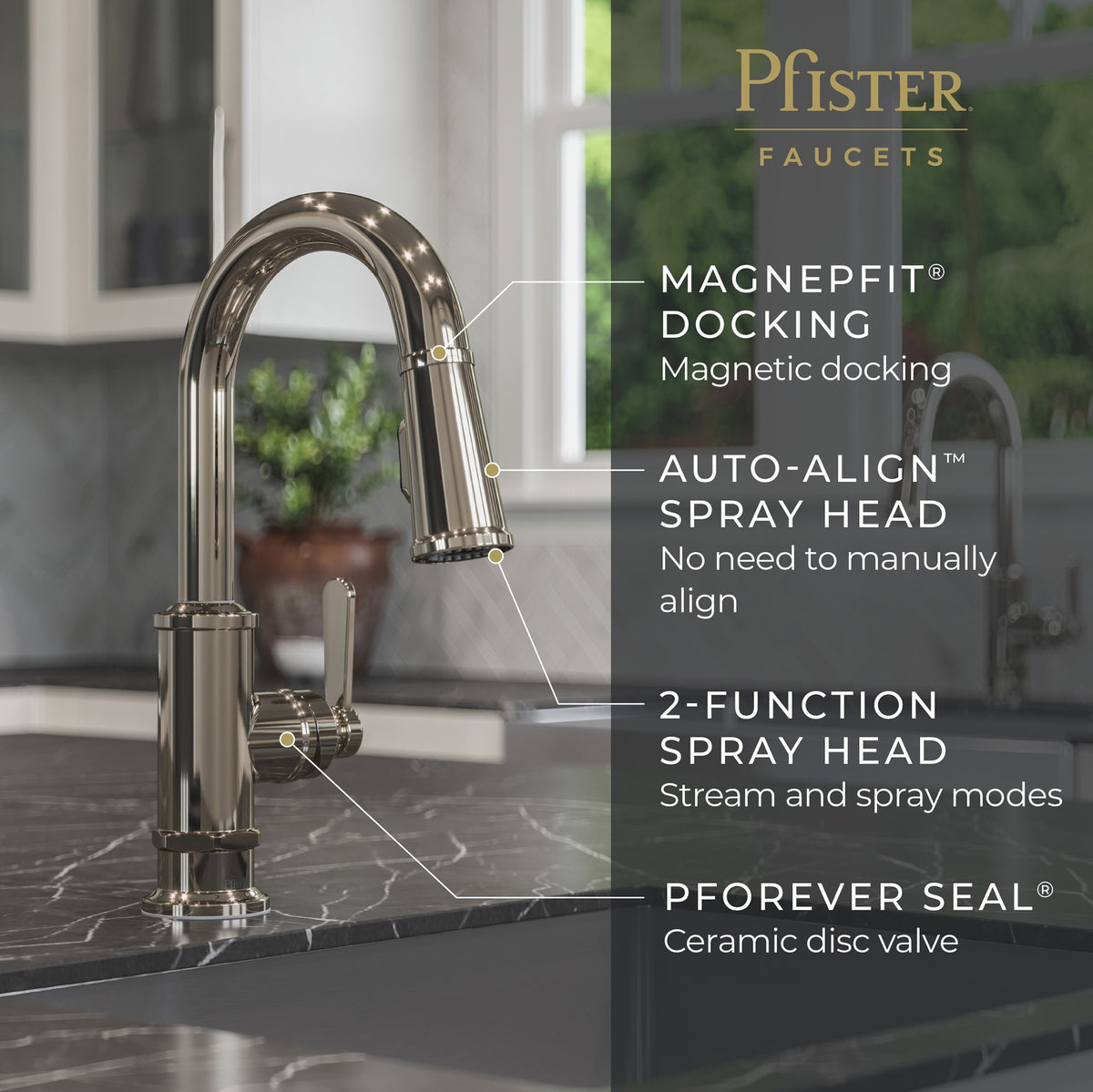

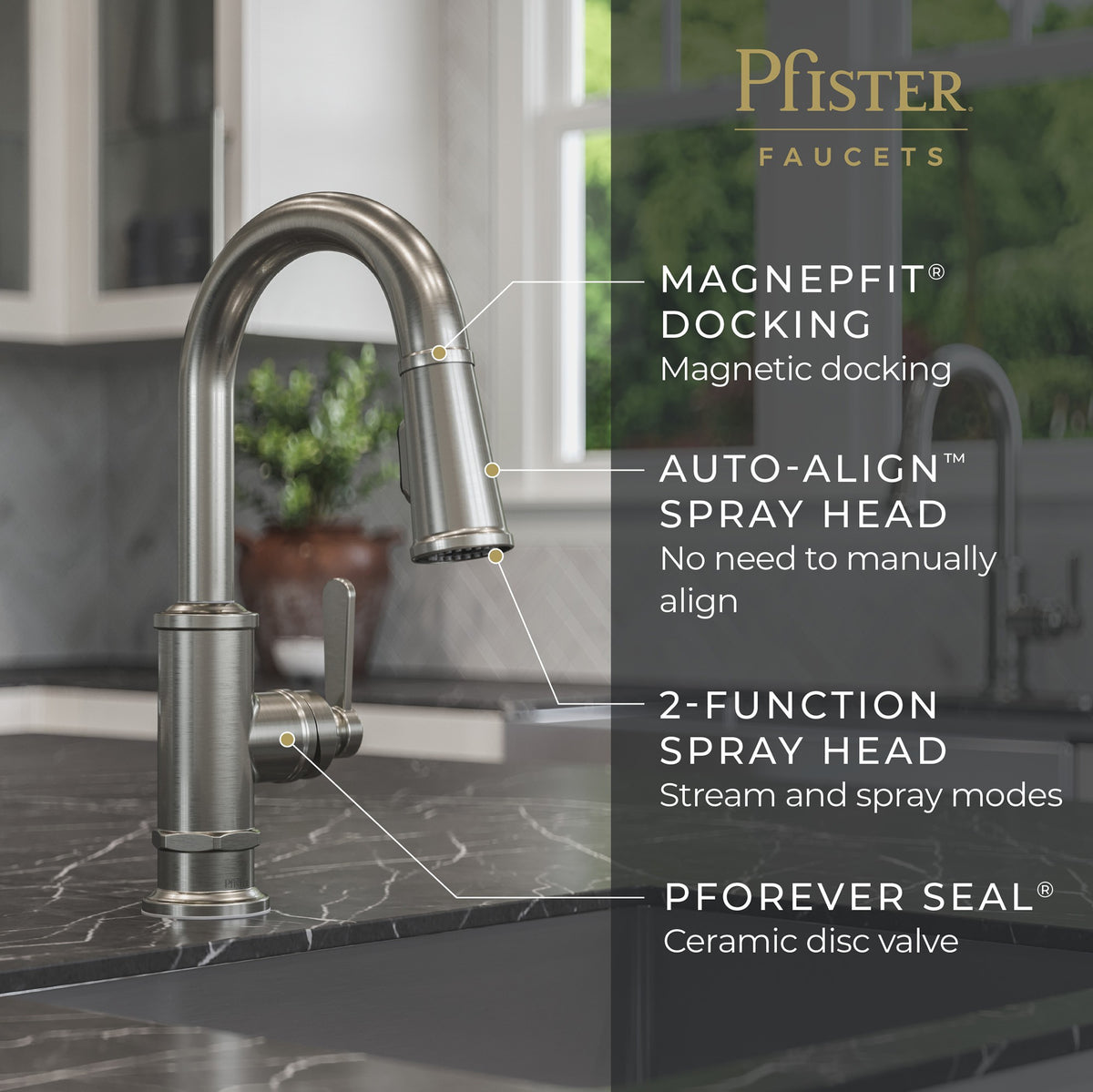

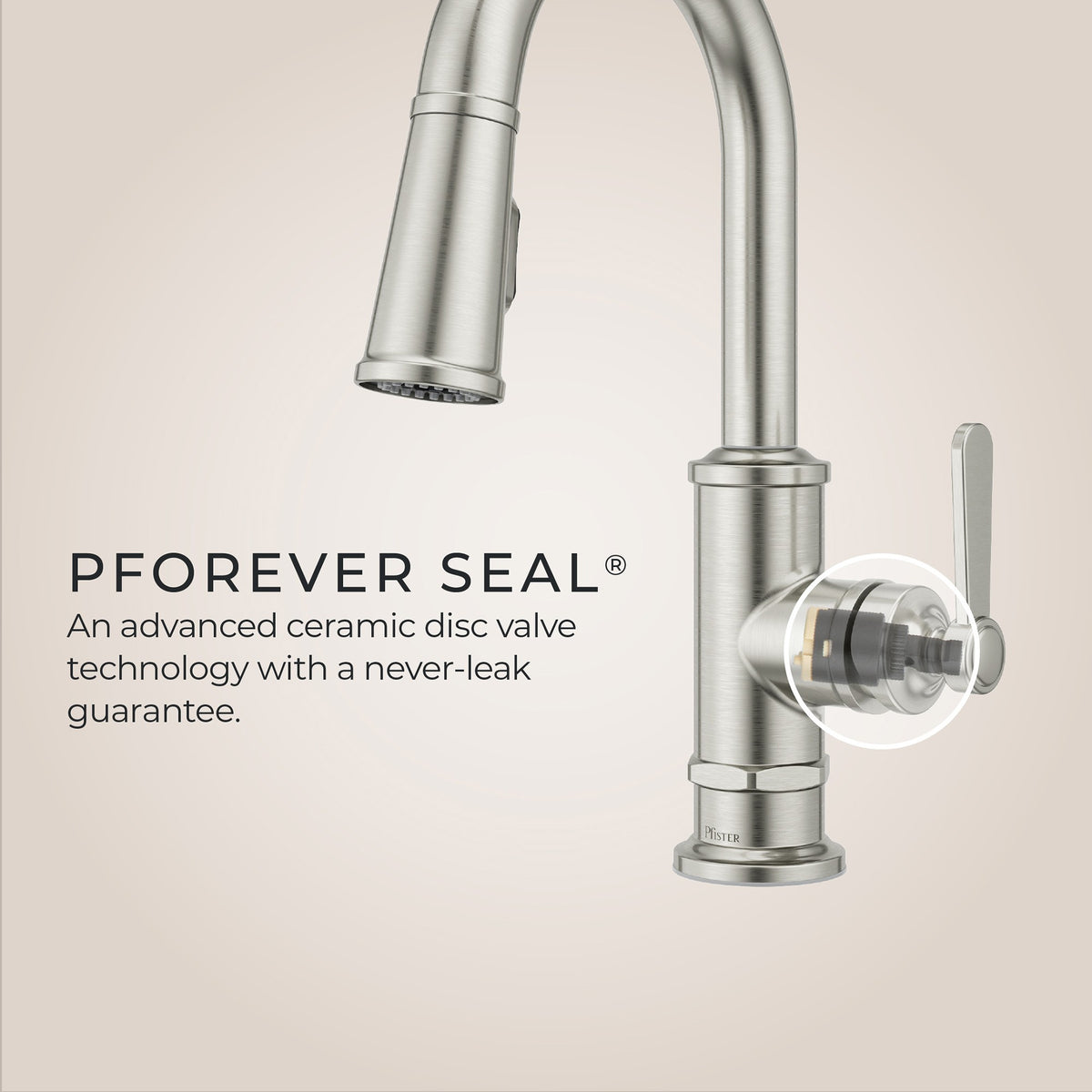

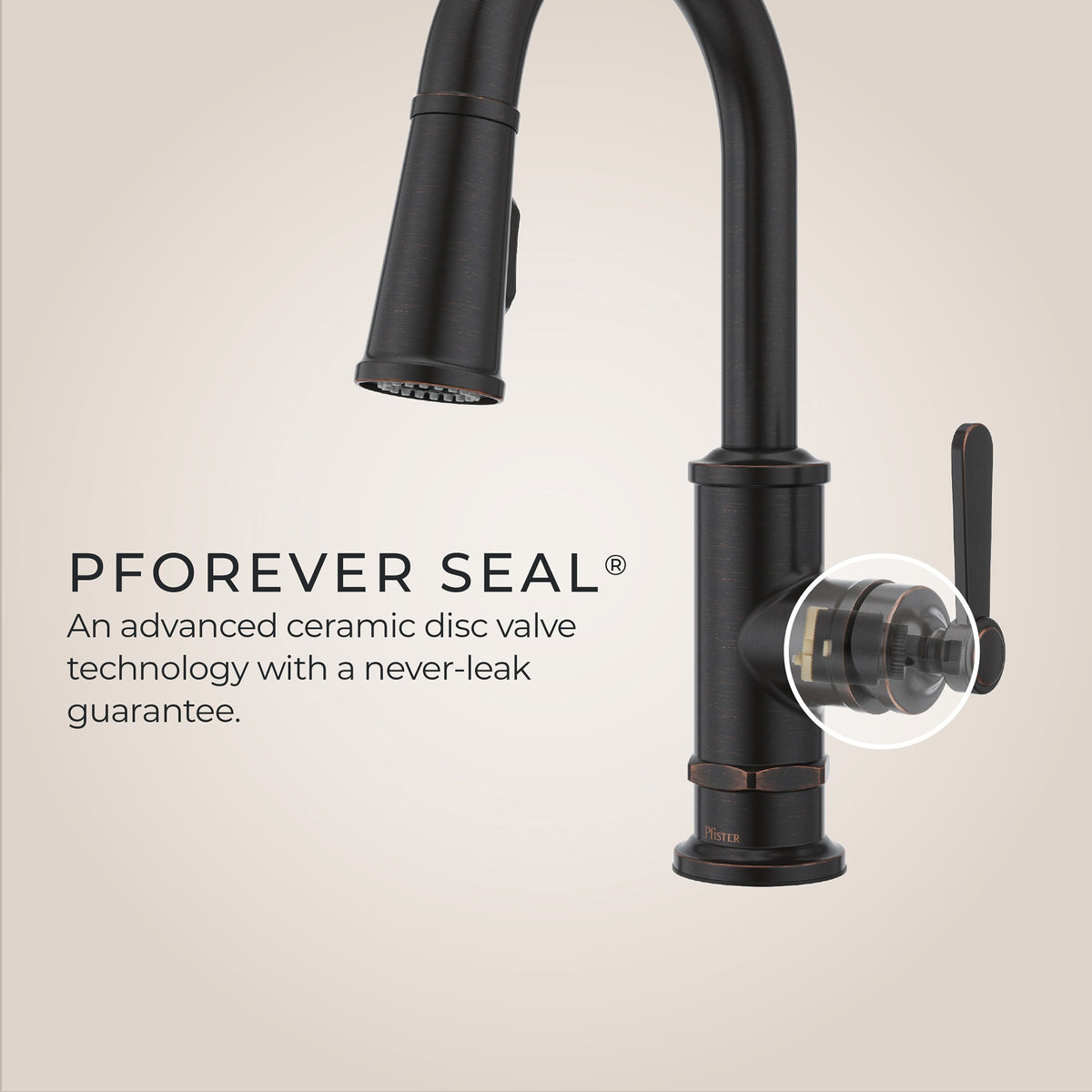

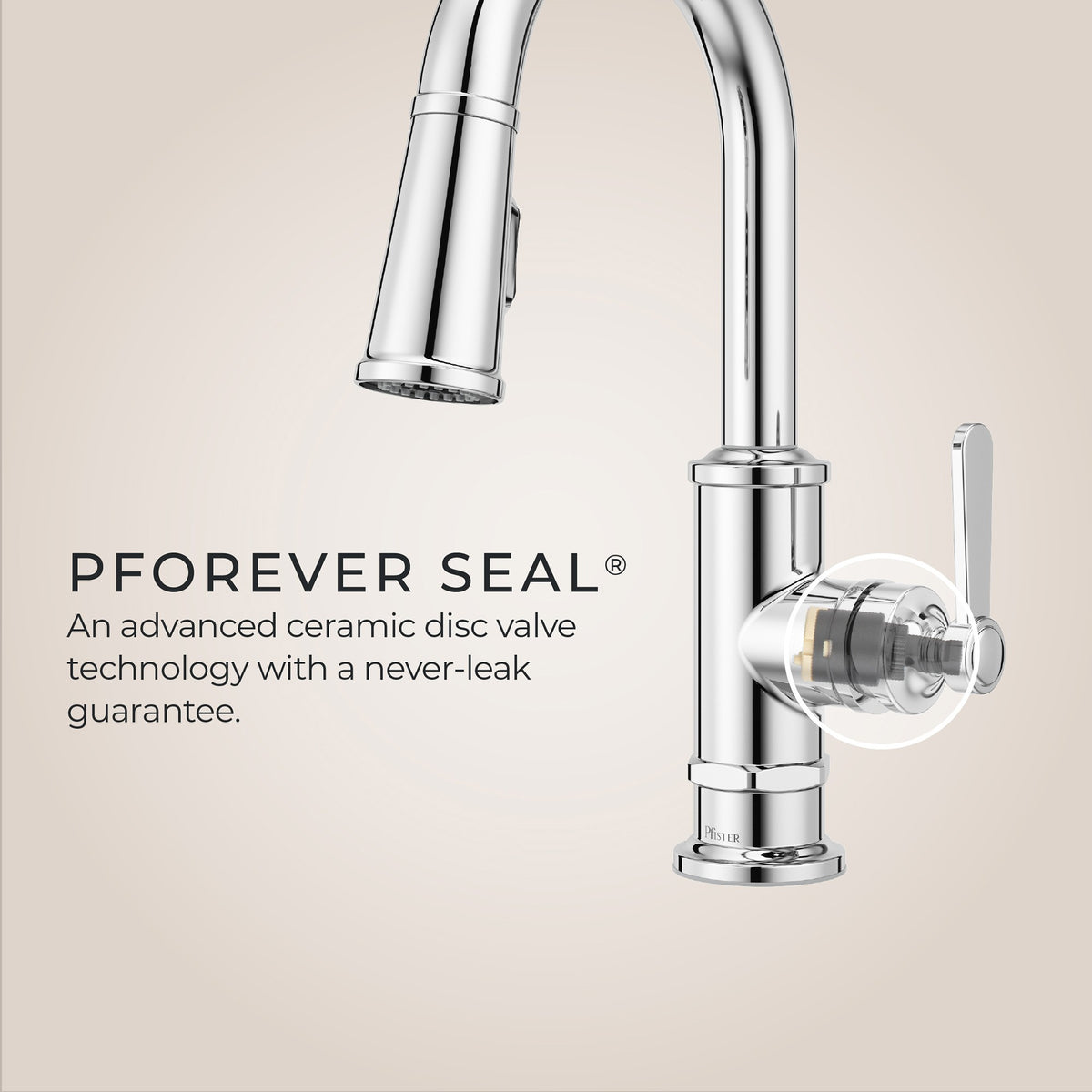

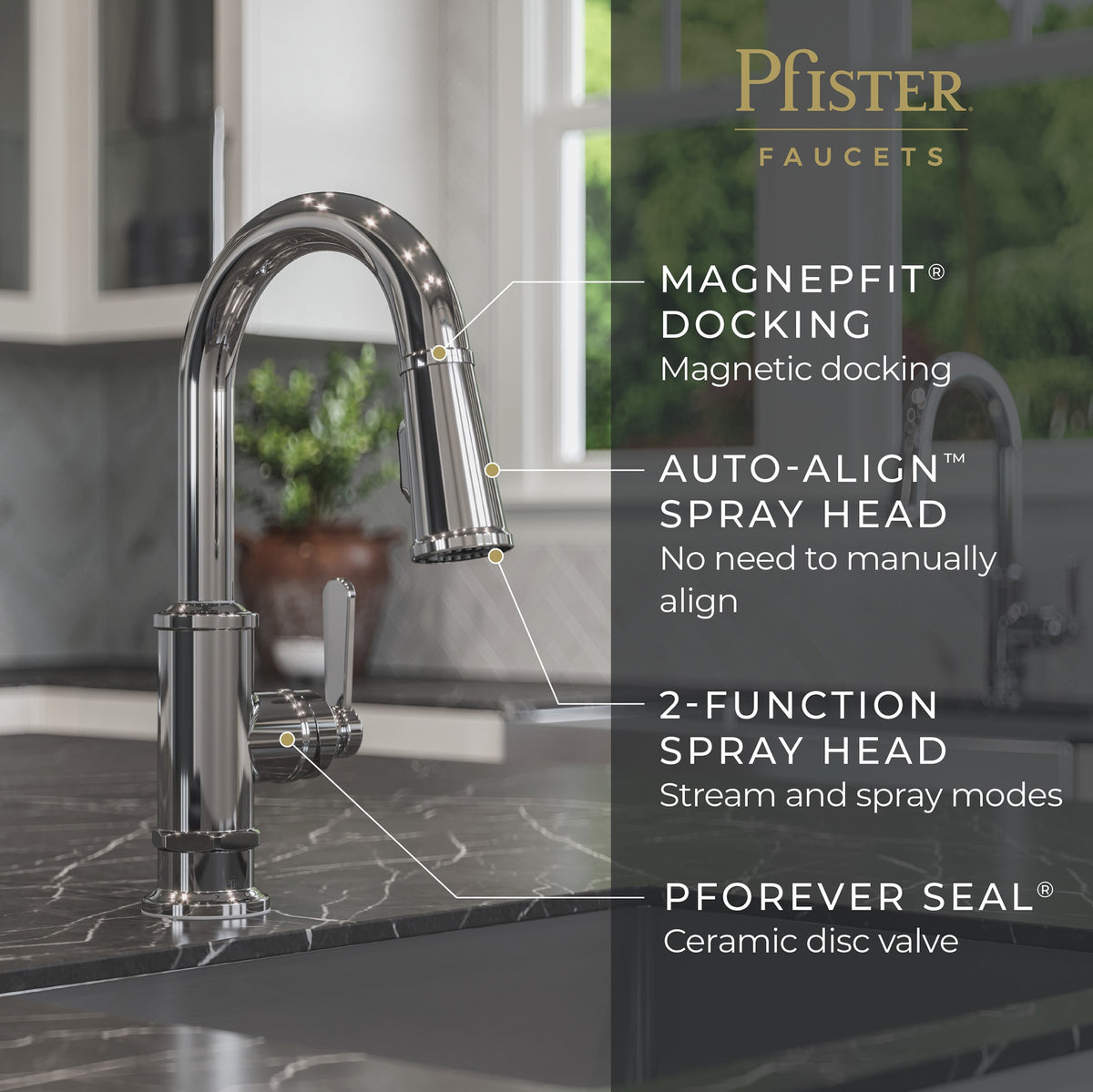

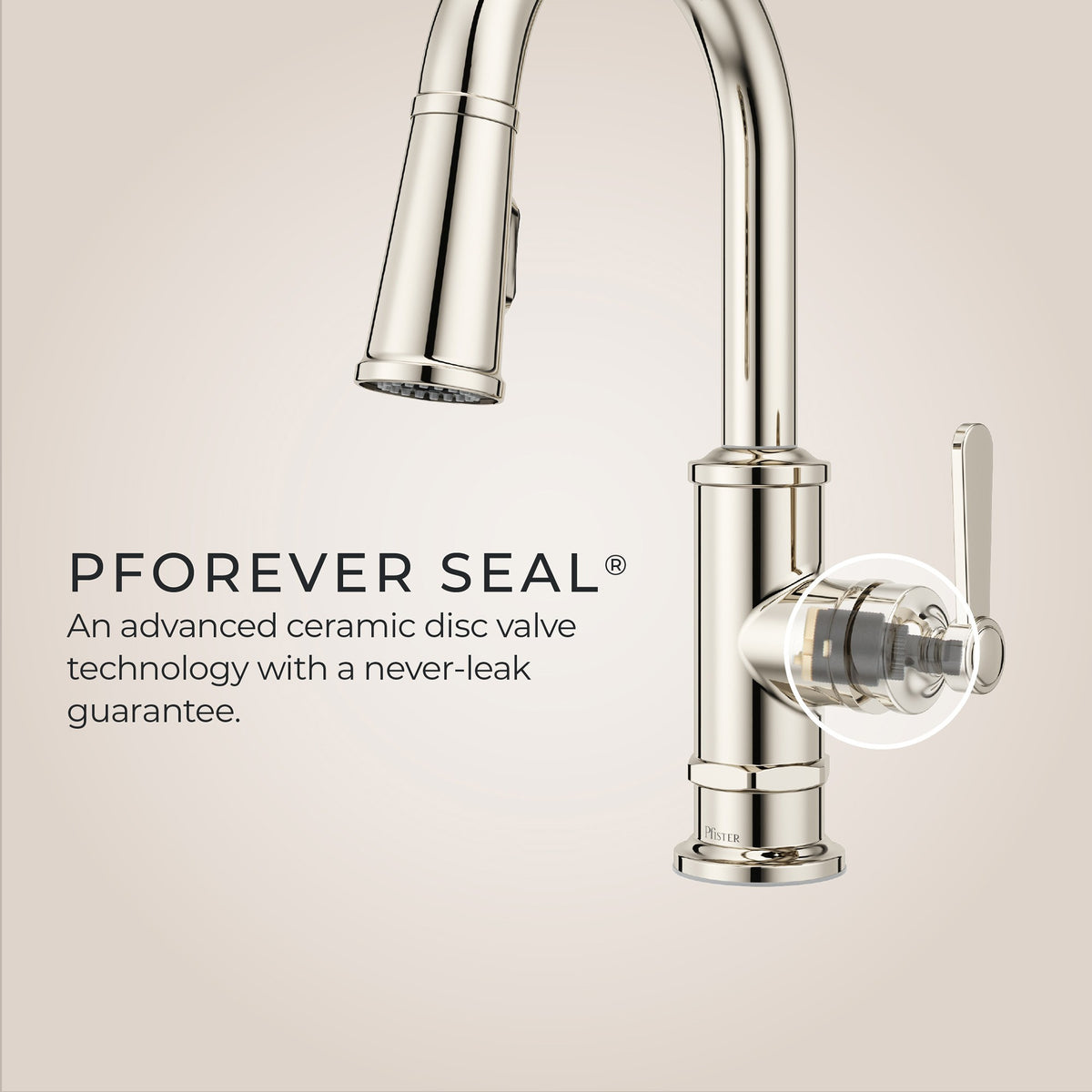

- Pforever Seal™ features an advanced ceramic disc valve technology with a never-leak guarantee
- Complies with Federal and State safe drinking water legislation.

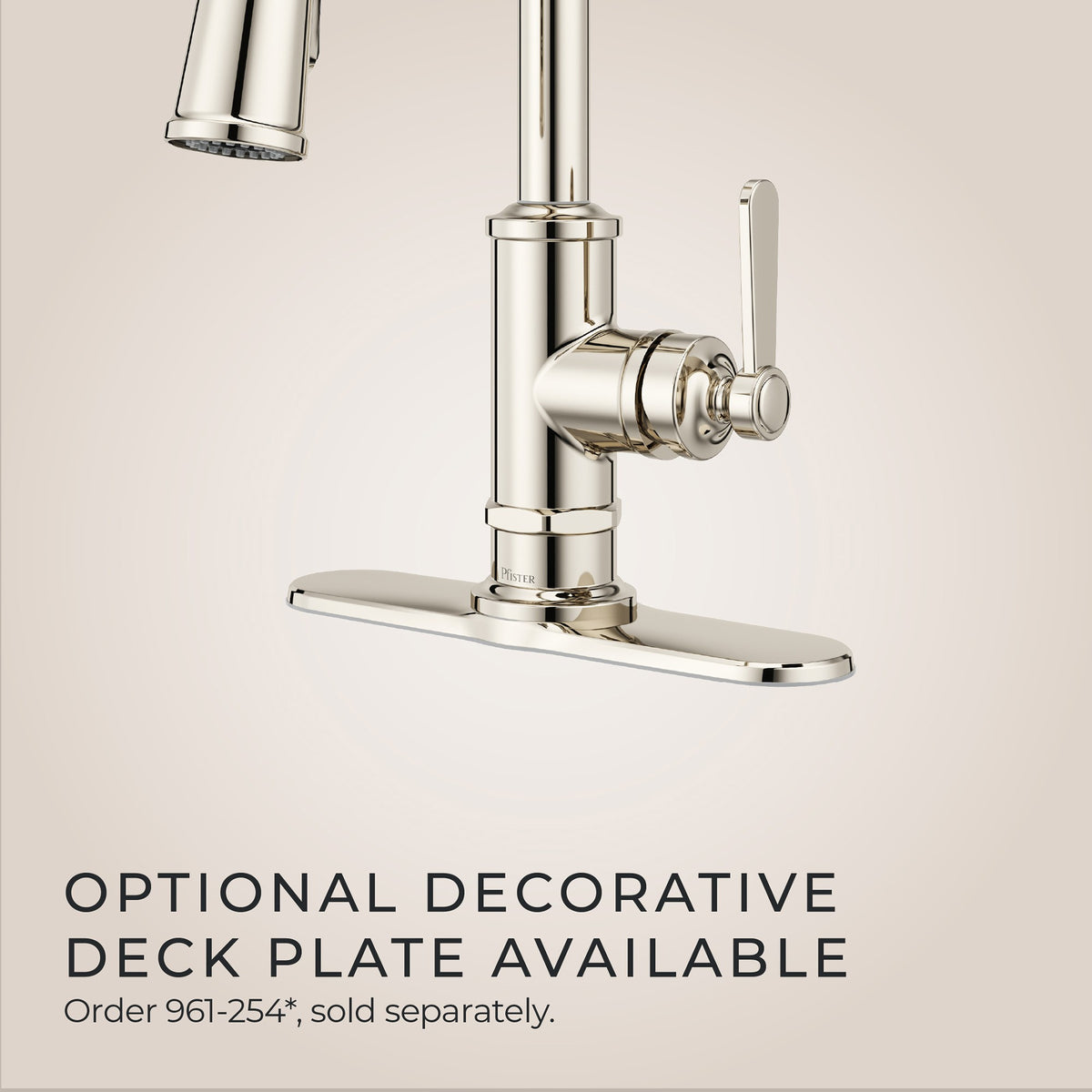

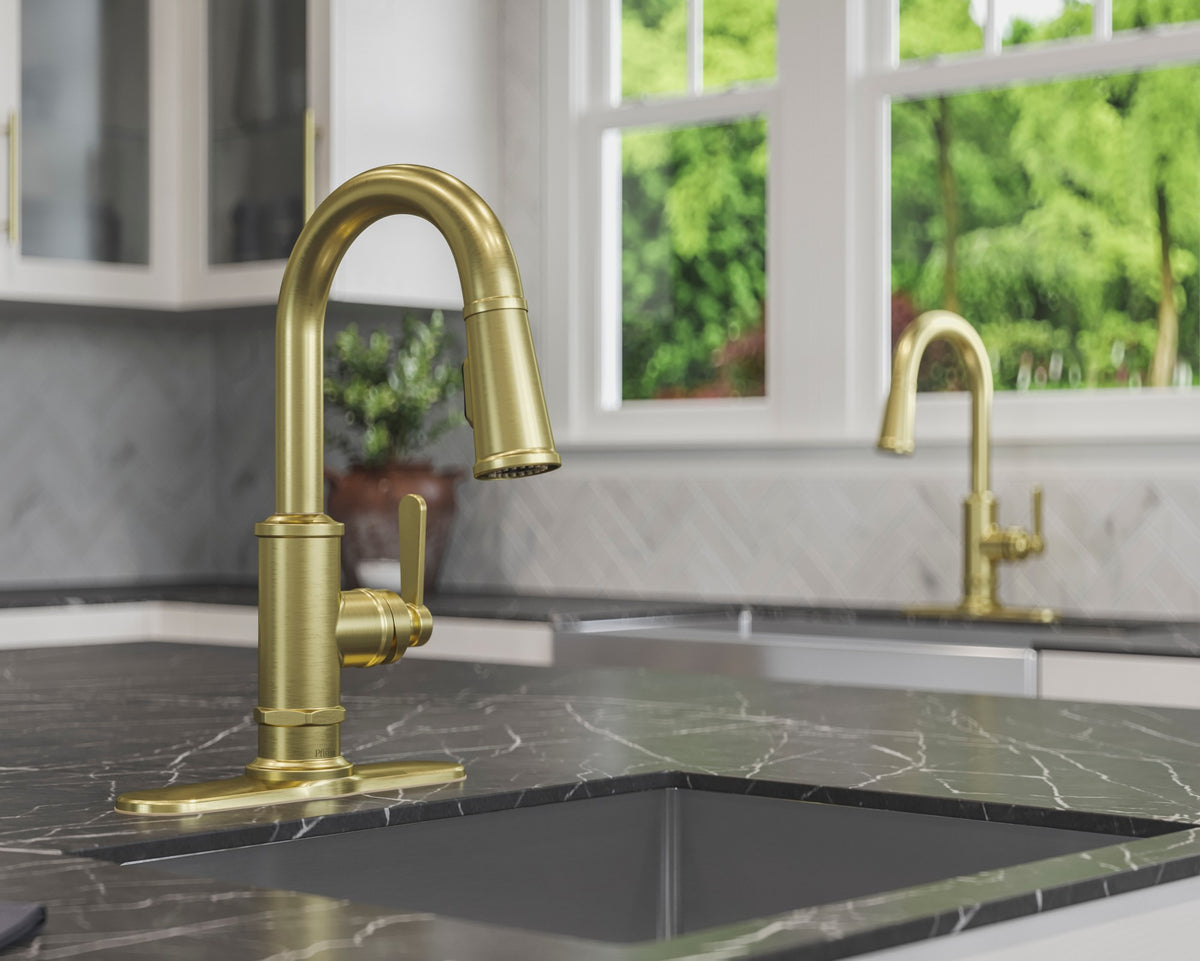

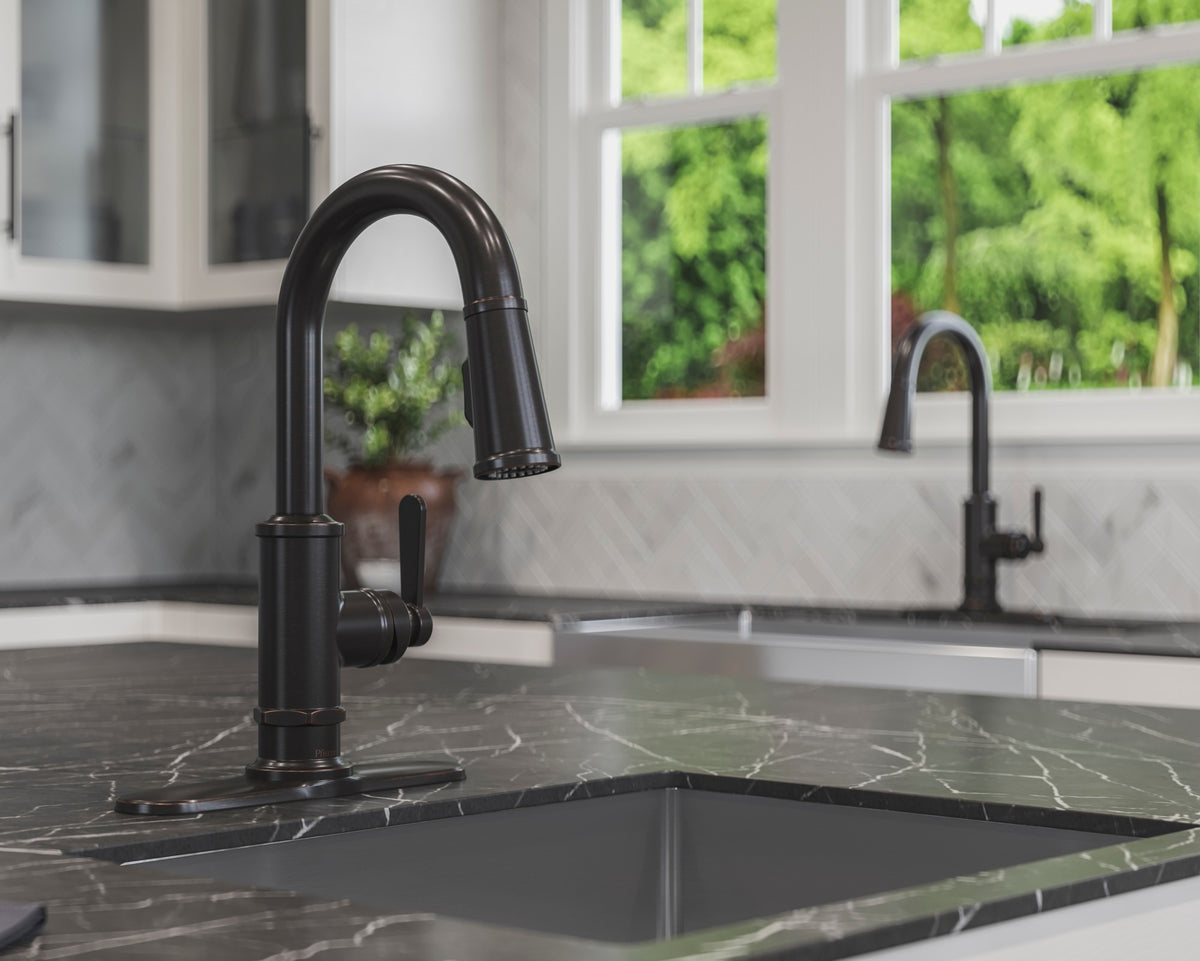

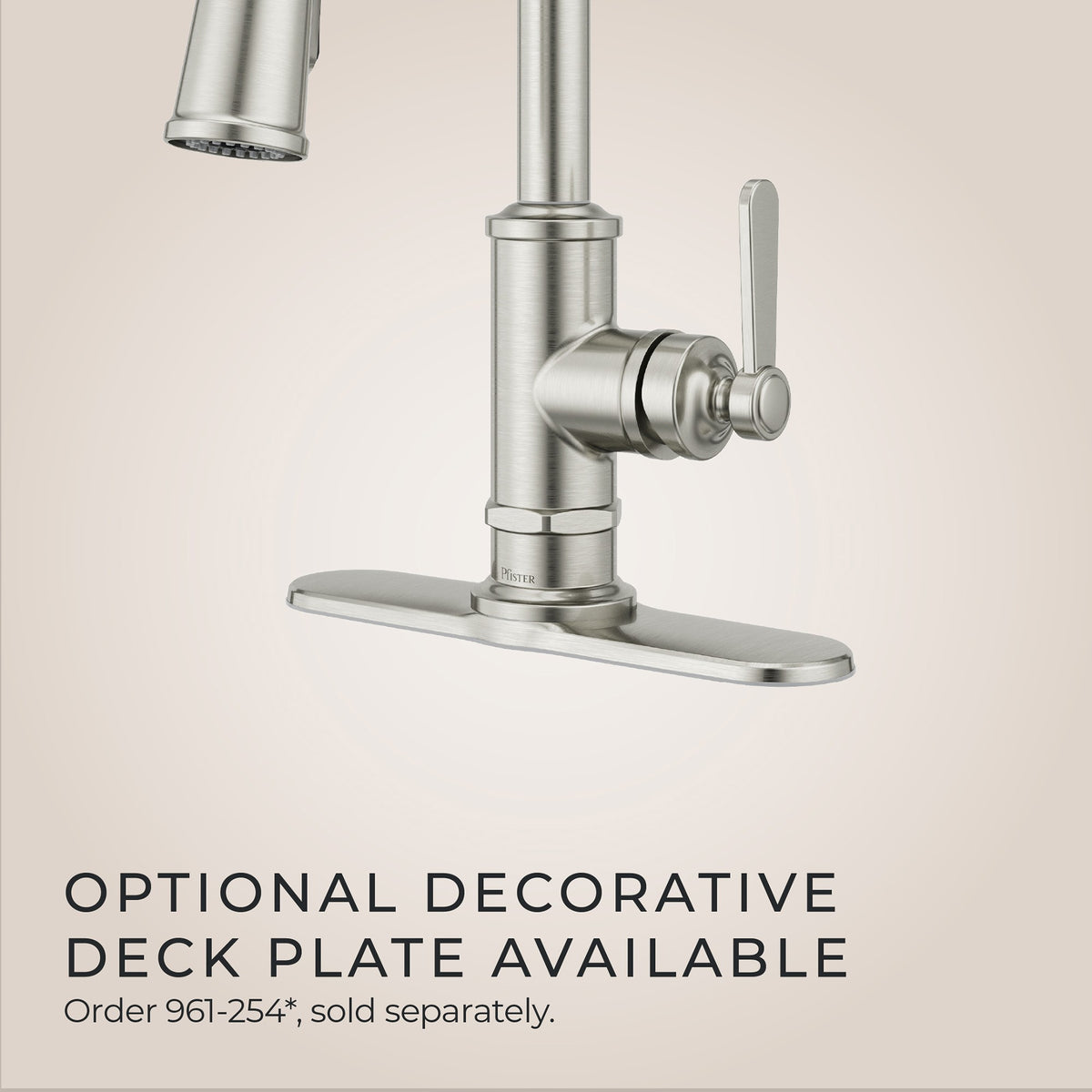

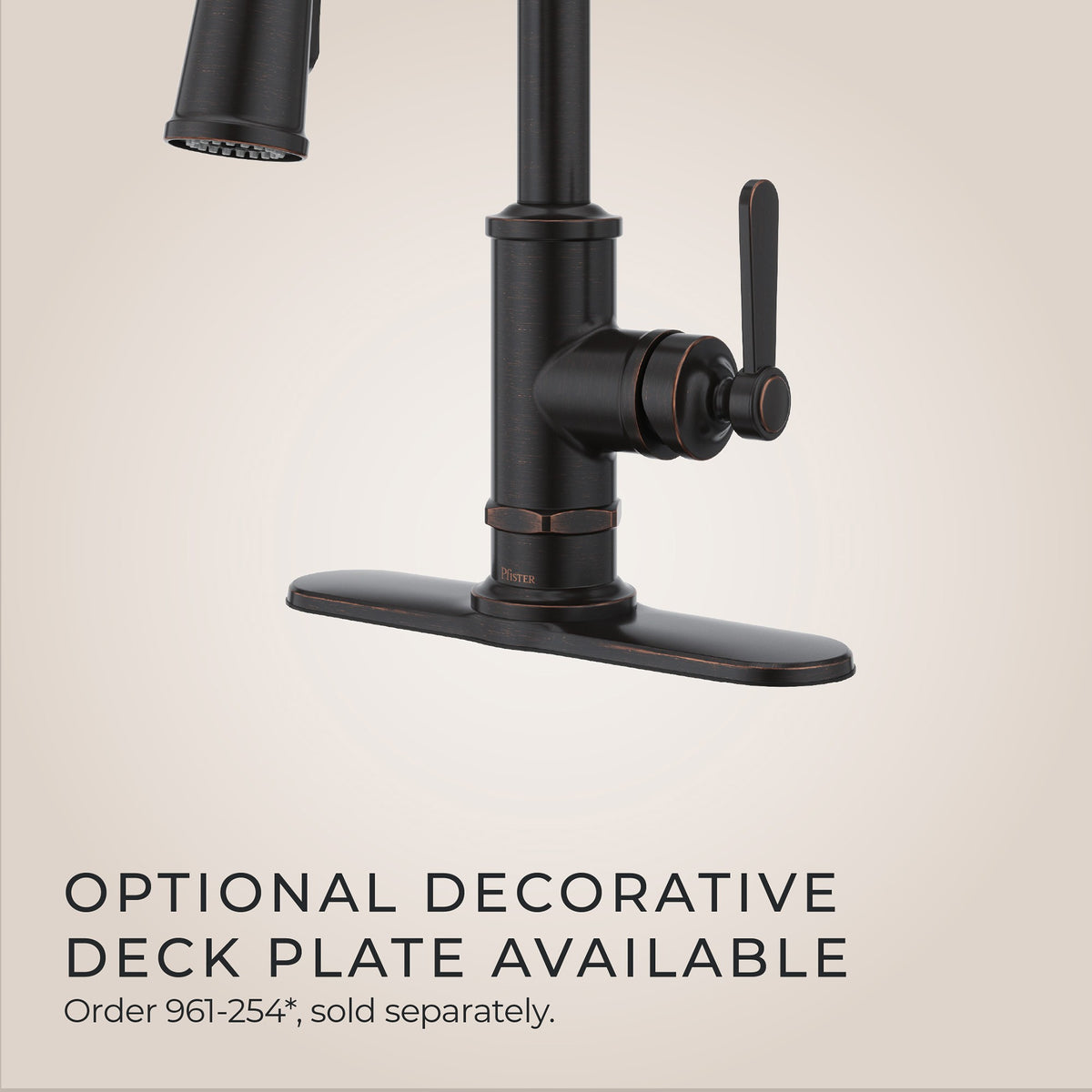

- Optional decorative deck plate sold separately
- 1-hole installation
- Decorative low-arc spout

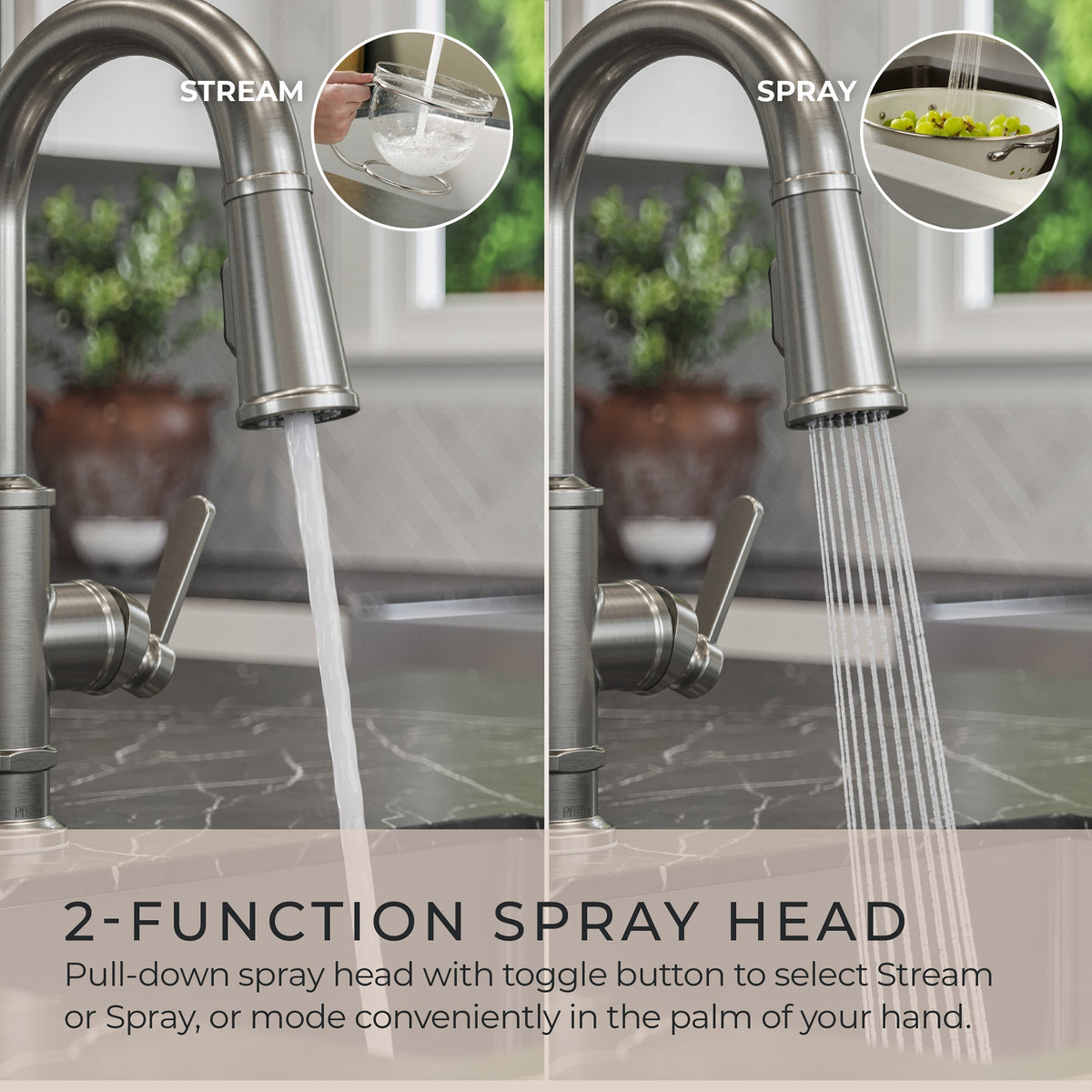

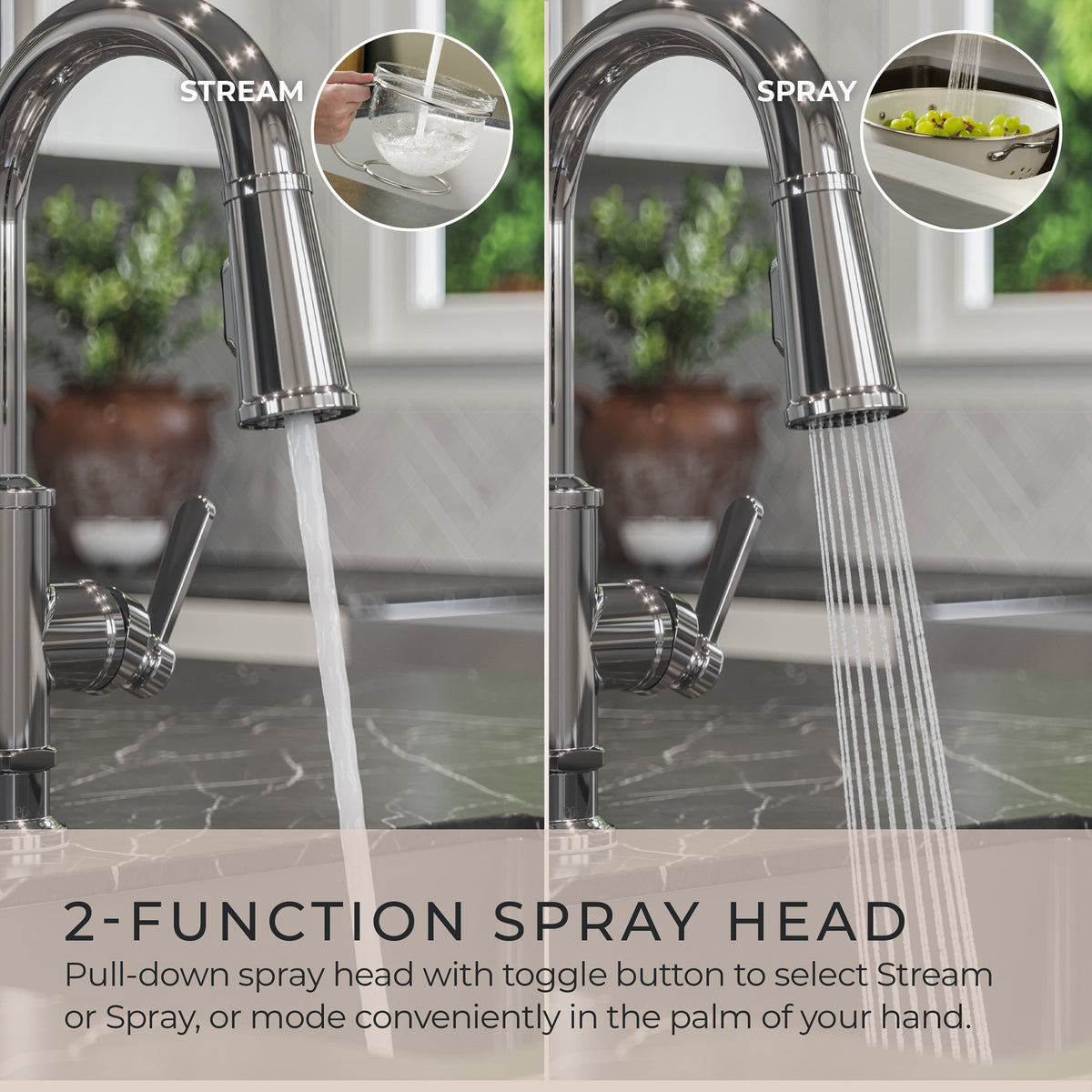

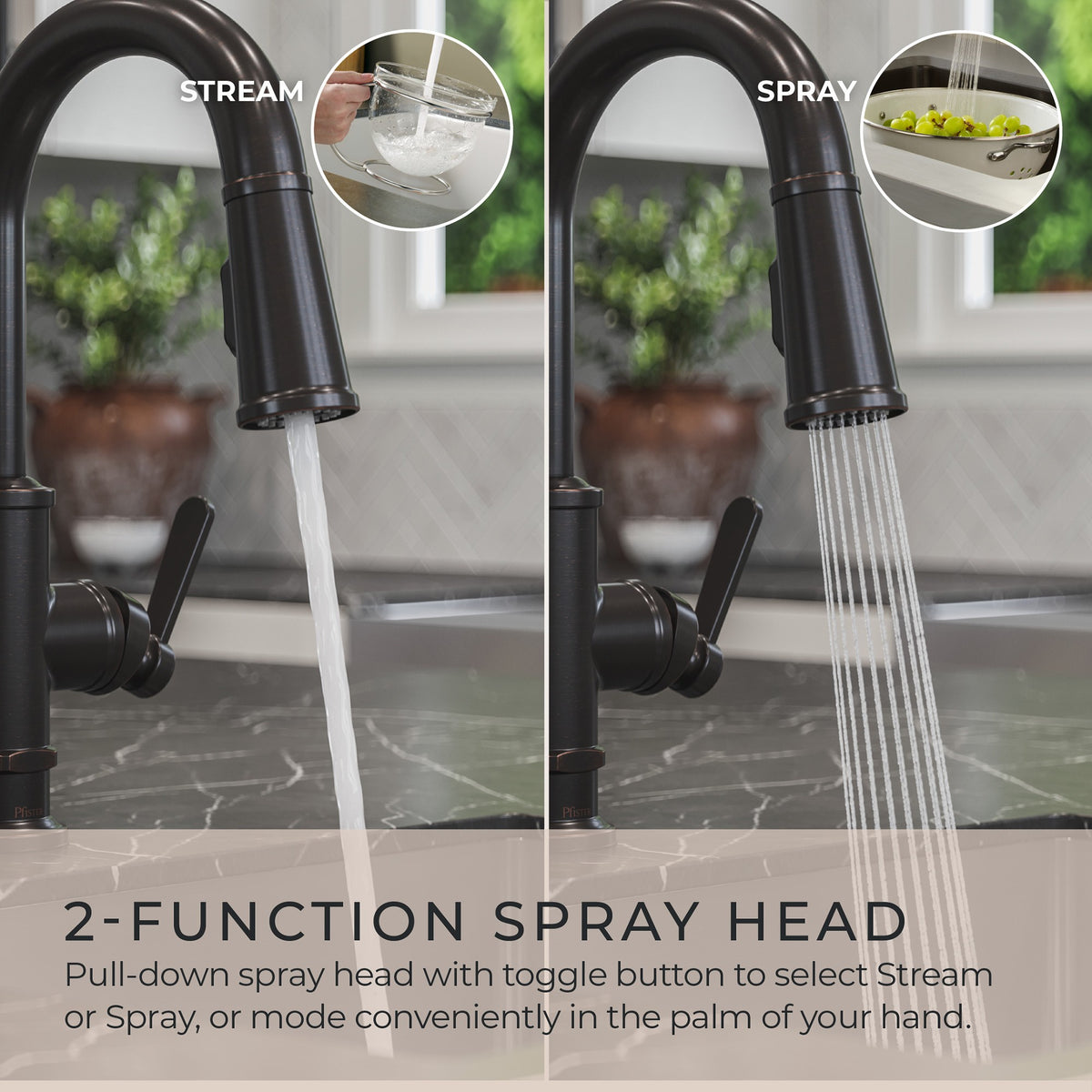

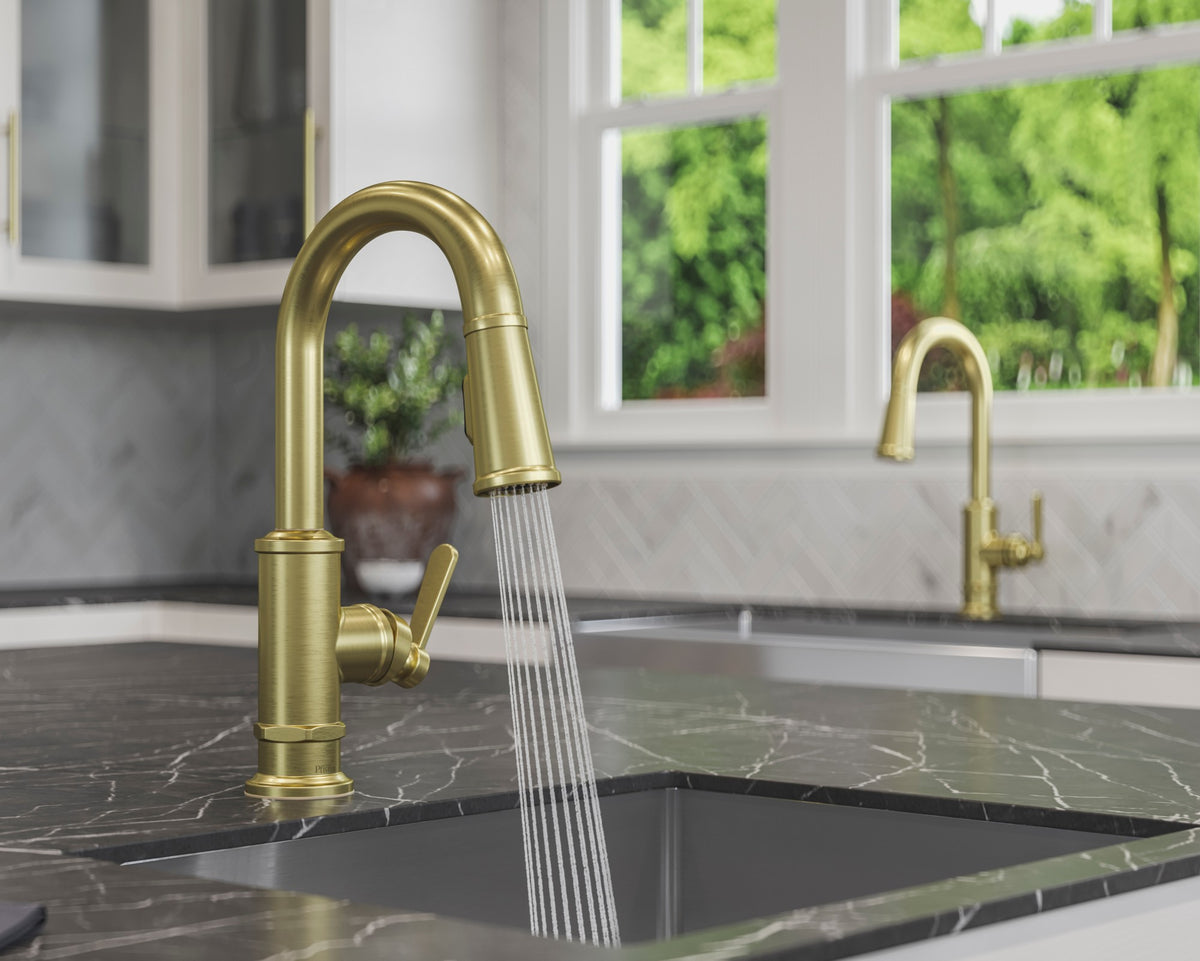

- Pull-down spray head with toggle button to select spray or stream modes conveniently in the palm of your hand

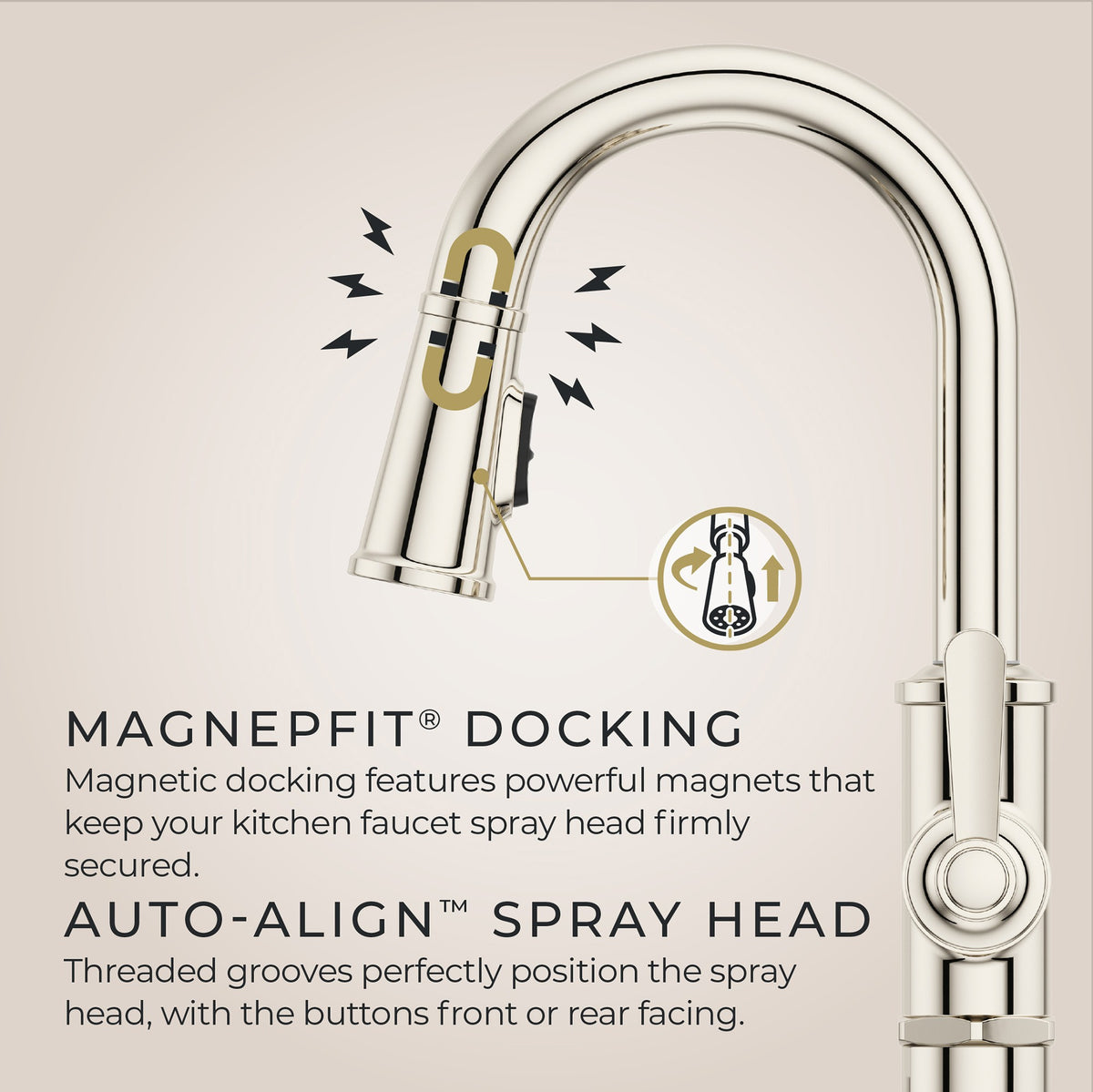

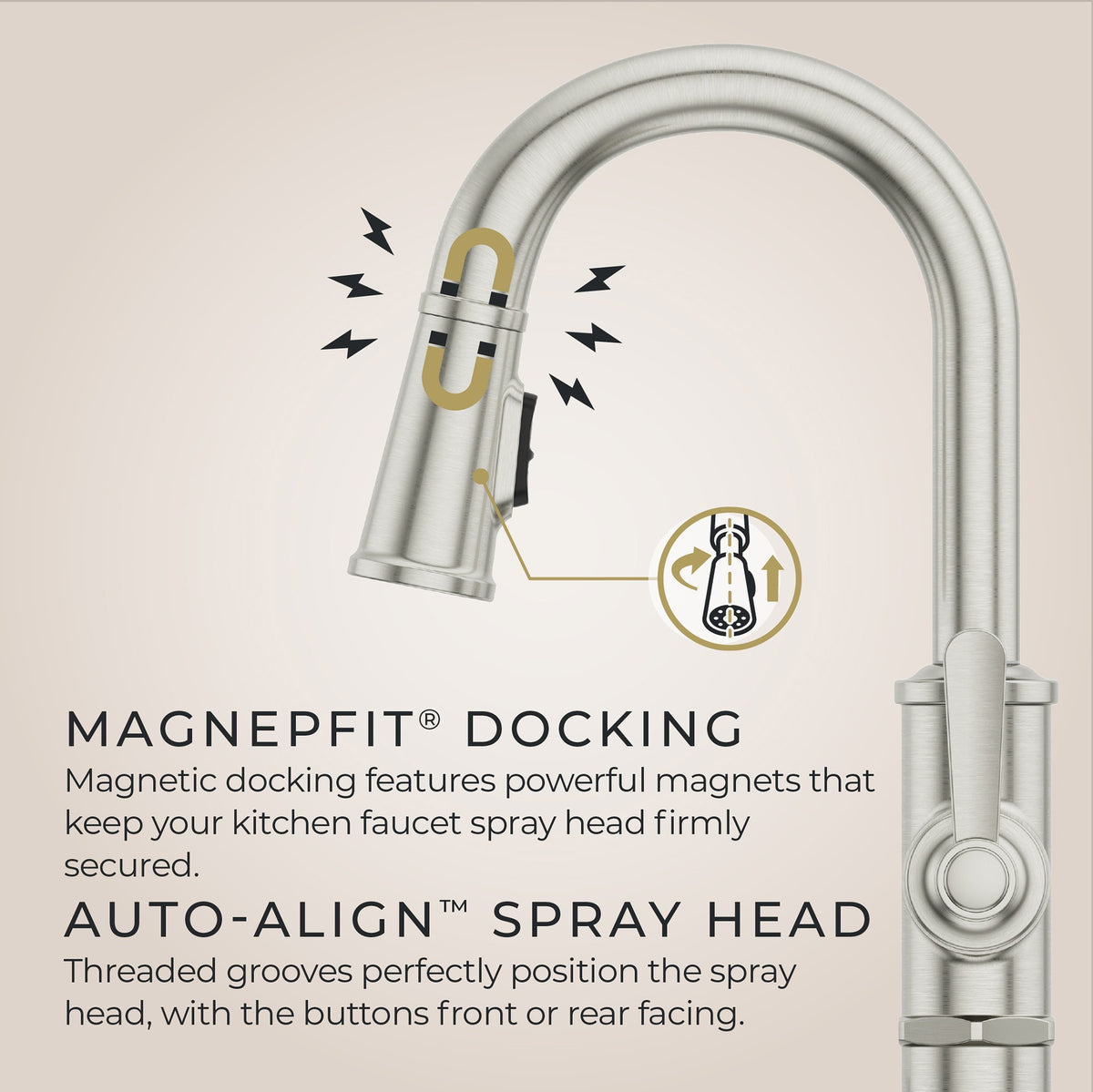

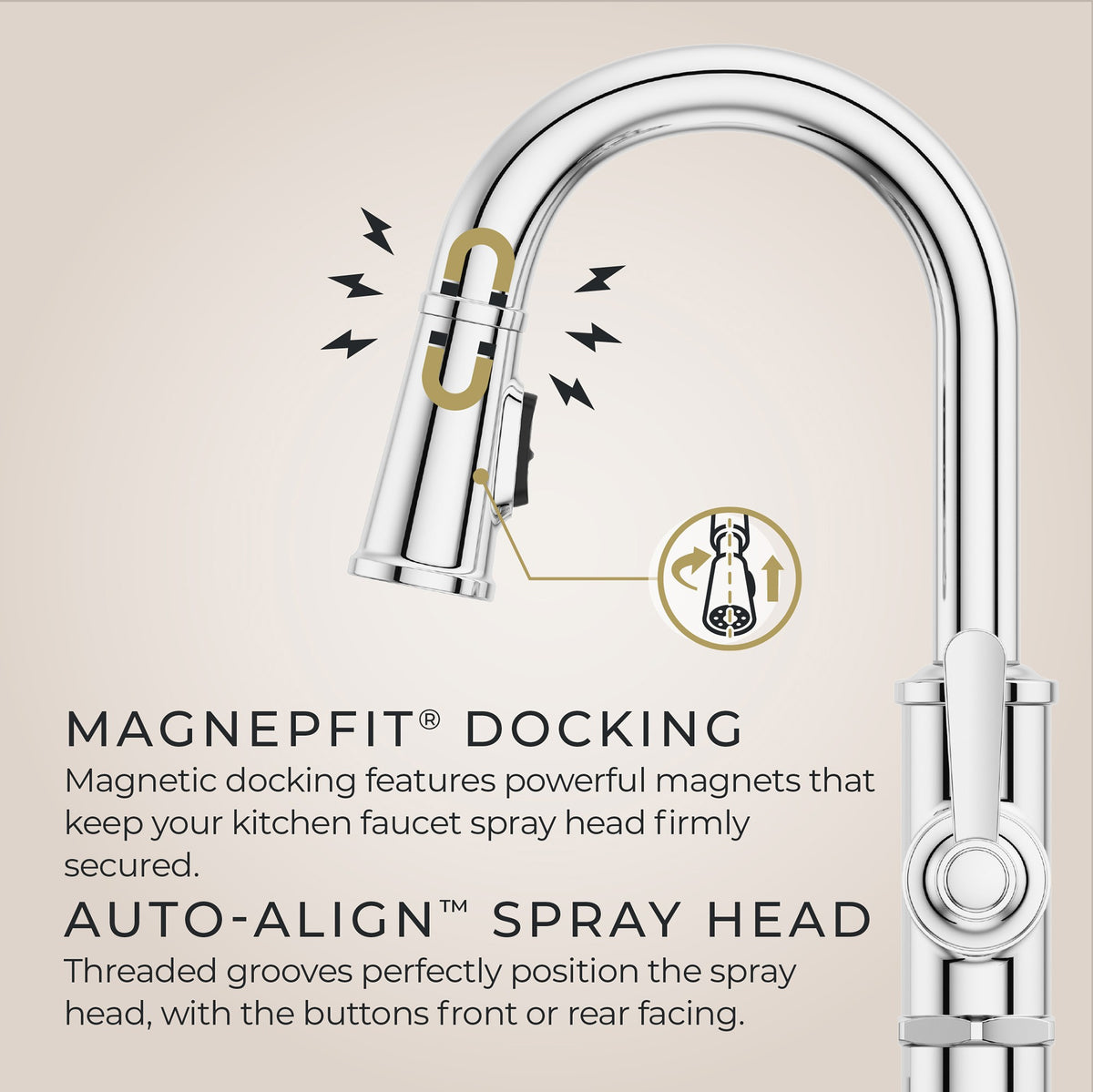

- Auto-Align™ ensures your spray head aligns correctly all on its own

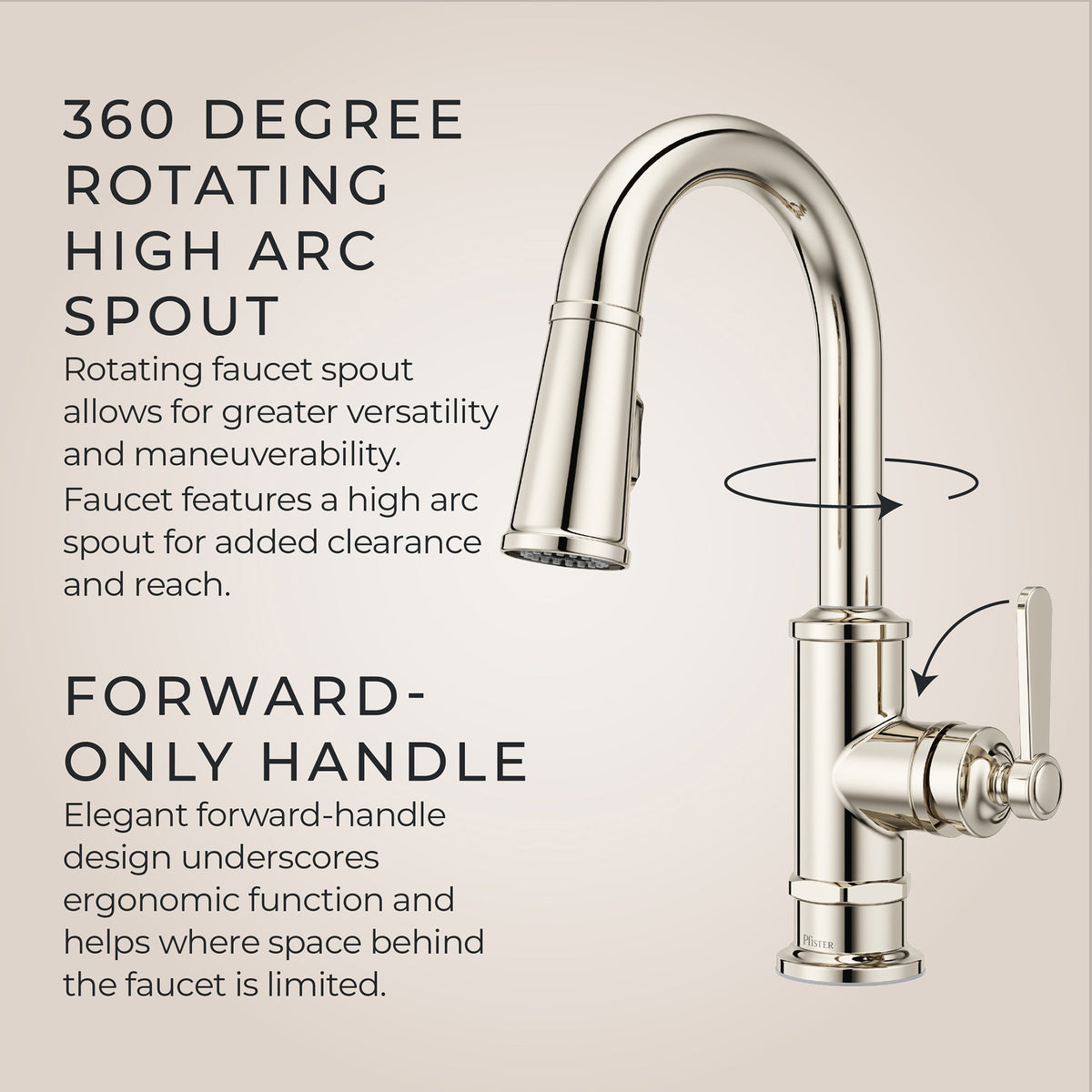

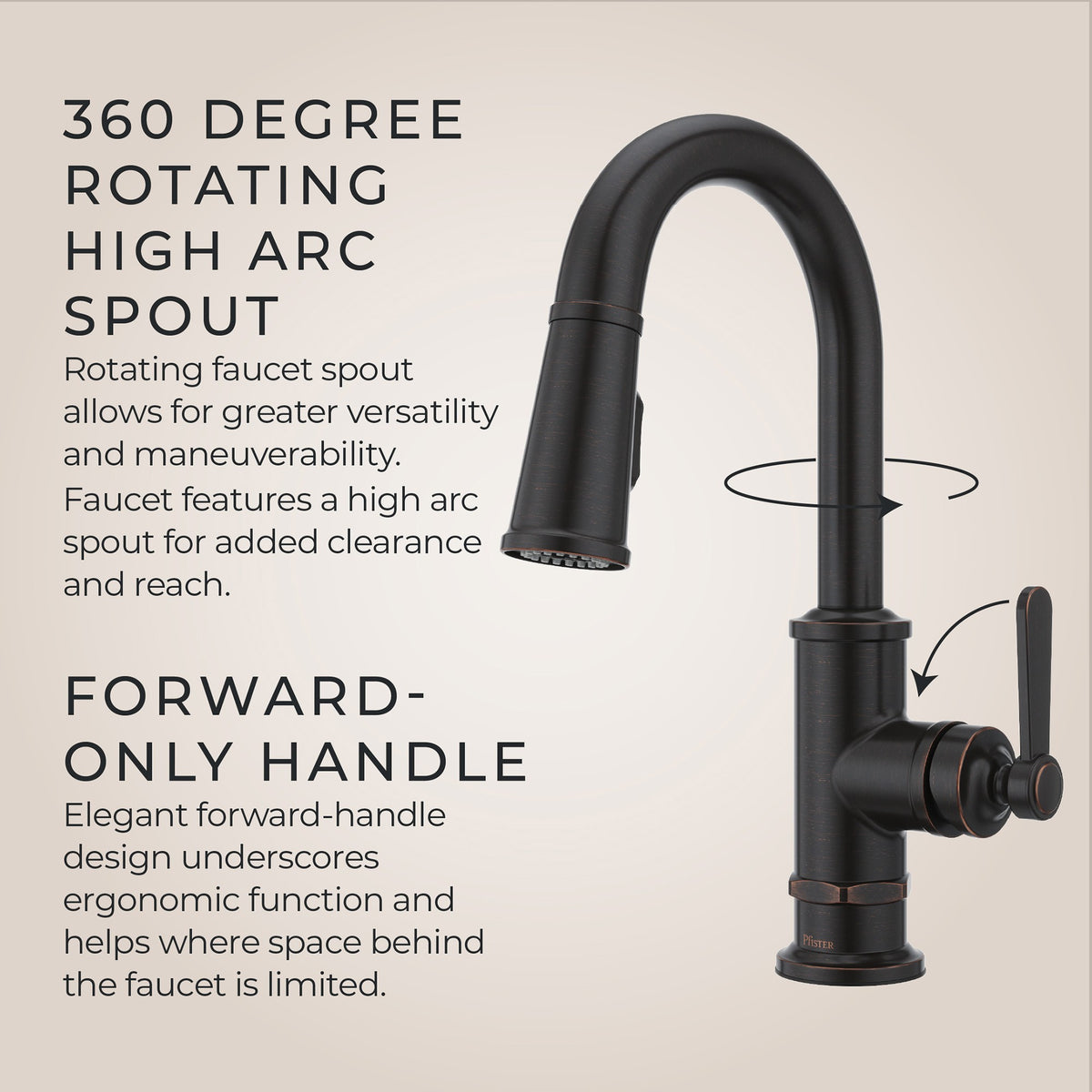

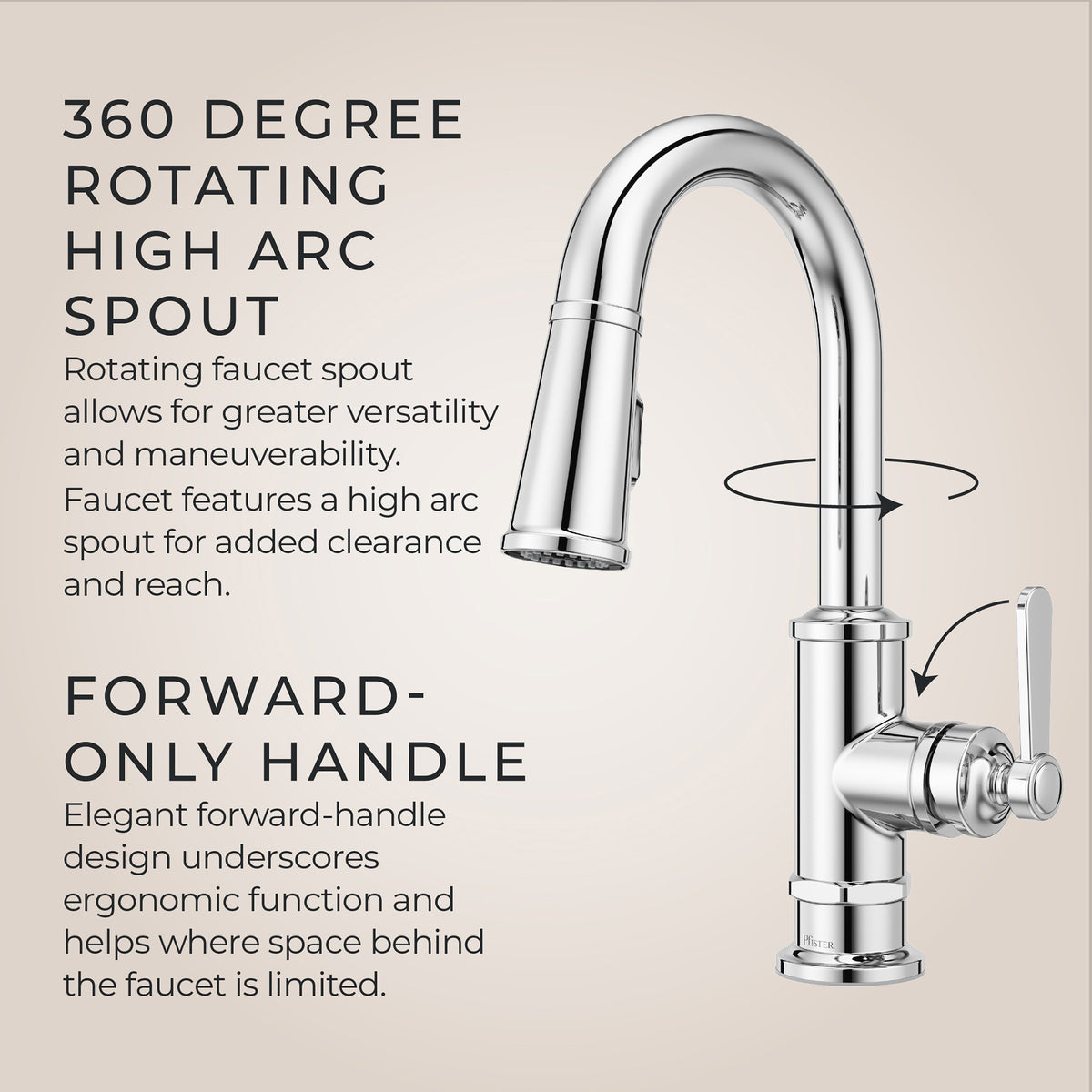

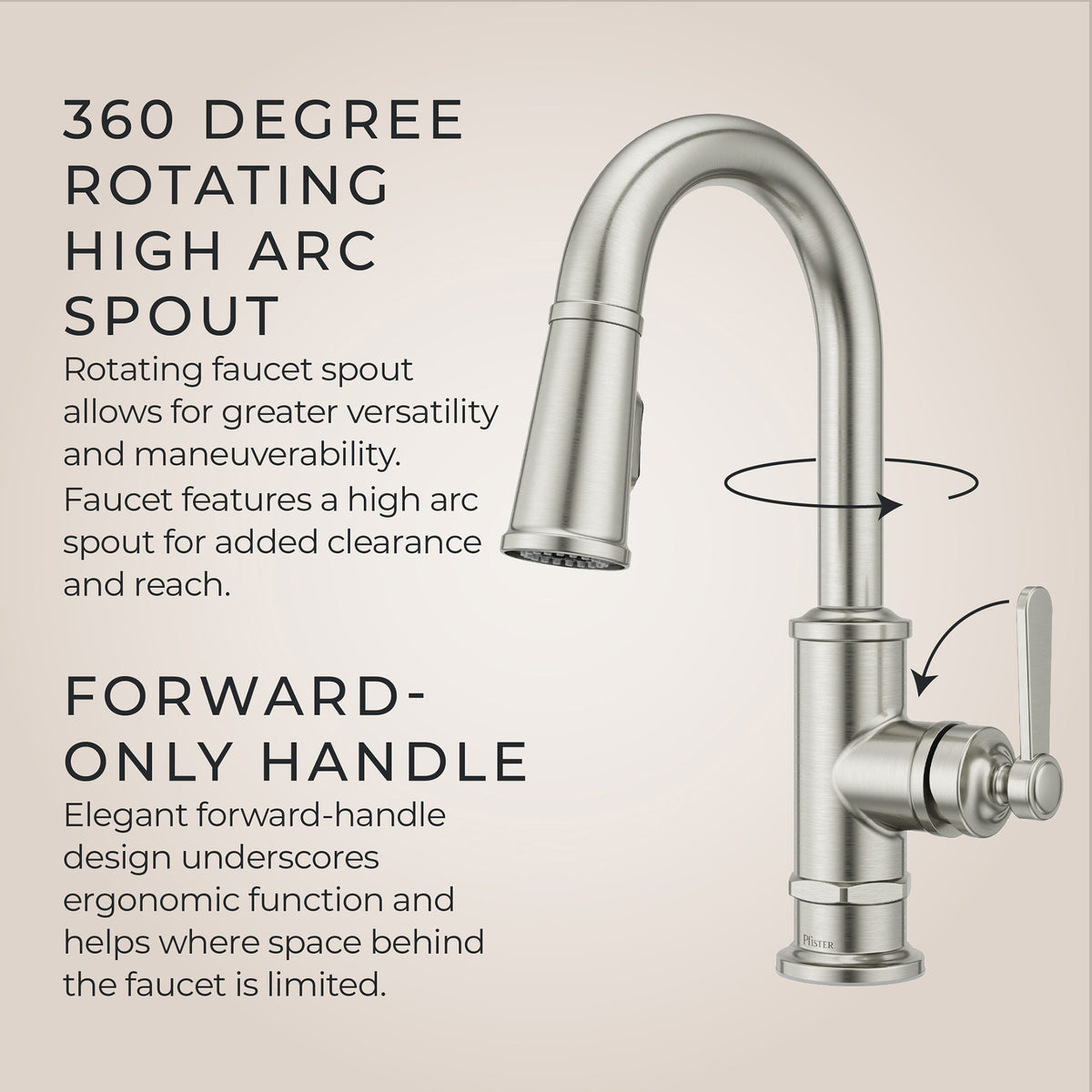

- Elegant forward handle design underscores ergonomic function and helps where space behind the faucet is limited

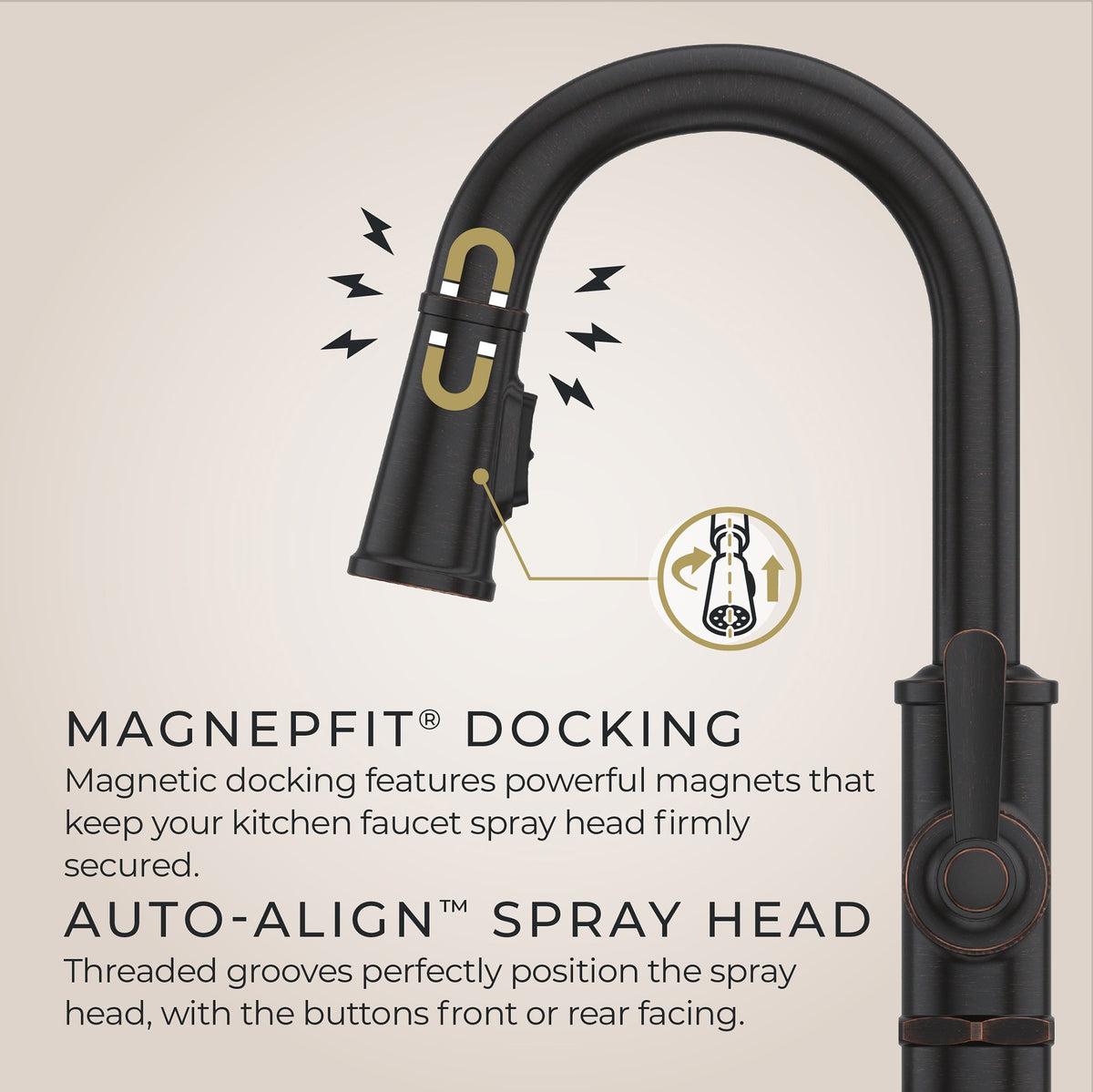

- MagnePfit™ uses powerful magnetic docking to keep your spray head firmly secured
- Spout swivels for added maneuverability
- Pfast Connect™ technology securely connects water supply lines with a quick click
- TiteSeal™ Mounting Technology eliminates the need for putty or silicone and simplifies installation
- 36 in. Integrated Flexible Nylon Supply Lines with 3/8 in. connection
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Pfister |
| Collection | Port Haven |
| Model | GT572-TD |
| Finishes | Polished Chrome, Stainless Steel, Polished Nickel, Brushed Gold, Tuscan Bronze |

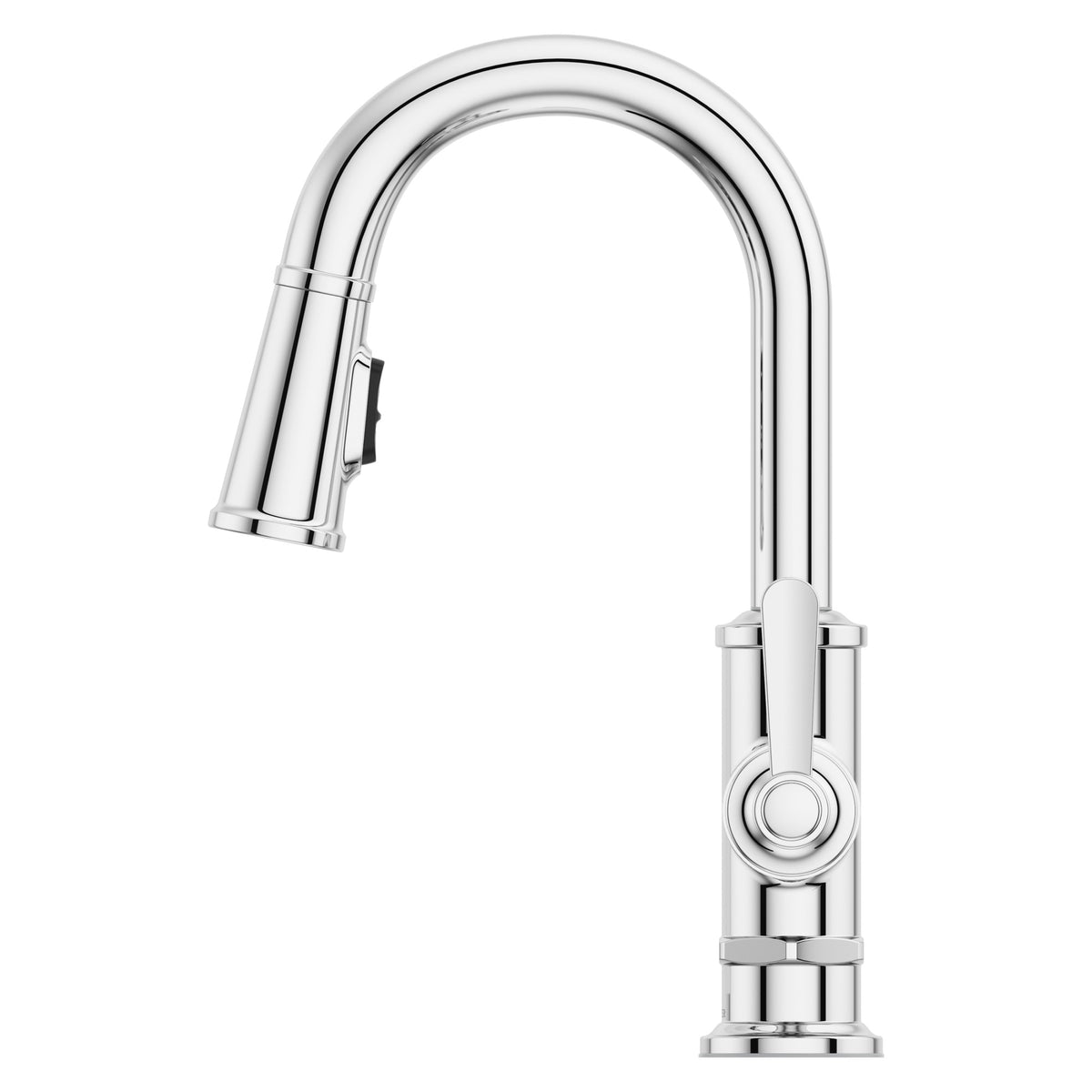

| Model - Polished Chrome | GT572-TDC |
| Model - Stainless Steel | GT572-TDS |
| Model - Polished Nickel | GT572-TDD |
| Model - Brushed Gold | GT572-TDBG |

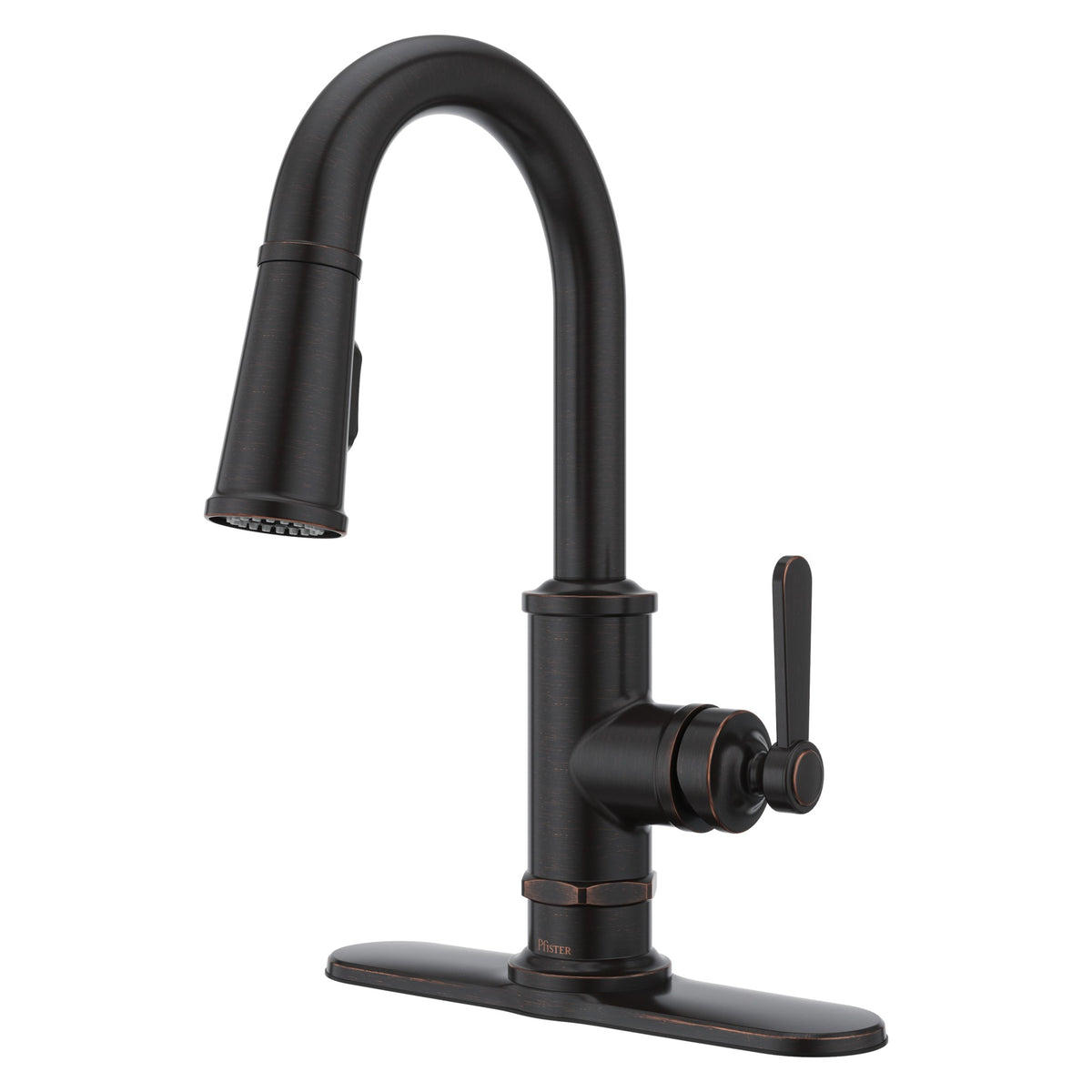

| Model - Tuscan Bronze | GT572-TDY |
| Flow Rate (GPM) | 1.8 |
| Number of Handles | 1 |

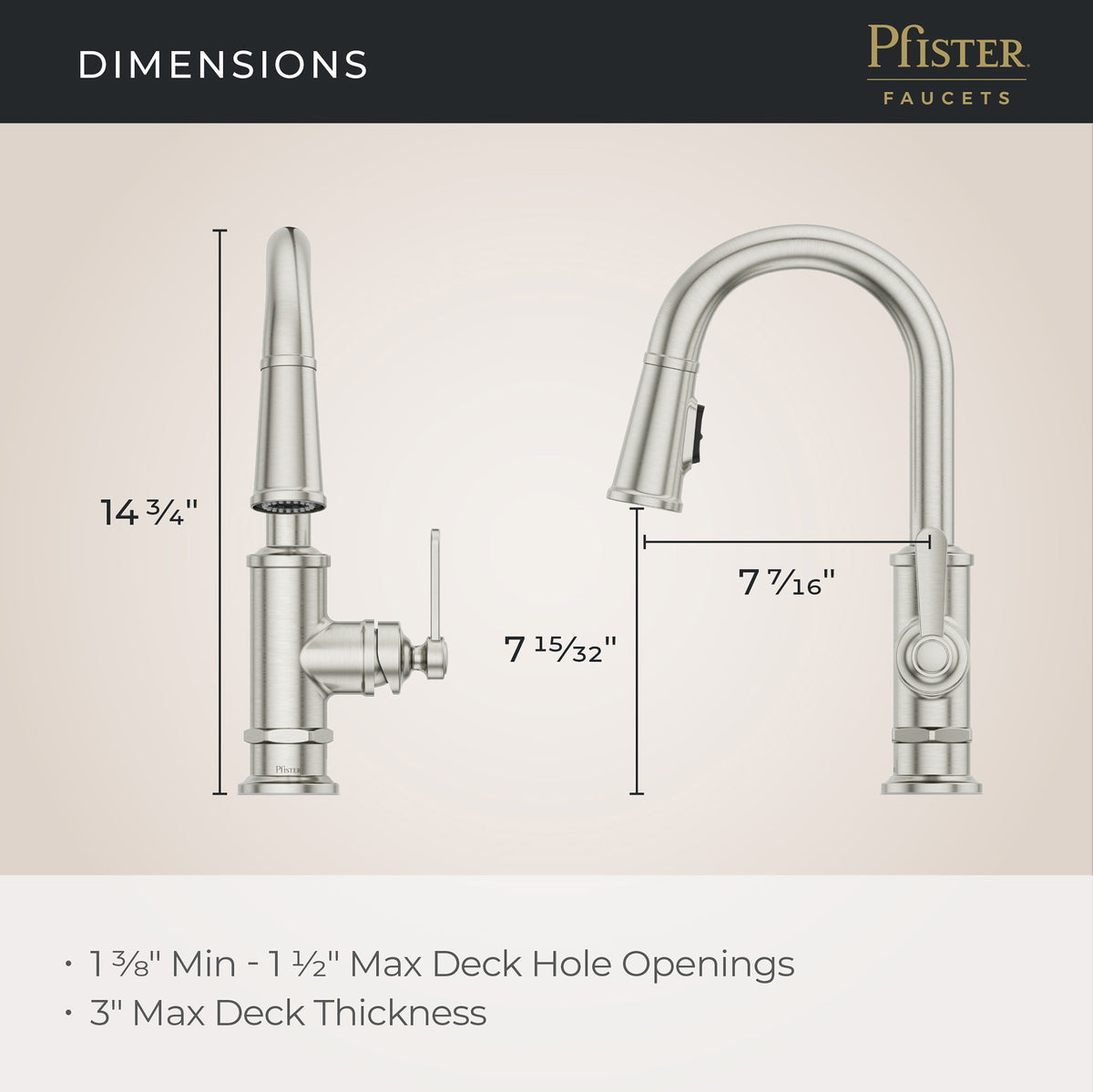

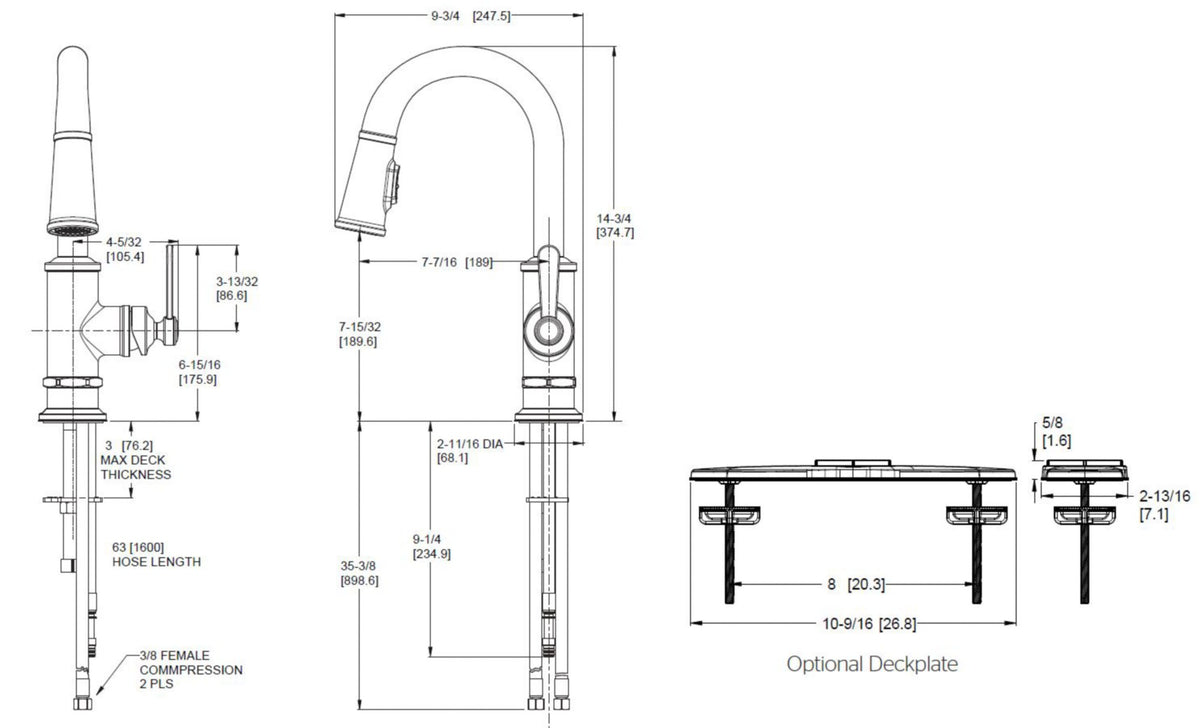

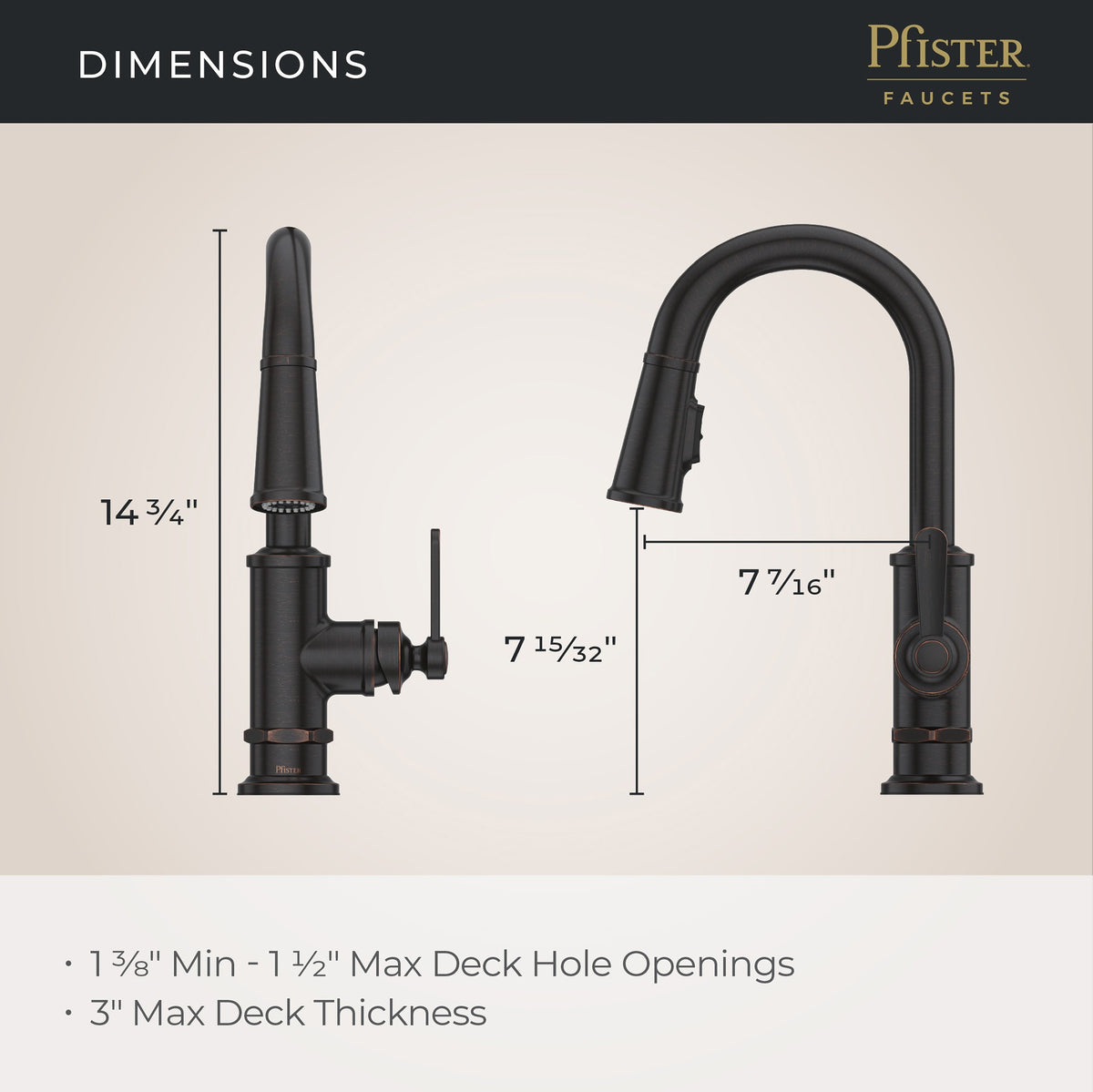

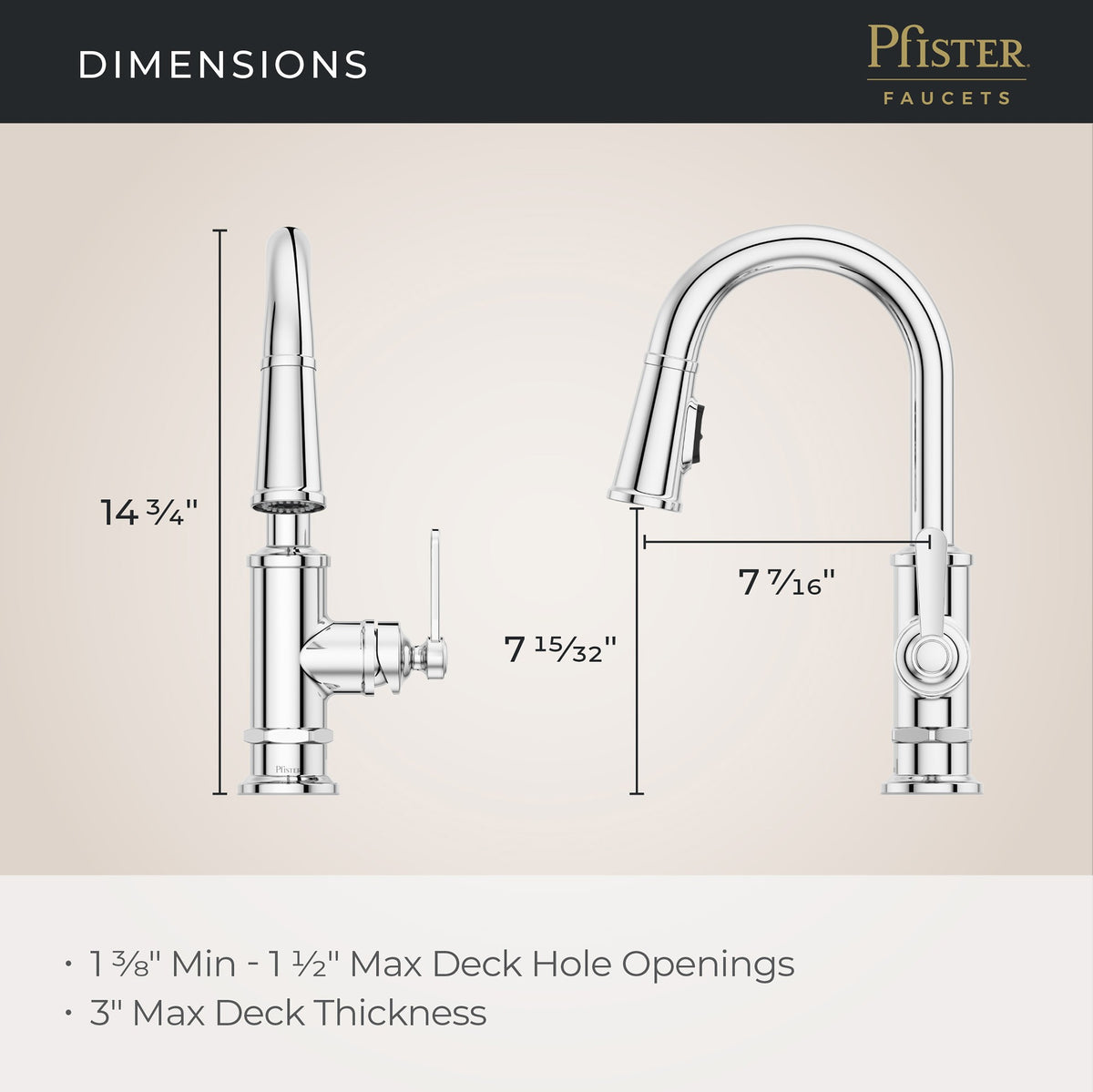

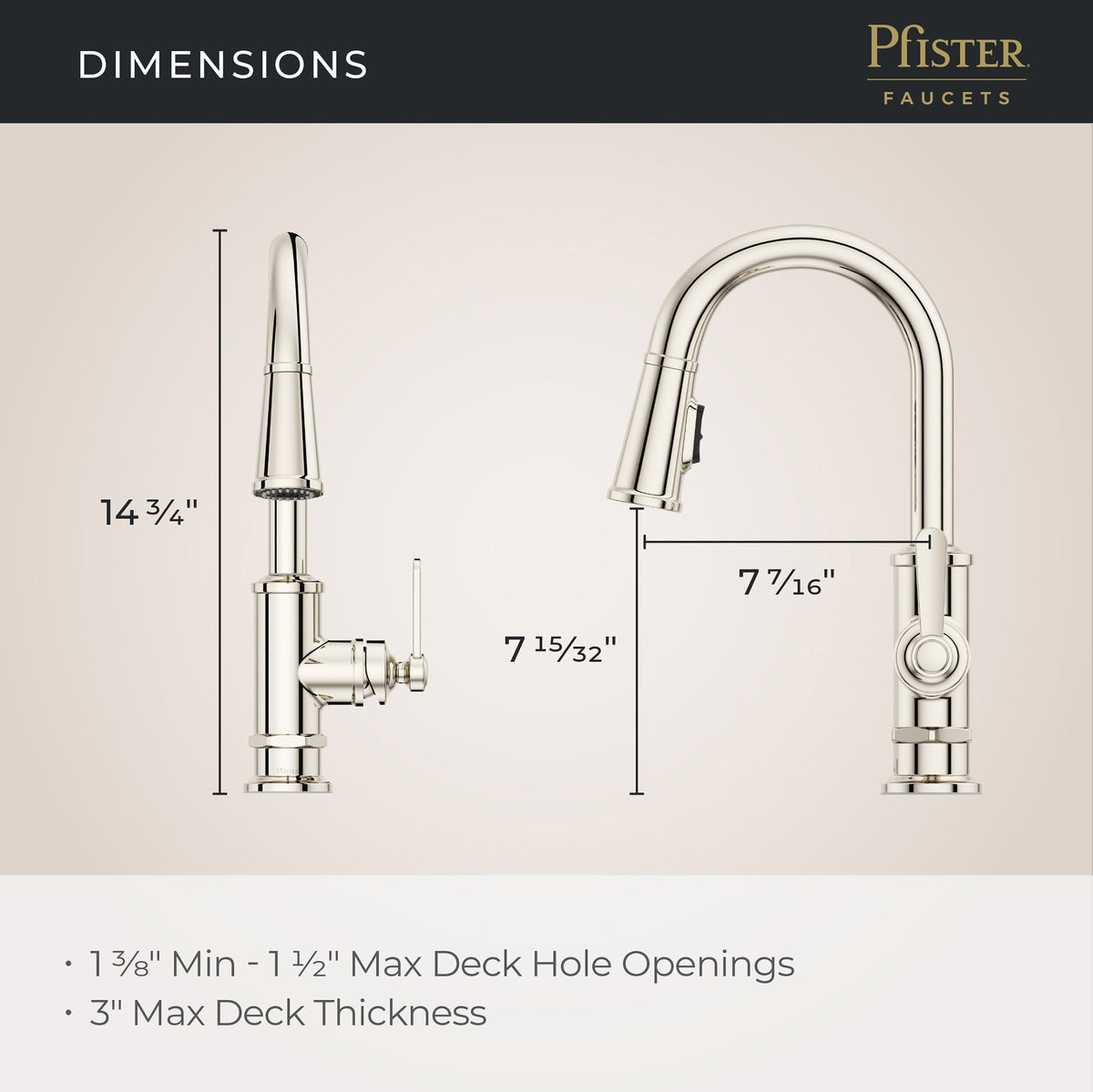

| Total Spout Height | 14-3/4 in. |
| Deck To Aerator Height | 7-15/32 in. |
| Deckplate Included | No |
| Max Deck Thickness | 3 in. |
| Soap Dispenser | No |
| Connection Size | 3/8 in |
| Supply Lines | Nylon Flex-Line |
| Faucet Arc Type | Low-Arc |
| Certifications / Code Compliance | ADA Compliant; CEC Certified; IAPMO Certified to ASME A112.18.1/CSA B125.1; NSF/ANSI/CAN 61: Q≤1 |
| Warranty | Pfister Pforever Warranty – covers finish and function for as long as you own your home (registration required; see warranty page) |
Documents & Downloads
- Specification Sheet (PDF)
- Installation Guide (PDF)
- Maintenance / Care Guide (PDF)
- Parts Diagram (PDF)
- Pfister Warranty Information
- Pfister Care & Cleaning
Special Order – Estimated 1–2 Weeks for Pickup or Dispatch.
