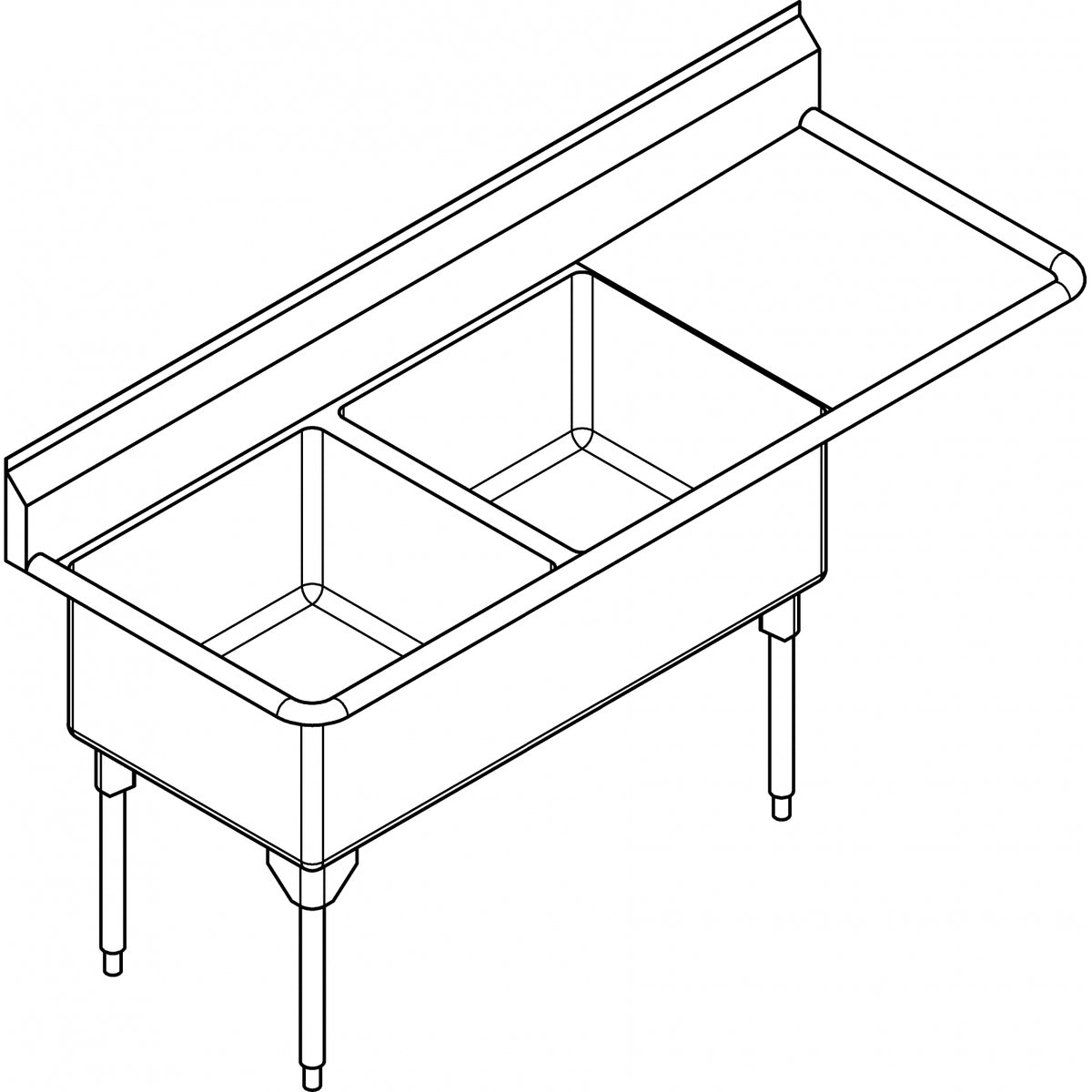

Franke Commercial World Class Series Scullery, double, right drainboard | WDL2436R-1

The Franke Commercial WDL2436R-1 is a scullery sink from the Franke Commercial range: World Class Series Scullery, 14ga, double, right drainboard.

Double compartment "World Class Series" scullery sink. These sculleries are free standing scullery sinks fabricated from heavy 14 gauge (2.0 mm) type 304 (CNS 18/10) stainless steel. and designed for hygiene and food safety. Polished to a #4 satin finish. Finished with a rolled rim. Bowls have an extra piece of stainless steel welded as an apron in front to hide the gap inbetween bowls for ease of cleaning and a more refined look. Left or right drainboard sloped toward bowl.

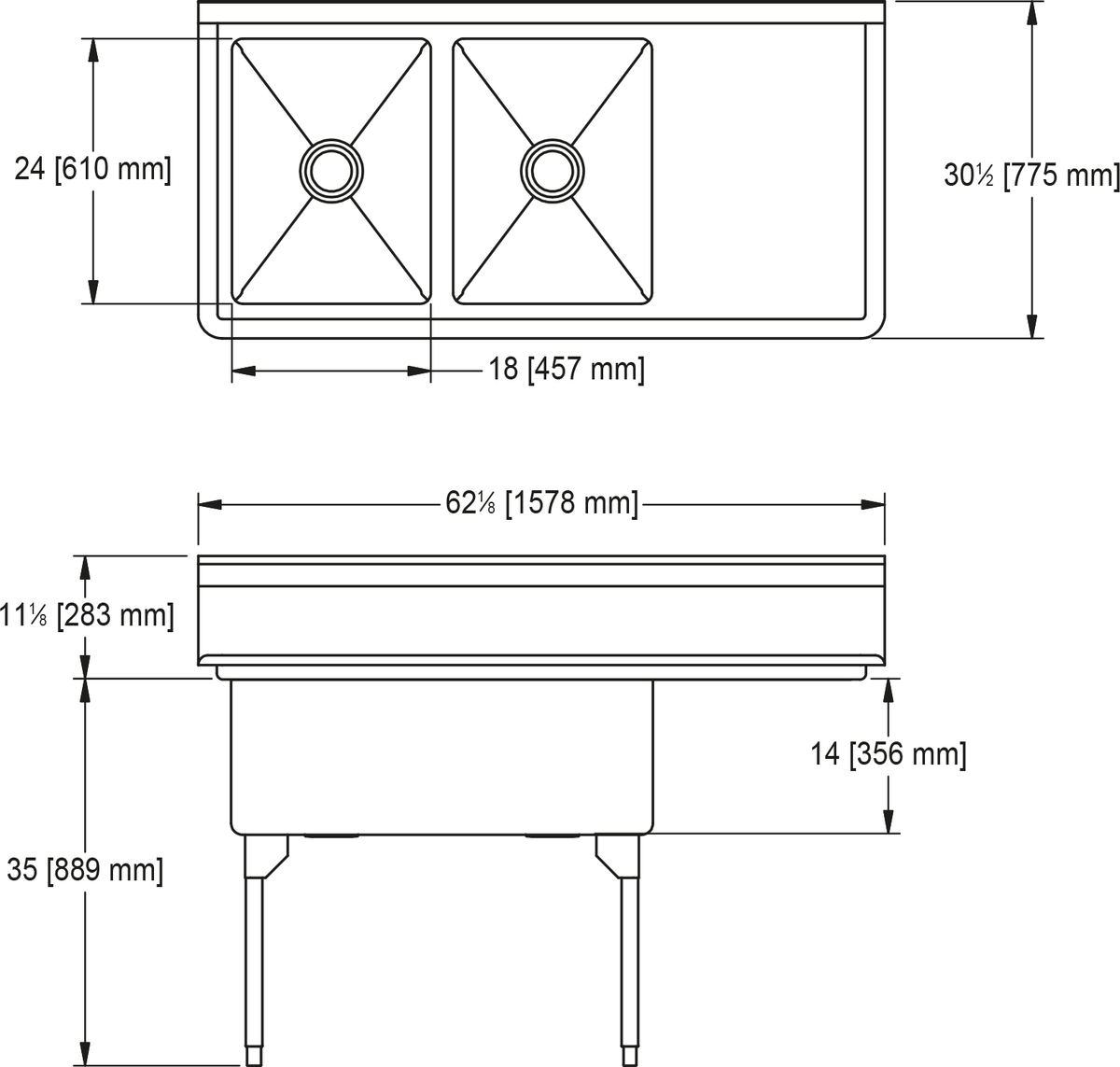

Specifications

• Overall width (left to right): 62-1/8"
• Overall depth (front to back): 30-1/2"
• Overall height: 44-1/16"
• Floor to rim height: 35-1/16"
• Bowl width: 18"
• Bowl depth (front to back): 24"
• Bowl depth: 14"
• Bowls: 2
• Installation: On legs
• Gauge: 14
• Material: Type 304
• Material code: CNS 18/10
• Finish: #4 Satin
• Waste assembly: Included
• Waste fitting: Crumb cup waste assembly
• Waste size: 3 1/2" (89mm)
• Tailpiece: 1 1/2" (38mm)
• Faucet ledge: Yes
• Faucet holes: Specify when ordering
• Drainboard: Right
• Splash: Back
• Certification: cUPC, NSF
• Franke item no.: 253.0221.304

What to know before ordering

Commercial-grade item, sold for professional food service, institutional and commercial projects. Confirm faucets, wall carriers, waste parts and other components against the product sheet before ordering; they are sold separately unless the product sheet lists them as included.

Documents

• Product / spec sheet (PDF)

Availability

This item is a special order with an estimated 4 weeks lead time per the manufacturer. It is built or ordered for you when you buy and is not stocked on the shelf. Commercial sinks are often large; shipping is calculated at checkout and heavy or oversized items ship by freight.

Warranty

Franke Commercial guarantees its products to be free of defects in material or workmanship when installed and maintained per Franke Commercial instructions. For stainless steel scullery, mop and sewage sampling sinks, the warranty period is one year, per the Franke Commercial Canada catalog. Custom and fabricated products carry one year. Work on warranty items must be done through Franke technical support. Full terms are in the Franke warranty information and the Franke Commercial catalog.
