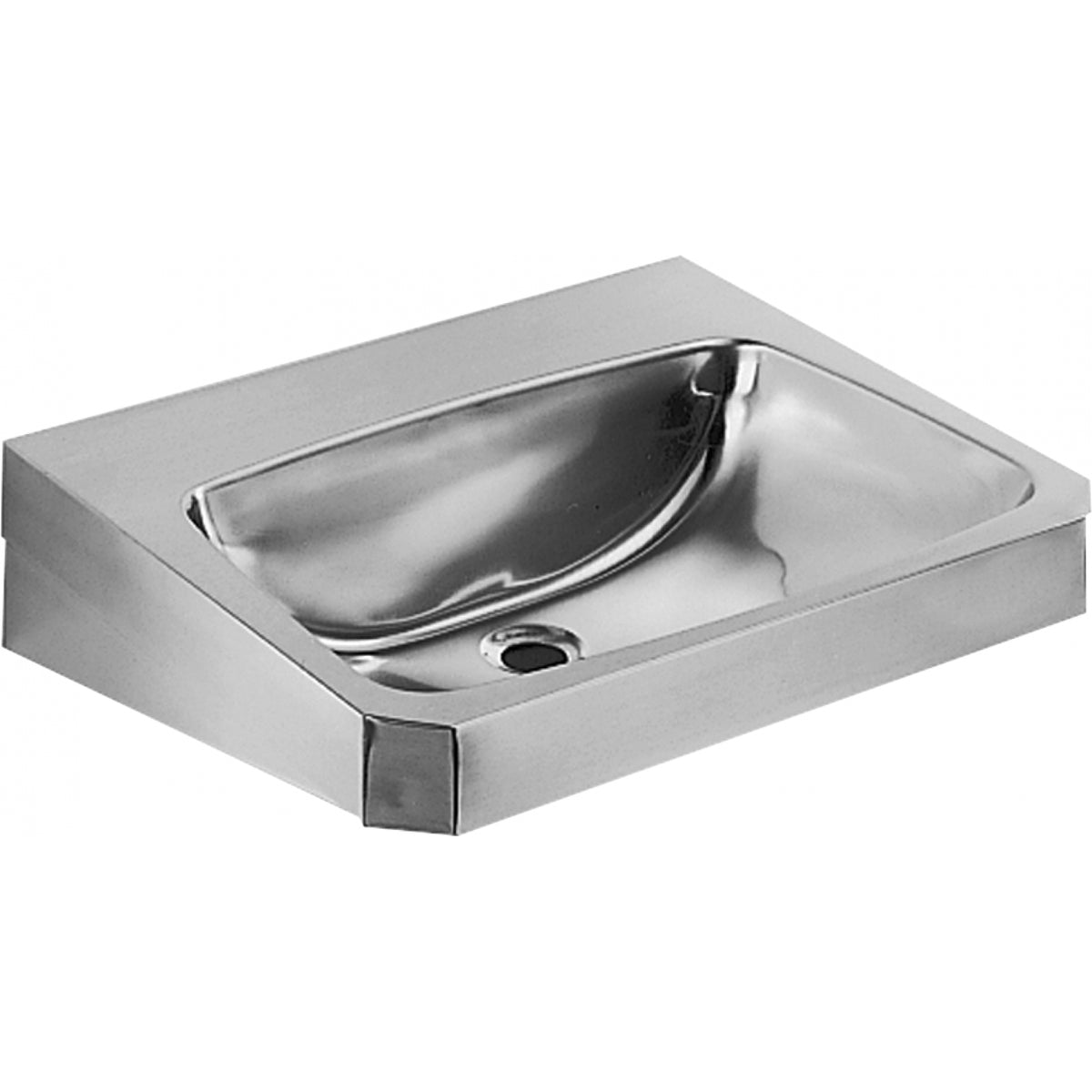

Franke Commercial Wall Hung Wash Basin | WT600C-7

The Franke Commercial WT600C-7 is a hand wash basin from the Franke Commercial range: Wall Hung Wash Basin, 19ga.

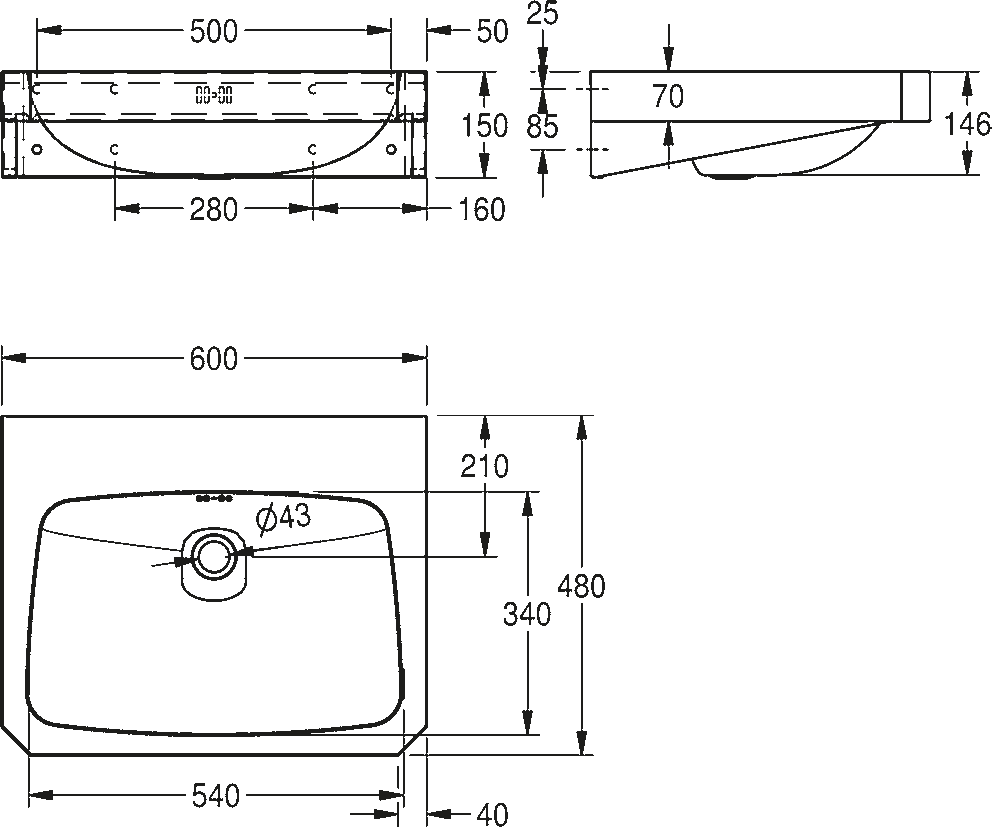

Single wash basin for wall mounting, stainless steel, surface satin finished, material thickness 1 mm (19 gauge), seamless welded bowl with diameter. 550x350x145 mm, rectangular shape, 90 mm tap ledge, front panel with 45° corner edges, prewelded mounting brackets, distance between the Centre lines of the fixing holes conform to EN 31, including screws and dowels. Wheelchair accessible: meets ADA (Americans with disabilities act guidelines) and ANSI A117.1 (Accessible and usable buildings and facilities). Check local codes to ensure compliance. Optional shroud also available: WT-RS. No overflow, accepts 1 1/4" (32 mm) waste - not included.

Specifications

• Overall width (left to right): 23-5/8"
• Overall depth (front to back): 18-7/8"
• Overall height: 5-7/8"
• Bowl width: 21-1/4"
• Bowl depth (front to back): 13-3/8"
• Bowl depth: 5-3/4"
• Bowls: 1
• Installation: Wall mount
• Gauge: 19
• Material: Type 304
• Material code: CNS 18/10
• Finish: Satin
• Waste assembly: Not included
• Waste size: 1 1/4" (32mm)
• Faucet holes: Specify when ordering
• Splash: None
• Overflow: No
• Wheelchair accessible: Yes
• Certification: cUPC
• Franke item no.: 214.0493.313

What to know before ordering

Commercial-grade item, sold for professional food service, institutional and commercial projects. Confirm faucets, wall carriers, waste parts and other components against the product sheet before ordering; they are sold separately unless the product sheet lists them as included.

Documents

• Product / spec sheet (PDF)

Availability

This item is a special order with an estimated 1 to 2 weeks lead time. We do not carry it on the shelf; it is ordered for you when you buy. Shipping is calculated at checkout. Heavy or oversized items ship by freight.

Warranty

Franke Commercial guarantees its products to be free of defects in material or workmanship when installed and maintained per Franke Commercial instructions. For this product, the warranty period is one year or as stated in the Franke Commercial catalog (product-specific), per the Franke Commercial Canada catalog. Custom and fabricated products carry one year. Work on warranty items must be done through Franke technical support. Full terms are in the Franke warranty information and the Franke Commercial catalog.

Spec Sheet

Special Order 1 to 2 Weeks
