A toilet that keeps running, flushes weakly, or leaks into the bowl often has a problem at the flush valve. For homeowners, renovators, and facility managers, understanding what is a flush valve makes it much easier to identify the correct replacement part or specify the right fixture for a new washroom.
In a residential toilet tank, the flush valve is the assembly that releases stored water from the tank into the bowl. In commercial washrooms, the same term can also refer to a flushometer valve: the exposed or concealed control valve that delivers water directly from the building supply. They perform the same basic job - initiating a controlled flush - but their construction, installation requirements, and replacement parts are very different.
What Is a Flush Valve in a Toilet?
A standard gravity-fed toilet has a tank mounted behind the bowl. When the flush handle, button, or actuator is pressed, it lifts or opens the flush valve. Water moves quickly through the opening at the bottom of the tank, enters the bowl, and carries waste through the trapway and drain line.
The valve then closes so the tank can refill. The refill valve restores the water level, while the flush valve holds that water in place until the next flush. These two parts are often confused, but they solve different problems. A refill valve controls incoming water; a flush valve controls the release of water from the tank.
Most tank-style flush valve assemblies include a valve seat, overflow tube, sealing component, mounting nut, and gasket. Depending on the toilet design, the sealing component may be a rubber flapper or a canister-style seal. The trip lever, chain, push-button linkage, or electronic actuator operates the assembly.
A worn seal is one of the most common causes of a toilet that runs intermittently. Water seeps past the valve seat and into the bowl, lowering the tank level and triggering the refill valve. Replacing a flapper or canister seal can often correct the issue without replacing the entire toilet.
Flush Valve Sizes and Why They Matter
Flush valves are not one-size-fits-all. The opening in the bottom of a toilet tank is commonly 2 inches or 3 inches, although some proprietary toilet systems use a different configuration. The measurement refers to the valve outlet size, not necessarily the visible width of the flapper or gasket.
A larger valve opening can move water from the tank to the bowl more quickly. That may support a stronger flush with a lower volume of water, but performance also depends on the bowl design, trapway, rim wash, siphon jet, and tank-to-bowl engineering. A 3-inch flush valve is not automatically better than a 2-inch model if it is not designed for that toilet.
When ordering a replacement, match the existing valve size and style, as well as the toilet manufacturer where possible. Many brands use purpose-built flappers, tower assemblies, seals, and handle linkages. Universal repair components can work in some conventional toilets, but a brand-specific replacement is usually the safer choice for proprietary designs, dual-flush toilets, and premium fixtures.
Common Types of Toilet Flush Valves
Flapper Flush Valves
A flapper flush valve uses a hinged rubber or silicone flapper attached to the overflow tube. Pressing the handle lifts the flapper with a chain, allowing water to leave the tank. As the tank empties, the flapper drops back onto the valve seat and forms a seal.
This is the familiar design found in many conventional toilets. It is affordable, easy to service, and widely available. Its limitation is that flappers can warp, become coated with mineral deposits, or lose flexibility over time. Chain adjustment also matters: too much slack can prevent a full flush, while a chain that is too tight can stop the flapper from sealing completely.
Canister or Tower Flush Valves
A canister valve, sometimes called a tower valve, lifts vertically rather than swinging open on a hinge. Water flows around the full circumference of the valve, creating a larger opening than many standard flapper systems.
These assemblies are common in modern high-efficiency toilets and are frequently paired with push-button or dual-flush actuation. They can provide consistent flushing performance, but replacement seals and canisters must match the manufacturer’s system. Before purchasing, confirm the model number and inspect how the valve connects to the tank and actuator.
Dual-Flush Valves
Dual-flush valves provide separate flush volumes for liquid and solid waste. In Canada, they are often used in water-efficient toilets with buttons mounted on the tank lid or top-mounted actuator plates. A partial flush uses less water, while a full flush releases the larger volume needed for solids.
These valves help reduce water use when correctly adjusted and maintained. However, they have more moving parts than a basic flapper assembly. If a dual-flush toilet is leaking, flushing continuously, or failing to activate one flush option, inspect the seal, actuator rods, cable connections, and flush valve height before assuming the complete valve needs replacement.

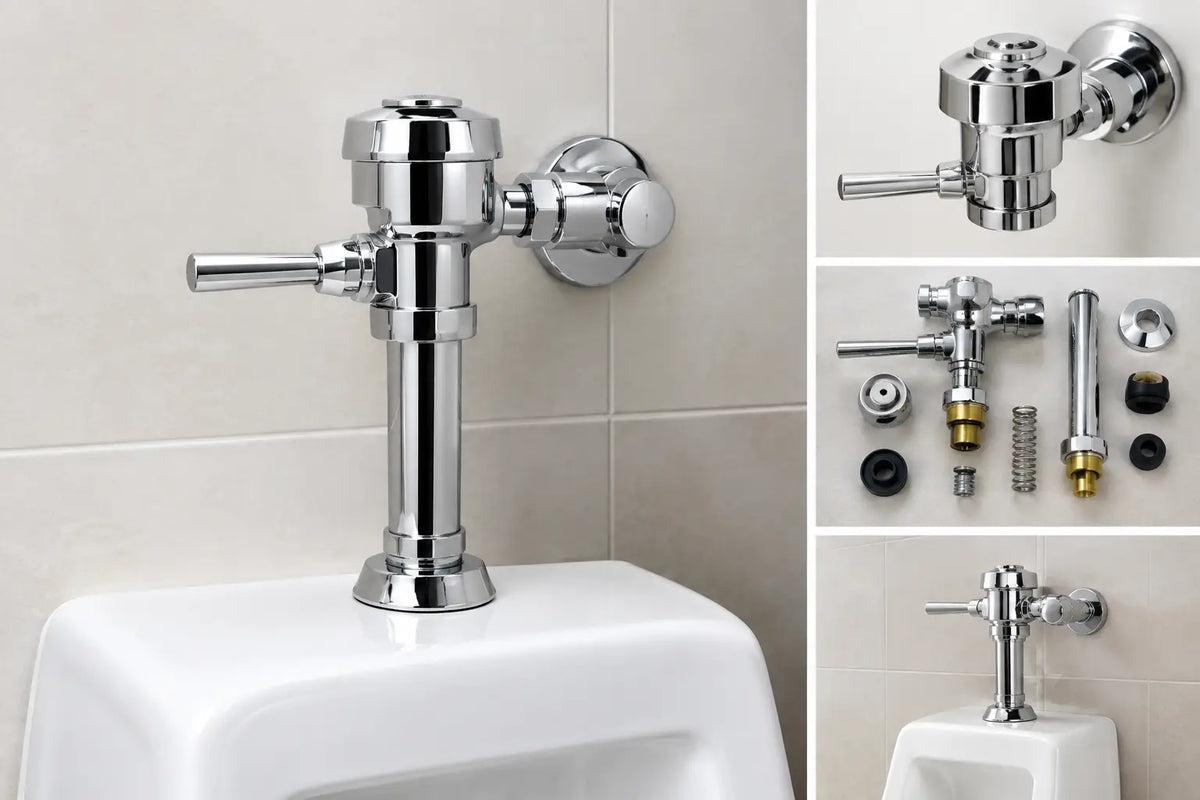

What Is a Commercial Flush Valve?
In commercial plumbing, a flush valve generally means a flushometer. Unlike a residential tank toilet, a flushometer toilet or urinal does not store flushing water in a tank. Instead, the valve connects directly to the building’s pressurized water supply and releases a measured volume when activated.
Flushometers may be manual, sensor-operated, battery-powered, hardwired, exposed, or concealed behind a wall. They are commonly specified for offices, restaurants, schools, healthcare facilities, public washrooms, and other high-traffic settings because they reset quickly and do not require a tank refill period between uses.
Commercial flush valves must be selected to suit the fixture type and available water conditions. A toilet flushometer and urinal flushometer are not interchangeable. The fixture’s required flush volume, pipe size, rough-in dimensions, control type, and supply pressure all affect compatibility. For sensor models, facility teams should also consider power access, override operation, service parts availability, and vandal-resistant construction.
Signs a Flush Valve Needs Attention
A flush valve problem is often visible before it becomes a major repair. In a tank toilet, a recurring refill sound, water movement in the bowl, poor flush strength, or the need to hold the handle down can point to a worn seal, stretched chain, damaged flapper, or failing canister assembly.
Leaks at the base of the tank may indicate a failed tank-to-bowl gasket or loose mounting hardware rather than the flush valve itself. Water on the floor around a toilet should be addressed promptly, as the source could also be the supply connection, bowl seal, or condensation.
With commercial flushometers, a valve that will not stop flushing, flushes too weakly, or activates inconsistently may need a diaphragm, piston, solenoid, sensor, or control-stop adjustment. These systems are serviceable, but their internal components must match the valve manufacturer and model. Shut off the water supply before servicing any flush valve, and use a qualified plumber when working with commercial water pressure or concealed installations.
Choosing the Right Replacement
The fastest way to avoid a return or installation delay is to identify the existing component before shopping. For a residential toilet, remove the tank lid and note the toilet brand, model number, valve style, flush valve diameter, and actuation method. Take a photo of the assembly and measure only after shutting off the supply and draining the tank if removal is required.
For commercial installations, record the valve manufacturer, fixture type, inlet and outlet dimensions, flush volume, and whether the valve is manual or electronic. If the valve is concealed, access-panel requirements and compatible trim are also part of the specification.
For renovation projects, purchasing the toilet and its service parts from a single specialist source can simplify future maintenance. Plumbing Market carries toilets, commercial washroom fixtures, rough-in components, and replacement plumbing parts across recognized brands, helping homeowners and trade buyers match the technical details with the finished washroom design.
A flush valve is a relatively small component, but it has a direct effect on water use, hygiene, and day-to-day reliability. Match the valve to the toilet or flushometer system already in place, and a simple repair can restore the dependable flush a bathroom or commercial washroom needs.
