A shower renovation can look complete on paper until the trim arrives and does not fit the valve behind the wall. This rough in valve guide explains the component that determines how your shower or tub system functions, what trim it can accept, and how confidently the finished installation comes together.

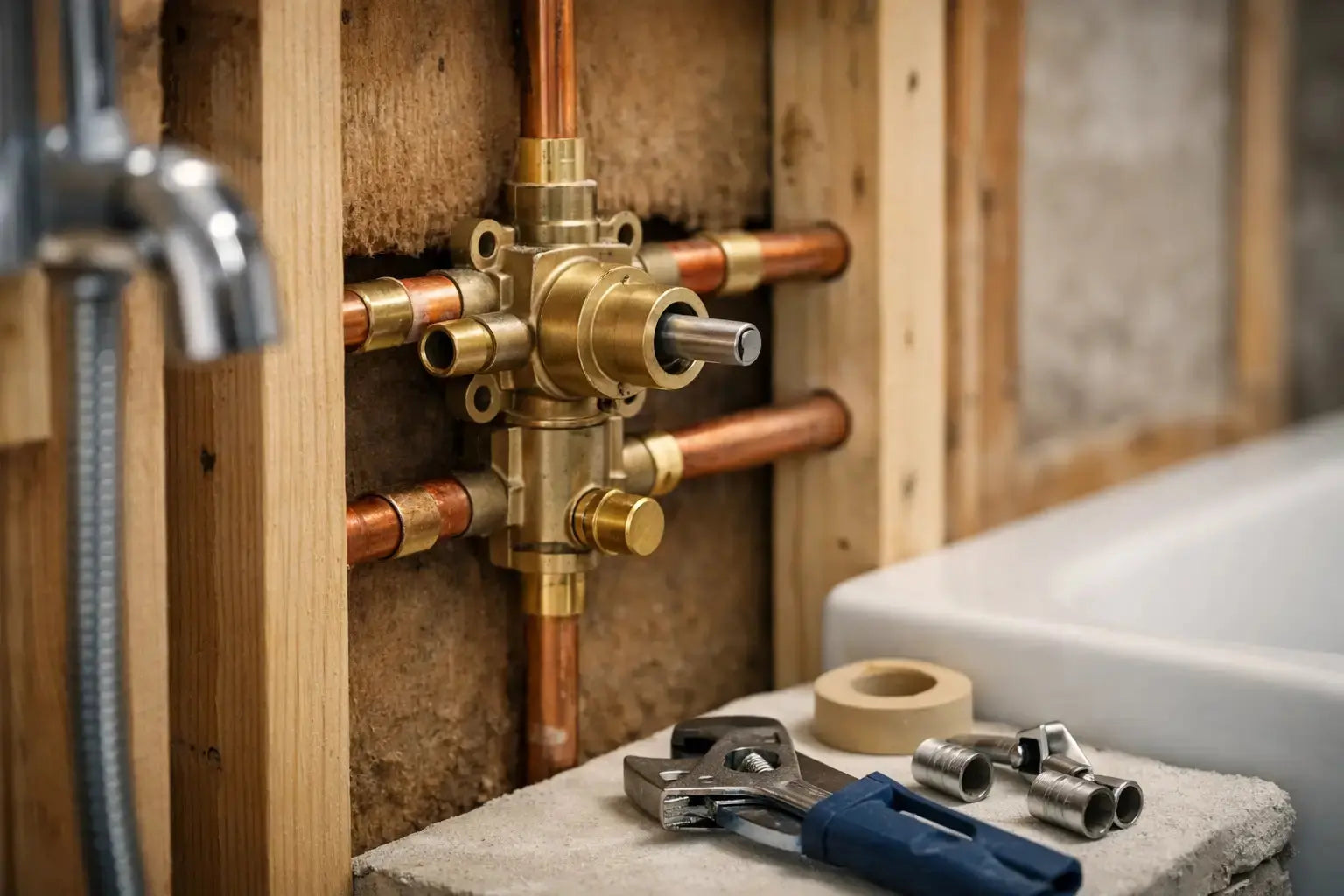

A rough-in valve is installed before wallboard, tile, waterproofing finishes, and decorative trim. It directs hot and cold water to the showerhead, tub spout, hand shower, body sprays, or a combination of outlets. Because it is concealed once the wall is closed, selecting the correct valve at the beginning is one of the most consequential decisions in a bathroom project.
What a Rough-In Valve Does
The rough-in valve is the working core of a shower or tub faucet. It connects to the home’s hot and cold supply lines and regulates water flow and temperature through an internal cartridge. The visible handle, escutcheon plate, showerhead, tub spout, and hand shower are finish trim. They are not interchangeable with every valve body.
For a straightforward shower, the valve may operate one outlet: the showerhead. A tub and shower combination generally requires a valve with a tub outlet and a shower outlet. More elaborate systems may use a separate diverter valve to send water to two or three outlets, such as a rain shower, hand shower, and body sprays.
The valve also helps protect users from sudden temperature changes. Pressure-balancing valves compensate when pressure shifts in the hot or cold supply, such as when a toilet is flushed elsewhere in the house. Thermostatic valves maintain a selected water temperature more precisely and usually require separate volume controls. The appropriate choice depends on the system design, local code requirements, household use, and the desired shower experience.
Rough In Valve Guide: Start With the Finished System
Choose the finished shower configuration before choosing a valve. A single-handle shower trim, for example, needs a compatible pressure-balance or thermostatic rough-in body specified by that trim manufacturer. A three-function shower system may need both a main valve and a matching diverter rough-in.
Brand compatibility matters. Major manufacturers commonly engineer trim collections around proprietary valve platforms, cartridge designs, stem lengths, and mounting arrangements. A Kohler trim is not automatically compatible with a Riobel or Brizo rough-in valve, even when the valve openings appear similar. The safest purchase is a valve and trim combination identified by the manufacturer as compatible, ideally from the same brand and valve family.
This is also where a complete product catalogue is useful. Shopping the rough-in body alongside the trim, showerhead, hand shower, tub spout, and required accessories makes it easier to confirm that every item supports the intended installation. For renovations with a contractor or plumber, provide the exact model numbers before rough plumbing begins.
Select the Correct Valve Type
A pressure-balancing valve is a practical selection for many Canadian residential bathrooms. It uses one handle to adjust temperature and flow together, offers anti-scald protection, and suits a conventional showerhead or tub and shower setup. It is typically the simplest route when the project does not require multiple shower experiences.
A thermostatic valve is often selected for premium showers and multi-outlet systems. It lets the user set a desired temperature, while a separate control adjusts water volume or directs water to particular outlets. This provides more consistent temperature control, especially when multiple fixtures are running. It can, however, require a more involved installation and a higher total component cost.
A diverter valve is not a substitute for the main mixing valve. It is an additional control that routes already mixed water to different outlets. Some diverters allow only one outlet at a time; others support shared functions. Check the manufacturer’s function chart before ordering. A valve rated for three outlets does not always permit all three to run simultaneously.
For a tub and shower combination, confirm that the valve body includes or supports a dedicated tub spout outlet. Also verify whether the tub spout must use a specific connection method, such as copper or threaded pipe. A diverter built into the tub spout and a separate in-wall diverter are different configurations and should not be planned as though they are interchangeable.
Set the Valve at the Right Depth
Correct valve depth is as important as compatibility. Every rough-in body is supplied with an installation guide showing an acceptable finished-wall range. That range is measured from the valve reference point to the face of the final wall, not to the studs or bare drywall.
The finished wall may include cement board, waterproofing membrane, thin-set mortar, tile, and sometimes a backing layer. These materials add up quickly. If the valve is installed too far back, the handle may not engage the cartridge properly and the trim plate may leave a gap. If it sits too far forward, the trim may not seat against the wall or the handle may bind.
Before the plumber secures the body, establish the complete wall build-up. Use the manufacturer’s plaster guard or depth gauge where provided. This plastic guard is more than shipping protection: on many valve systems, it indicates the correct installation plane and helps protect the valve during construction.
For thick stone, large-format tile, or a custom wall assembly, review the trim’s extension options in advance. Some brands offer extension kits, but they only solve limited depth issues and may not be available for every collection. Planning the depth correctly remains the better approach.
Check Connections, Access and Supply Conditions
Rough-in valves are available with different connection styles, including sweat, threaded, PEX, and universal connection options. The best choice depends on the existing plumbing material, the installer’s method, and the valve manufacturer’s approved installation instructions. A qualified plumber should make the final connection decision and pressure-test the assembly before walls are closed.
Service stops are another worthwhile consideration. These small integrated shutoffs allow a plumber to isolate hot and cold water at the valve for cartridge service without shutting water off to the entire home. They can be particularly useful in condominiums, rental properties, and commercial settings where access to a main shutoff may be inconvenient.
Consider water pressure and the number of outlets as well. A multi-function system needs enough flow to perform as expected. A rain shower, hand shower, and body sprays may look compatible on a specification sheet but still feel underpowered if the home has limited pressure, undersized supply lines, or a low-flow water source. Your plumber can assess the available conditions before you commit to a larger system.
Avoid the Most Common Ordering Errors
Most rough-in problems come from ordering components independently without checking the full system. Prevent costly changes by confirming these details before the wall is opened or closed:
- The valve body is explicitly compatible with the selected trim collection and cartridge.
- The number of valve outlets matches the tub, showerhead, hand shower, or body spray configuration.
- A diverter is included when the system needs more than one controlled outlet.
- The installation depth accounts for every finished-wall material.
- The valve connection type suits the supply piping and the installer’s approved method.
- Required parts, including shower arms, elbows, supply elbows, drain components, and tub spouts, are included in the project scope.
Plan the Purchase Around Construction Timing
Order the rough-in valve early. It is needed during the plumbing phase, long before the handle and showerhead are installed. The trim can sometimes be selected later, but only if it remains within the same compatible valve platform. For design-led projects, choosing both at the same time avoids a mismatch when a collection is discontinued or a finish is backordered.
Keep the valve’s installation instructions, model number, and cartridge details with the renovation records. If service is needed years later, this information makes it much easier to source the correct replacement part. Plumbing Market carries rough-in valves, compatible shower trim, tub and shower components, and replacement parts across major plumbing brands, helping keep the selection process focused on complete system compatibility.
The best rough-in valve is rarely the most visible purchase in a bathroom renovation, but it is the one that lets every visible fixture perform as intended. Confirm the system, compatibility, depth, and outlet requirements before tile goes up, and the final trim installation becomes a finishing step rather than a construction setback.
